Can I use 800G OSFP optical modules for 800G QSFP-DD ports?

No, OSFP and QSFP-DD are different size packages, the physical size is not the same, so they are not compatible.

Can different packages be interconnected at the same rate, such as OSFP and QSFP-DD?

OSFP and QSFP-DD are just physical form factors of the modules, as long as the modules are of the same type (e.g., SR4 or DR4), they can be interconnected.

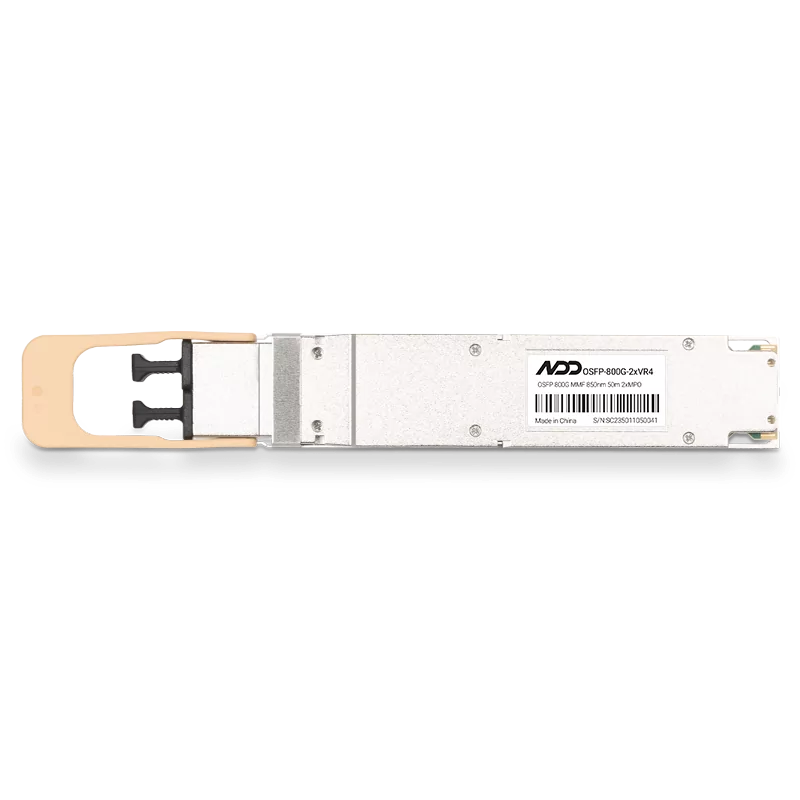

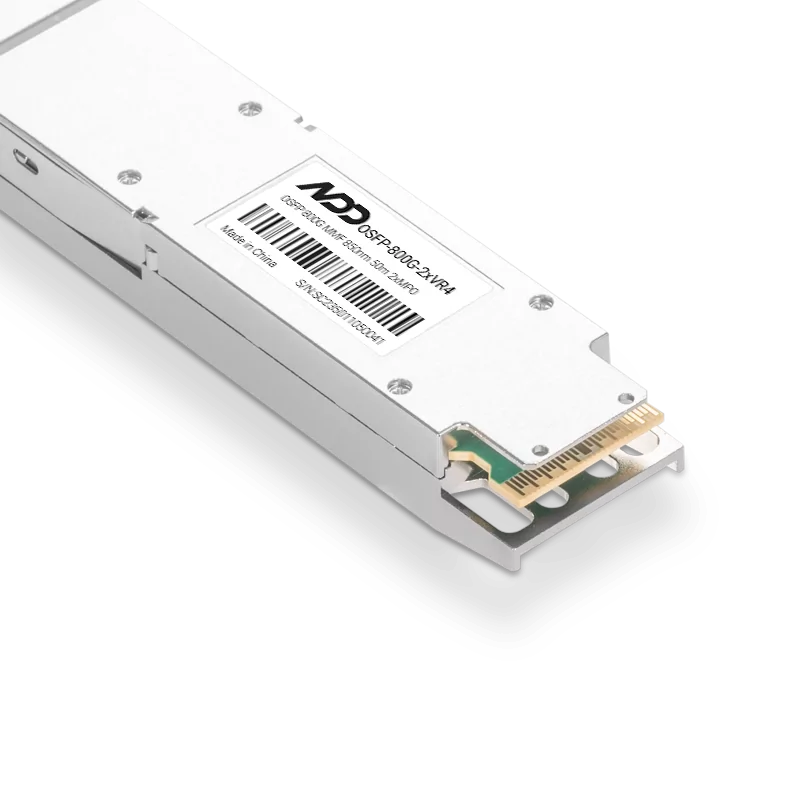

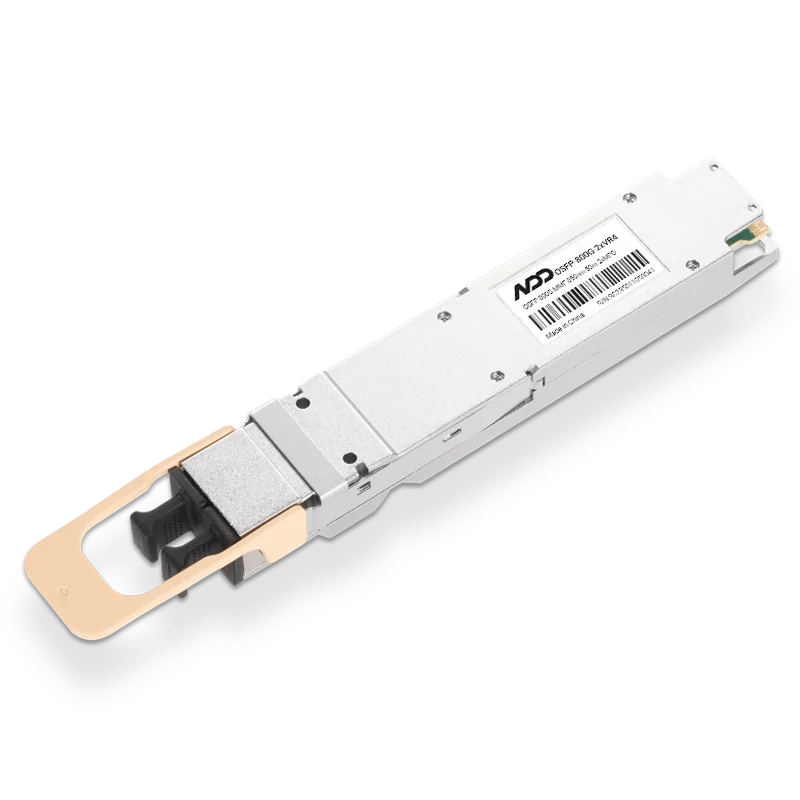

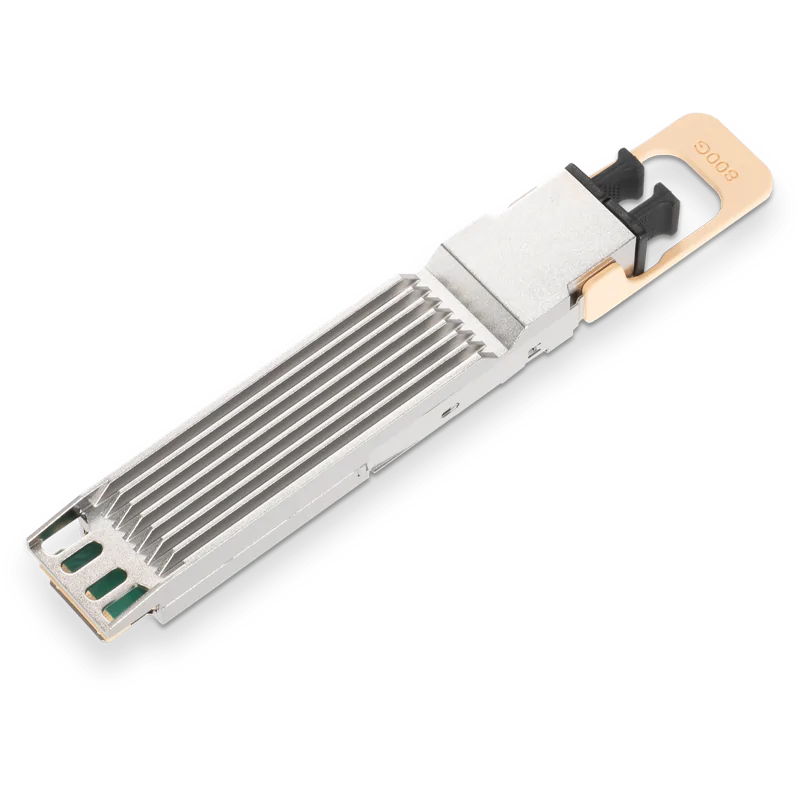

800GBASE-2xVR4 OSFP PAM4 850nm 50m MMF Module for H3C

Click to open expanded view

Global Local Service

Lifetime Technical Support

H3C OSFP800-800G-VR8-MM850-DMPO Compatible 800G OSFP 2xVR4/VR8 850nm 50m PAM4 DOM MPO/MTP MMF Transceiver Module for S9827 Switch

Name: H3C OSFP800-800G-VR8-MM850-DMPO Compatible 800G OSFP 2xVR4/VR8 850nm 50m PAM4 DOM MPO/MTP MMF Transceiver Module for S9827 Switch
Brand: Naddod
SKU: 103095
Price: 739.00 USD
Availability: InStock
Rating: 5.0 (18 reviews)

#103095

Model: OSFP-800G-2xVR4

Sold: 385

In Stock: 175

Transceiver Types:

OSFP-800G-2xSR4 | 100m

OSFP-800G-2xFR4 | 2km

OSFP-800G-2xDR4 | 500m

OSFP-800G-2xXDR4 | 2km

QDD-800G-2xDR4｜500m

OSFP-800G-2xFR4L | 6km

OSFP-800G-2xLR4 | 10km

OSFP-800G-2SR4F | 100m

OSFP-800G-2xDR4F | 500m

OSFP-800G-2xVR4 | 50m

OSFP-800G-2xSR4 | 100m

OSFP-800G-2xFR4 | 2km

OSFP-800G-2xDR4 | 500m

OSFP-800G-2xXDR4 | 2km

QDD-800G-2xDR4｜500m

OSFP-800G-2xFR4L | 6km

OSFP-800G-2xLR4 | 10km

OSFP-800G-2SR4F | 100m

OSFP-800G-2xDR4F | 500m

OSFP-800G-2xVR4 | 50m

Brand:

NVIDIA/Mellanox (Ethernet)

Arista

Cisco

Juniper

Dell

H3C

Generic

NVIDIA/Mellanox (Ethernet)

Arista

Cisco

Juniper

Dell

H3C

Generic

Chip Solutions:

Broadcom DSP

Item Spotlights

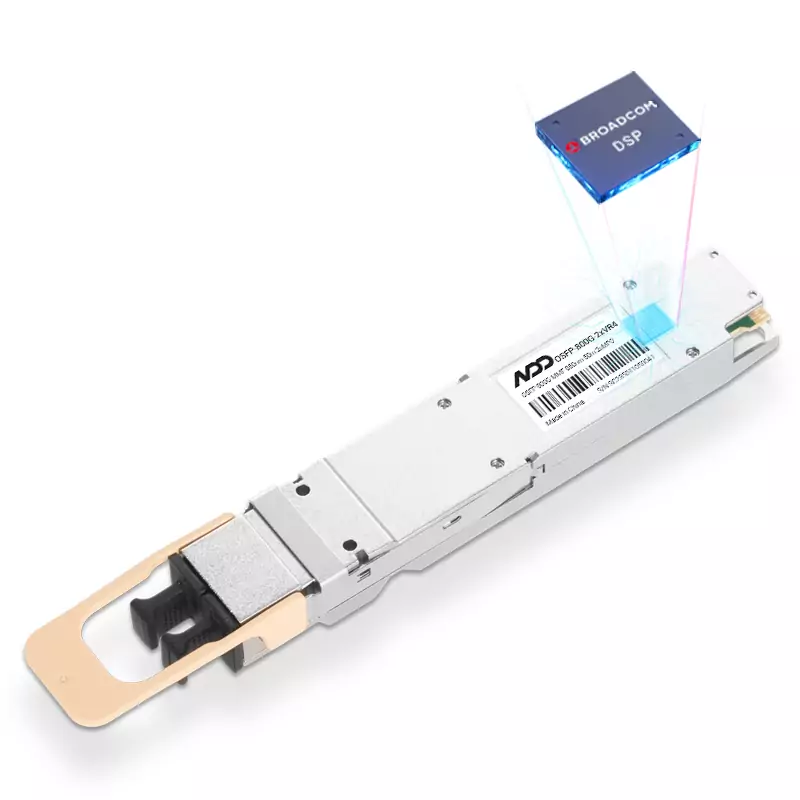

Built-in Broadcom DSP Chip, Max Power Consumption ≤14W.
Provide Professional Compatibility and Parameter Test Reports.
Compliant with Hot Pluggable OSFP MSA Standard.
Compliant with RoHS Environmental Standard (Lead-free).
DDM (Digital Diagnostic Monitoring) Supported.
30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

H3C OSFP800-800G-VR8-MM850-DMPO Compatible 800G OSFP 2xVR4/VR8 850nm 50m PAM4 DOM MPO/MTP MMF Transceiver Module for S9827 Switch

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Resources

Description

H3C OSFP800-800G-VR8-MM850-DMPO Compatible OSFP-800G-2xVR4 OSFP PAM4 Optical Transceiver Module, Support 800GBASE-VR8 (MMF, 850nm, 50m, Dual MTP/MPO-12 APC, DDM)

NADDOD OSFP-800G-2xVR4 is an Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, VR8 multimode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each.The Twin-port VR8 transceiver is a key innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage switch.

Specifications

Form Factor

Twin-port OSFP

Distance

50m

Wavelength

850nm

Connector

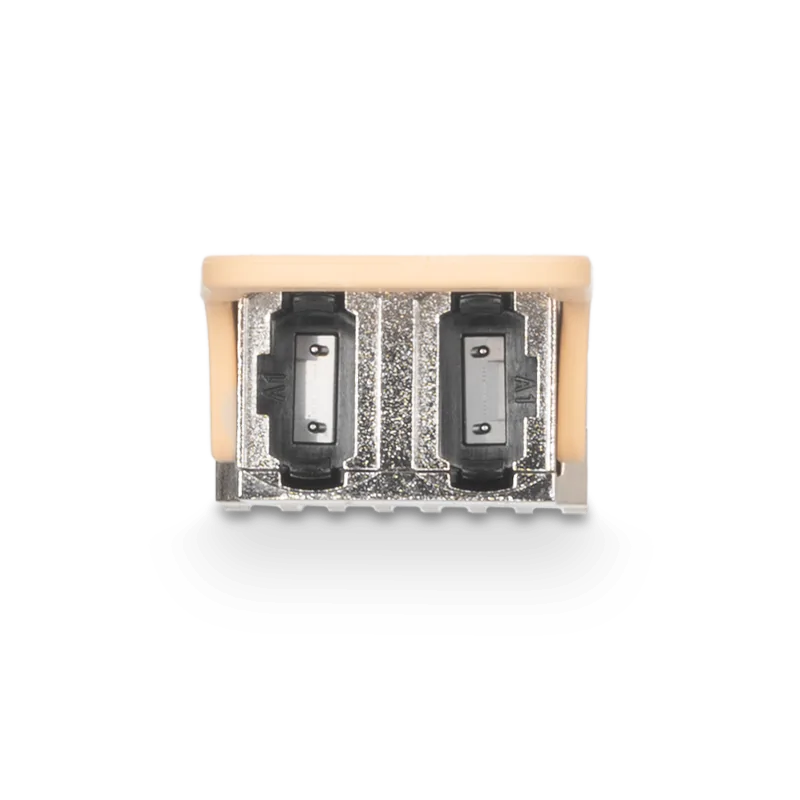

Two MPO-12/APC

Power Consumption

≤14W

Transmitter

VCSEL

Receiver

Media

MMF

Modulation（electrical ）

8x106.25Gb/s PAM4

Modulation（Optical ）

Two ports 4x106.25Gb/s PAM4

Case Temperature(℃)

0 to 70°C (32 to 158°F)

Protocol

800G Ethernet Compliant

Applications

Product Highlights

Questions & Answers

Ask a Question

Can this module be connected to 400G modules?

Yes, this OSFP-800G-2xVR4 optical module can be connected to two 400G VR4 optical modules via two 12-core multimode fiber patch cords.

Can 400G OSFP modules be used for 800G OSFP ports?

Yes, 800G OSFP ports are backward compatible with 400G OSFP as long as the physical form factor is compatible.

My network card is CX6 Q56 200G. Can I use an OSFP-800G-2xVR4 module to connect to a Q56-200G-VR4 module?

OSFP 800G cannot be split into four connections to QSFP56 200G; because OSFP 800G is 100G per lane, while QSFP56 200G is 50G per lane. We recommend using the OSFP-400G-2×VR4 module to connect two Q56-200G-SR4 modules. Alternatively, you can use a CX7 Q112 interface network card with a Q112-400G-VR4 module to downgrade to 200G, then connect to the OSFP 800G module to achieve a four-port configuration.

Resources

OSFP-800G-2xVR4 Datasheet
