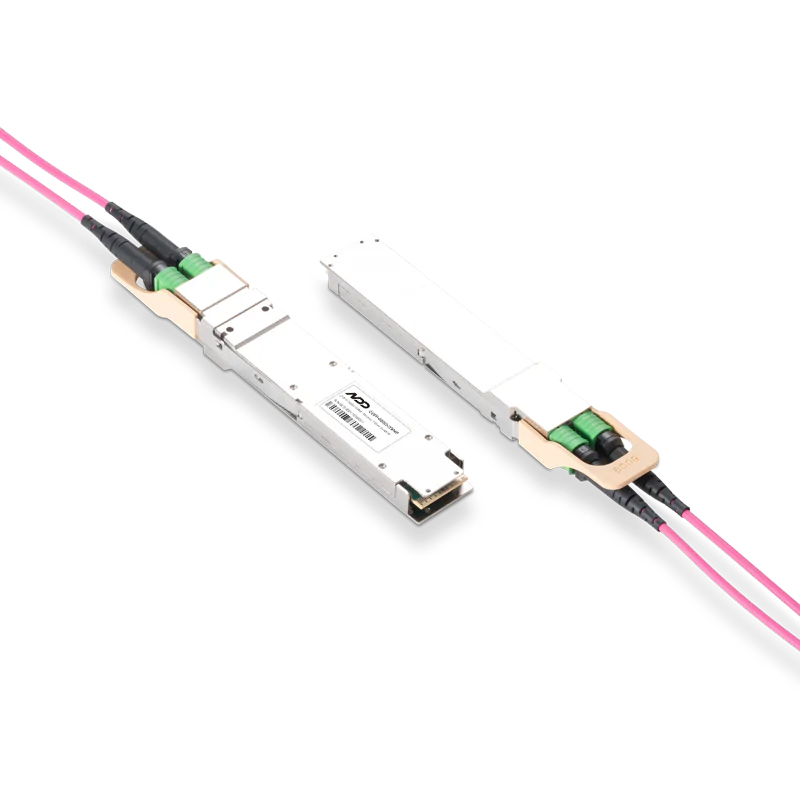

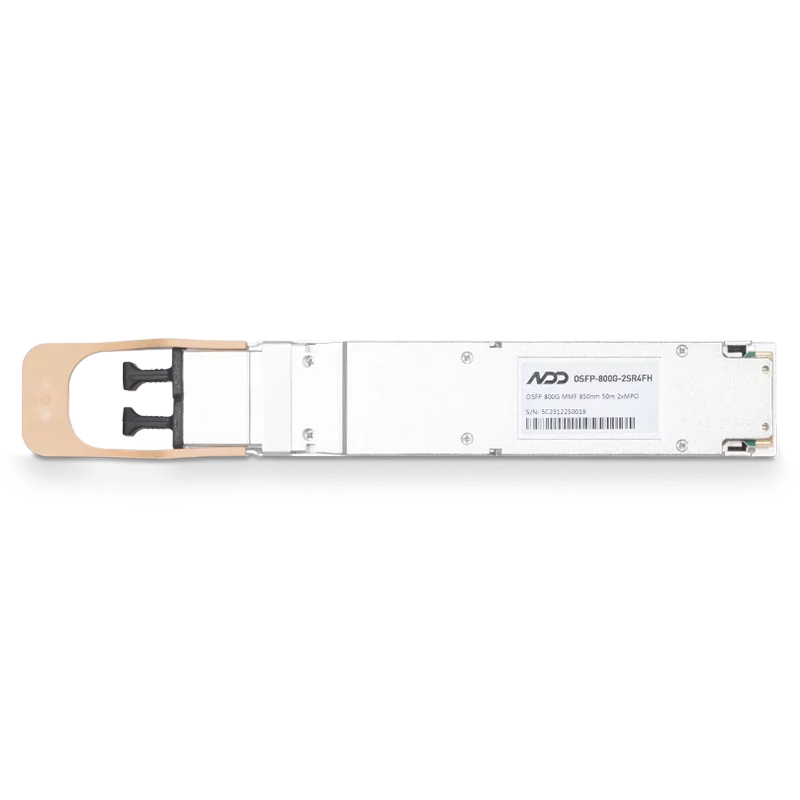

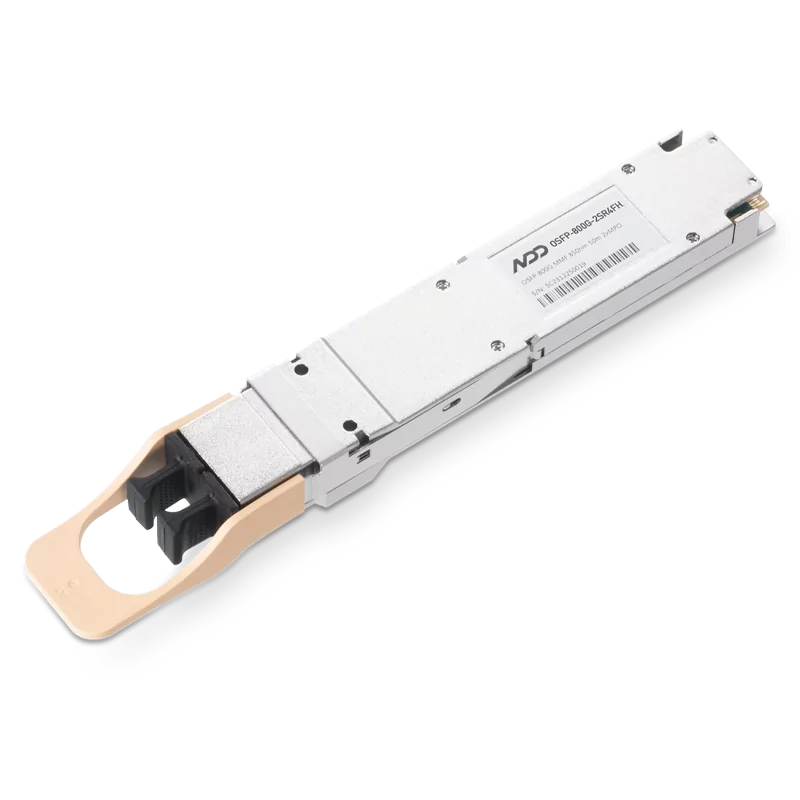

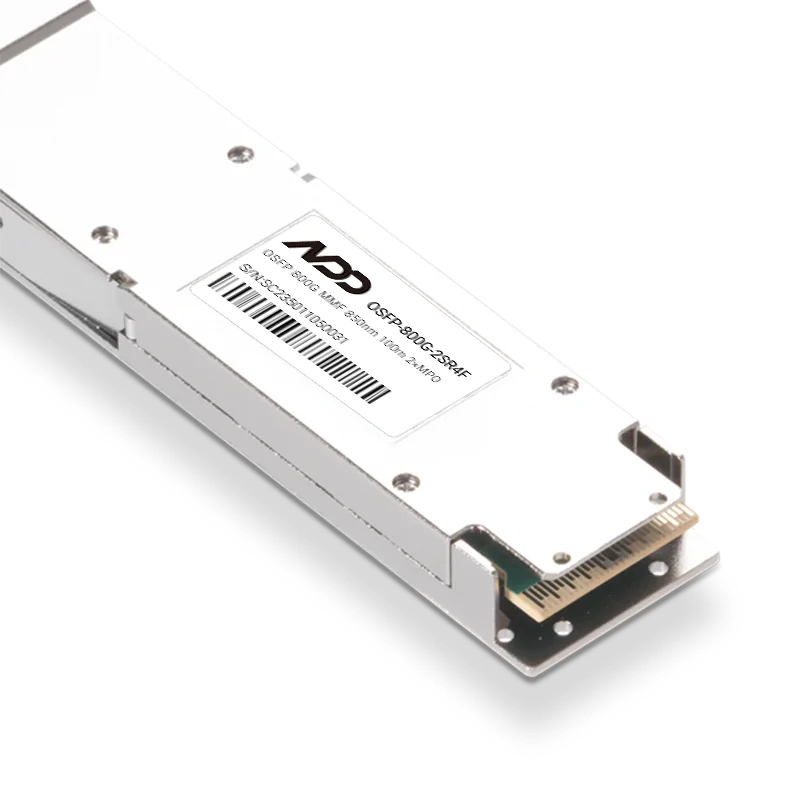

800G OSFP SR8 100m MMF Module for NVIDIA/Mellanox (Flat Top)

Click to open expanded view

Global Local Service

Lifetime Technical Support

NVIDIA/Mellanox Compatible 800G OSFP 2xSR4/SR8 850nm 100m PAM4 DOM MPO/MTP MMF Transceiver Module (Flat Top)

Name: NVIDIA/Mellanox Compatible 800G OSFP 2xSR4/SR8 850nm 100m PAM4 DOM MPO/MTP MMF Transceiver Module (Flat Top)
Brand: Naddod
SKU: 102869
Price: 759.00 USD
Availability: InStock
Rating: 5.0 (18 reviews)

#102869

Model: OSFP-800G-2SR4F

Sold: 14

In Stock: 103

Transceiver Types:

OSFP-800G-2SR4F

OSFP-800G-2SR4F

Brand:

NVIDIA/Mellanox (Ethernet)

Item Spotlights

Provide Professional Compatibility and Parameter Test Reports.
Compliant with Hot Pluggable OSFP MSA Standard.
Compliant with RoHS Environmental Standard (Lead-free).
DDM(Digital Diagnostic Monitoring) Supported.
30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

NVIDIA/Mellanox Compatible 800G OSFP 2xSR4/SR8 850nm 100m PAM4 DOM MPO/MTP MMF Transceiver Module (Flat Top)

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Resources

Description

NVIDIA/Mellanox® Broadcom VCSEL Compatible 800G 2xSR4/SR8 Optical Transceiver Module (Twin-port OSFP, 850nm, 100m, Two MPO-12/APC, DOM, for MMF, Flat Top)

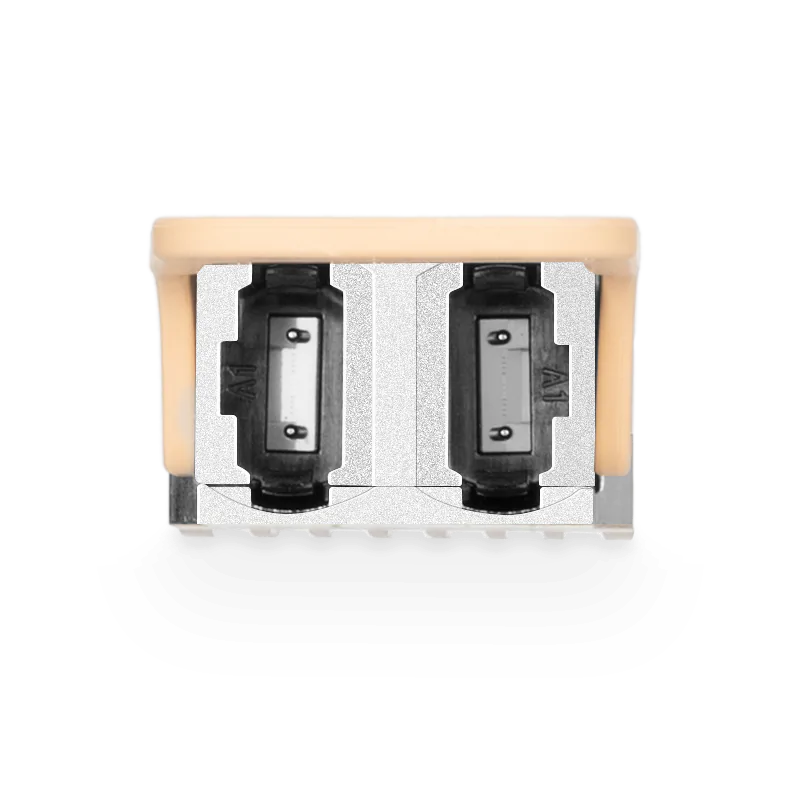

NADDOD OSFP-800G-2SR4F is an Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, 2xSR4/SR8 multimode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each. The parallel multimode, short reach 8-channel (2xSR4/SR8) uses 100G-PAM4 modulation and has a maximum fiber reach of 100-meters using 8 multimode fibers. The 800G OSFP switches require finned-top OSFP shells for extra transceiver cooling. A flat-top version offered for ConnectX-8 systems links.

Specifications

Form Factor

Twin-port OSFP

Distance

100m

Wavelength

850nm

Connector

Two MPO-12/APC

Power Consumption

≤14W

Transmitter

VCSEL

Receiver

Media

MMF

Modulation（electrical ）

8x106.25Gb/s PAM4

Modulation（Optical ）

Two ports 4x106.25Gb/s PAM4

Case Temperature(℃)

0 to 70°C (32 to 158°F)

Protocol

800G Ethernet Compliant

Applications

Product Highlights

Questions & Answers

Ask a Question

What is the difference between Flat top and Finned-top OSFP 800G 2xSR4 optical modules?

The "Flat Top" 800G OSFP module is mainly used in the ConnectX-8 NIC, which have internal heat sinks mounted on top of the cages. The "Finned Top" optical module form factor utilizes a module top design with heat sink fins to increase heat dissipation and improve module performance and reliability in high-temperature environments, and is typically used in air-cooled switches for additional cooling due to the reduced airflow inlet in the switch.

Are the specifications of the OSFP-800G-2xSR4F identical to those of the OSFP-800G-2xSR4? Are they compatible for interconnection?

Yes, these two modules share identical parameter specifications. The difference lies in their heat dissipation methods. They can be connected using two M4MPOA12FB jumpers.
