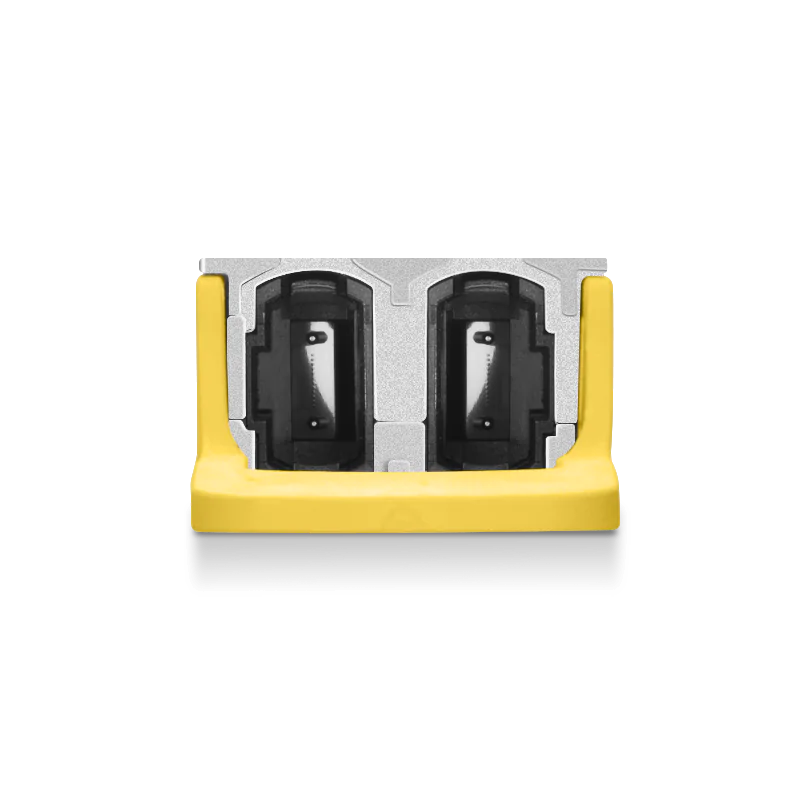

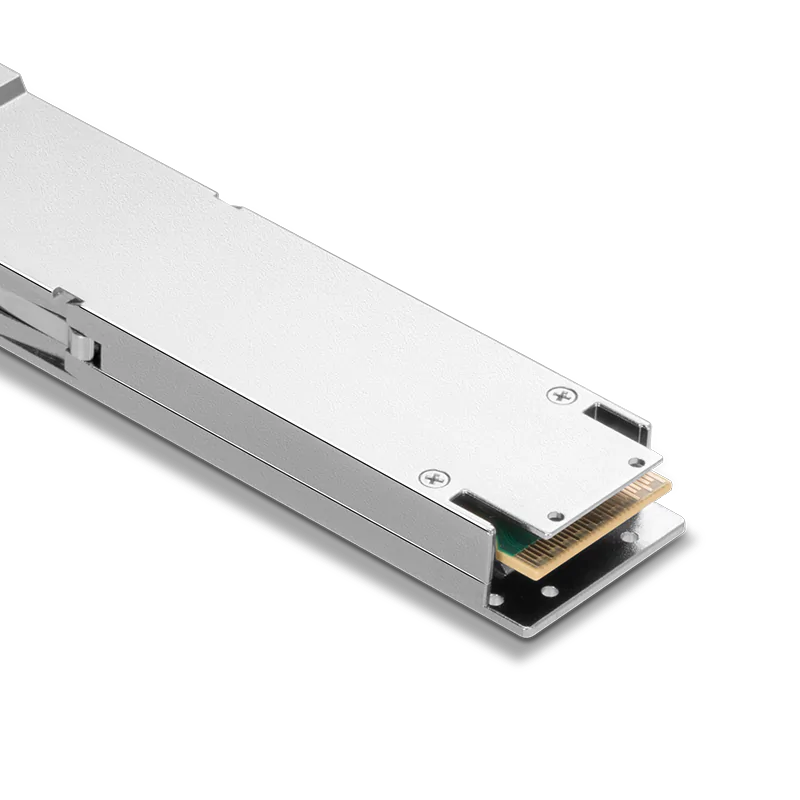

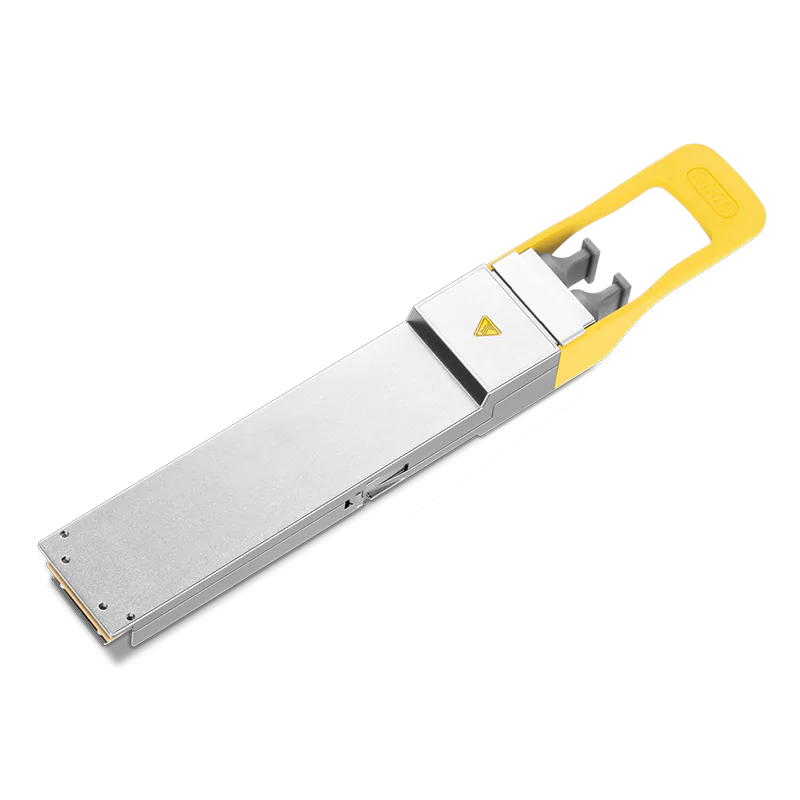

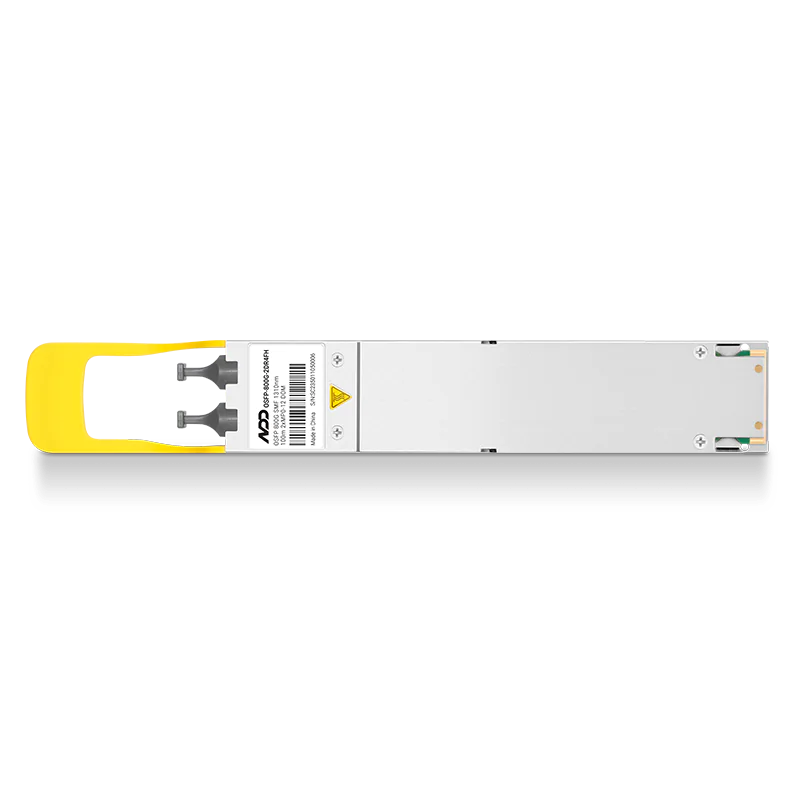

NVIDIA/Mellanox MMS4X00-NS-FLT Compatible 800G 2xDR4/DR8 OSFP PAM4 1310nm 100m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Flat Top DGX H100)

#102602
Model: OSFP-800G-2DR4FH
Sold: 597
In Stock: Available
$ 1368.00
Transceiver Types:
800G SR8｜MMA4Z00-NS
800G SR8｜MMA4Z00-NS-FLT
800G FR8｜MMS4X50-NM
800G DR8｜MMS4X00-NM
800G DR8｜MMS4X00-NS
400G SR4｜MMA4Z00-NS400
400G DR4｜MMS4X00-NS400
400G SR4｜MMA1Z00-NS400
800G DR8｜MMS4X00-NS-FLT
800G SR8｜MMA4Z00-NS
800G SR8｜MMA4Z00-NS-FLT
800G FR8｜MMS4X50-NM
800G DR8｜MMS4X00-NM
800G DR8｜MMS4X00-NS
400G SR4｜MMA4Z00-NS400
400G DR4｜MMS4X00-NS400
400G SR4｜MMA1Z00-NS400
800G DR8｜MMS4X00-NS-FLT
Brand:
NADDOD (InfiniBand)
NADDOD (InfiniBand)

Item Spotlights

  • 100% verified by the original, perfectly compatible with NVIDIA InfiniBand systems.
  • Tested for compatibility with multiple firmware versions, compliant with IBTA Industrial BER standards.
  • Free test environment and samples are available to experience the high-quality product performance.
  • Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
800G OSFP DR8 100m MMS4X00-NS-FLT SMF InfiniBand NDR Module for Mellanox
NVIDIA/Mellanox MMS4X00-NS-FLT Compatible 800G 2xDR4/DR8 OSFP PAM4 1310nm 100m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Flat Top DGX H100)
NADDOD
Specifications
Applications
Questions & Answers
Resources
Specifications
Applications
Questions & Answers
Resources
Description

NVIDIA/Mellanox® MMS4X00-NS-FLT Compatible 800G 2xDR4/DR8 InfiniBand NDR Optical Transceiver Module(Twin-port OSFP, 1310nm, 100m, Two MPO-12/APC, DOM, for SMF, Flat Top)

NADDOD OSFP-800G-2xDR4FH Optical Transceiver Module is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 100G-PAM4 modulation and has a maximum fiber reach of 100-meters using 8 single mode fibers. The Twin-port 2xDR4/DR8 transceiver is a key innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage. The OSFP-800G-2xDR4FH is used in liquid-cooled and DGX-H100 systems.

Specifications
Form Factor
Twin-port OSFP
Distance
100m
Wavelength
1310nm
Connector
Two MPO-12/APC
Power Consumption
≤16.5W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation（electrical)
8x106.25Gb/s PAM4
Modulation（Optical）
Two ports 4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
IB NDR,800G Ethernet Compliant
Applications
Questions & Answers
Ask a Question
Q:
What is the difference between Flat top and Finned-top OSFP 800G 2xDR4 optical modules?
A:
The "Flat Top" 800G OSFP module is mainly used in the DGX H100's 800G Twin-port OSFP cages, which have internal heat sinks mounted on top of the cages, thus requiring the use of a flat-top optical module in the DGX H100; the "Finned Top" optical module form factor utilizes the top of the component design with heat sink fins The "Finned Top" optical module form factor utilizes a module top design with heat sink fins to increase heat dissipation and improve module performance and reliability in high-temperature environments, and is typically used in Quantum-2 air-cooled switches for additional cooling due to the reduced airflow inlet in the switch.
Q:
What kind of optical fiber do I need to use with the 800G Twin-Port NDR 2xDR4 optical module?
A:
When the connection rate of both devices is 2x400G-2x400G, it is paired with two OS2 MPO-12/APC patch cords, and the corresponding NADDOD model is S2MPOA12FB.
Resources
OSFP-800G-2DR4FH Datasheet
