Can I use 800G OSFP optical modules for 800G QSFP-DD ports?

No, OSFP and QSFP-DD are different size packages, the physical size is not the same, and they are not compatible.

Can modules with the same rate and different packages be interconnected, such as OSFP and QSFP-DD?

OSFP and QSFP-DD are just the physical form factor of the modules, as long as the modules belong to the same type (e.g. both DR4 or FR4), they can be interconnected.

800GBASE-FR8 OSFP 1310nm 2km SMF InfiniBand NDR Module for Mellanox

Click to open expanded view

Global Local Service

Lifetime Technical Support

Mellanox MMS4X50-NM Compatible 800G 2xFR4/FR8 OSFP PAM4 1310nm 2km DOM Two LC Duplex InfiniBand NDR Transceiver Module for SMF (Finned Top)

Name: Mellanox MMS4X50-NM Compatible 800G 2xFR4/FR8 OSFP PAM4 1310nm 2km DOM Two LC Duplex InfiniBand NDR Transceiver Module for SMF (Finned Top)
Brand: Naddod
SKU: 101638
Price: 1799.00 USD
Availability: InStock
Rating: 5.0 (18 reviews)

#101638

Model: OSFP-800G-2xFR4H

Sold: 8979

In Stock: 2332

$ 1799.00

Transceiver Types:

800G SR8｜MMA4Z00-NS

800G SR8｜MMA4Z00-NS-FLT

800G FR8｜MMS4X50-NM

800G DR8｜MMS4X00-NM

800G DR8｜MMS4X00-NS

400G SR4｜MMA4Z00-NS400

400G DR4｜MMS4X00-NS400

400G SR4｜MMA1Z00-NS400

800G SR8｜MMA4Z00-NS

800G SR8｜MMA4Z00-NS-FLT

800G FR8｜MMS4X50-NM

800G DR8｜MMS4X00-NM

800G DR8｜MMS4X00-NS

400G SR4｜MMA4Z00-NS400

400G DR4｜MMS4X00-NS400

400G SR4｜MMA1Z00-NS400

Brand:

NADDOD (InfiniBand)

Item Spotlights

100% verified by the original, perfectly compatible with NVIDIA QM9700/9790 devices.
Tested for compatibility with multiple firmware versions, compliant with IBTA Industrial BER standards.
Free test environment and samples are available to experience the high-quality product performance.
Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.
30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Mellanox MMS4X50-NM Compatible 800G 2xFR4/FR8 OSFP PAM4 1310nm 2km DOM Two LC Duplex InfiniBand NDR Transceiver Module for SMF (Finned Top)

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Description

NVIDIA/Mellanox® Compatible 800G 2xFR4/FR8 InfiniBand NDR Optical Transceiver Module(Twin-port OSFP, 1310nm, 2km, Two LC Duplex, DOM, for SMF, Finned Top)

NADDOD OSFP-800G-2xFR4H Optical Transceiver Module is designed for 800GBASE throughput up to 2km over single-mode fiber (SMF) with dual duplex LC connectors. The OSFP-800G-2xFR4H can convert 8-channel 106.25Gb/s electrical data to 8-channel 106.25Gb/s optical signals. Similarly, it optically converts 8-channel 106.25Gb/s optical signals to 8-channel electrical data output on the receiver side. It has been designed to withstand the maximum range of external operating conditions including temperature, humidity and EMI. The OSFP-800G-2xFR4H Optical Transceiver is a high performance, cost effective Module for optical data communication applications supporting 800G InfiniBand and Ethernet.

Specifications

Form Factor

OSFP

Distance

2km

Wavelength

1310nm

Connector

Dual Duplex LC

Power Consumption

≤16W

Transmitter

EML

Receiver

Media

SMF

Modulation（electrical ）

8x106.25Gb/s PAM4

Modulation（Optical ）

Two ports 4x106.25Gb/s PAM4

Case Temperature(℃)

0~70°C(32 to 158°F)

Protocol

IB NDR,800G Ethernet Compliant

Applications

Product Highlights

800G FR8 Breaks Distance Limits for Data Transmission in Hyperscale Data Centers

First to market in October 2023, NADDOD 800G OSFP FR8 unleashes extreme performance from its highly sophisticated design.

Excelling in Large-scale Data Centers with 512 Nodes or More, Effectively Improving System Reliability

Why NADDOD

Module Availability

Worry-Free - Rigorous authentic testing!
Multi-version Device Compatibility

Multi-Version - Easy adaptation for each module!
High-Performance

Actual Test Data-Better results intuitively!

Our Approach

Test scene

Based on the experience in high-speed optical module design, NADDOD 800G OSFP FR8 modules use state-of-the-art thermal techniques to maintain superior operation in high-density, large-scale cluster settings, effectively averting overheating problems that could impact link stability.

Test result

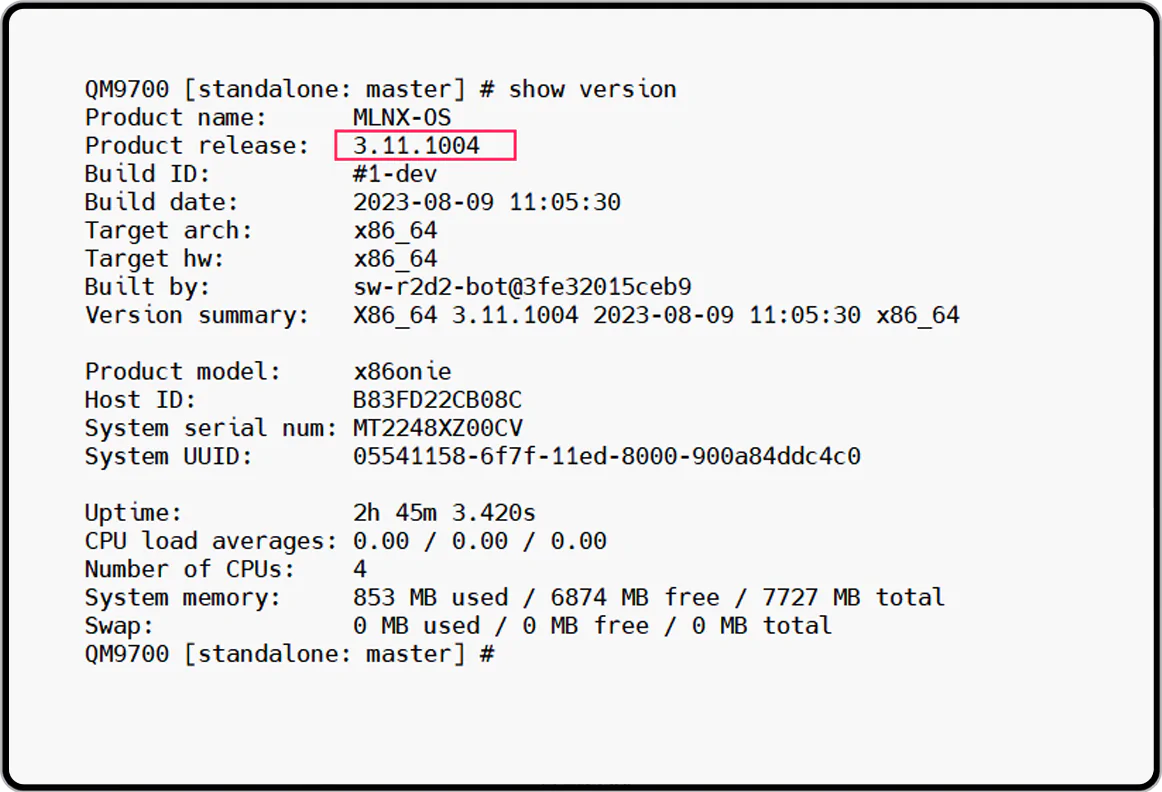

MQM9700-NS2F Version:3.11.1004

MQM9790-NS2F Version:31.2012.1068

Multi-Version

Switch1 Testing
Switch2 Testing

Multi-Version Testing

NADDOD 800G OSFP FR8 modules undergo extensive and rigorous testing across multiple versions to ensure compatibility and long-term stability with a wide range of hardware and software configurations.

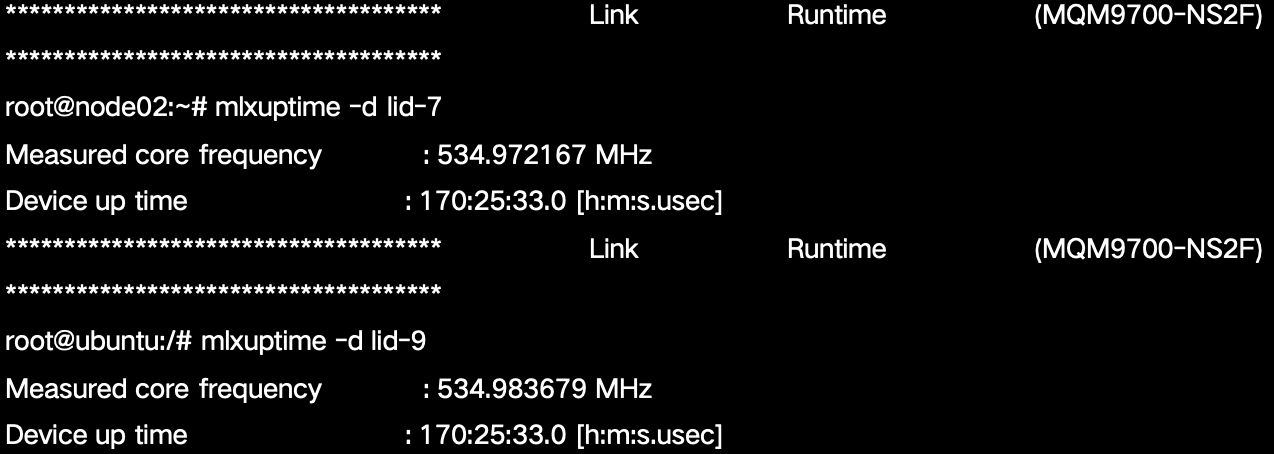

Connectivity

Switch1 Testing
Switch2 Testing

Connectivity Testing

The optical module establishes a reliable connection between devices and demonstrates robust performance. Throughout the entire testing phase, both device ports consistently maintained optimal operating conditions, with no errors or interruptions observed.

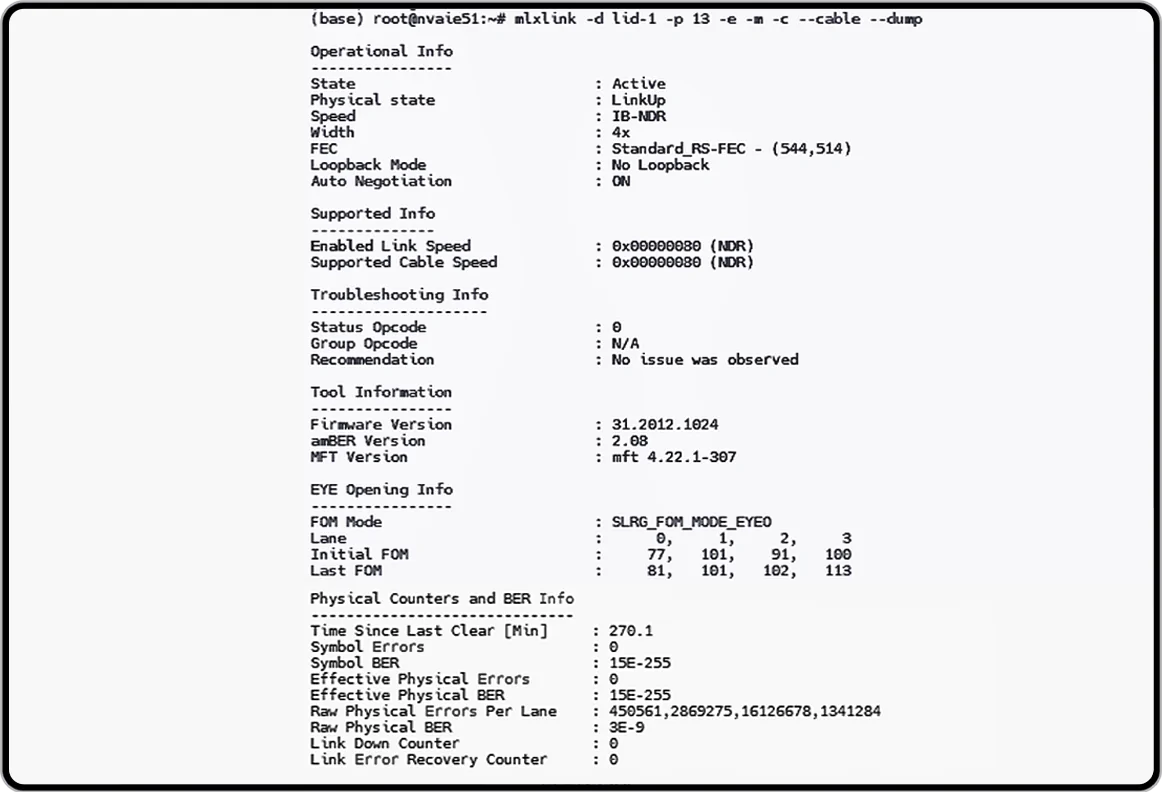

BER

Switch1 Testing
Switch2 Testing

BER Testing

NADDOD optical module exhibits a low bit error rate (BER). During LL FEC (272,257) testing, the 800G OSFP FR8 module demonstrates a relatively consistent BER with NVIDIA's original specifications (maintaining a BER around -8~-10) before error correction, while achieving near-zero BER after error correction. Maintaining a low BER helps to avoid link instability caused by high error rates, ensuring the stability of cluster performance and large-scale model training. This contributes to simplifying customer operations and maintenance while reducing costs.

Questions & Answers

Ask a Question

Can I use only one port of the 800G dual-port NDR 2xFR4 optical module?

Yes, if only one of the ports is used, the rate is 400G.

What are the advantages of Finned Top optical modules?

"Finned top" refers to the design of the top of the module with finned tops, which increases the heat dissipation capacity and improves the performance and reliability of the module in high temperature environments. The fins are usually arranged in a thin sheet-like structure, similar to a heat sink, to increase the surface area for better heat dissipation.

Can this module be connected to 400G modules?

Yes, this OSFP-800G-2xFR4H optical module can be connected to two 400G FR4 optical modules via two single-mode fiber patch cables.
