What are the heat dissipation methods of the NDR module?

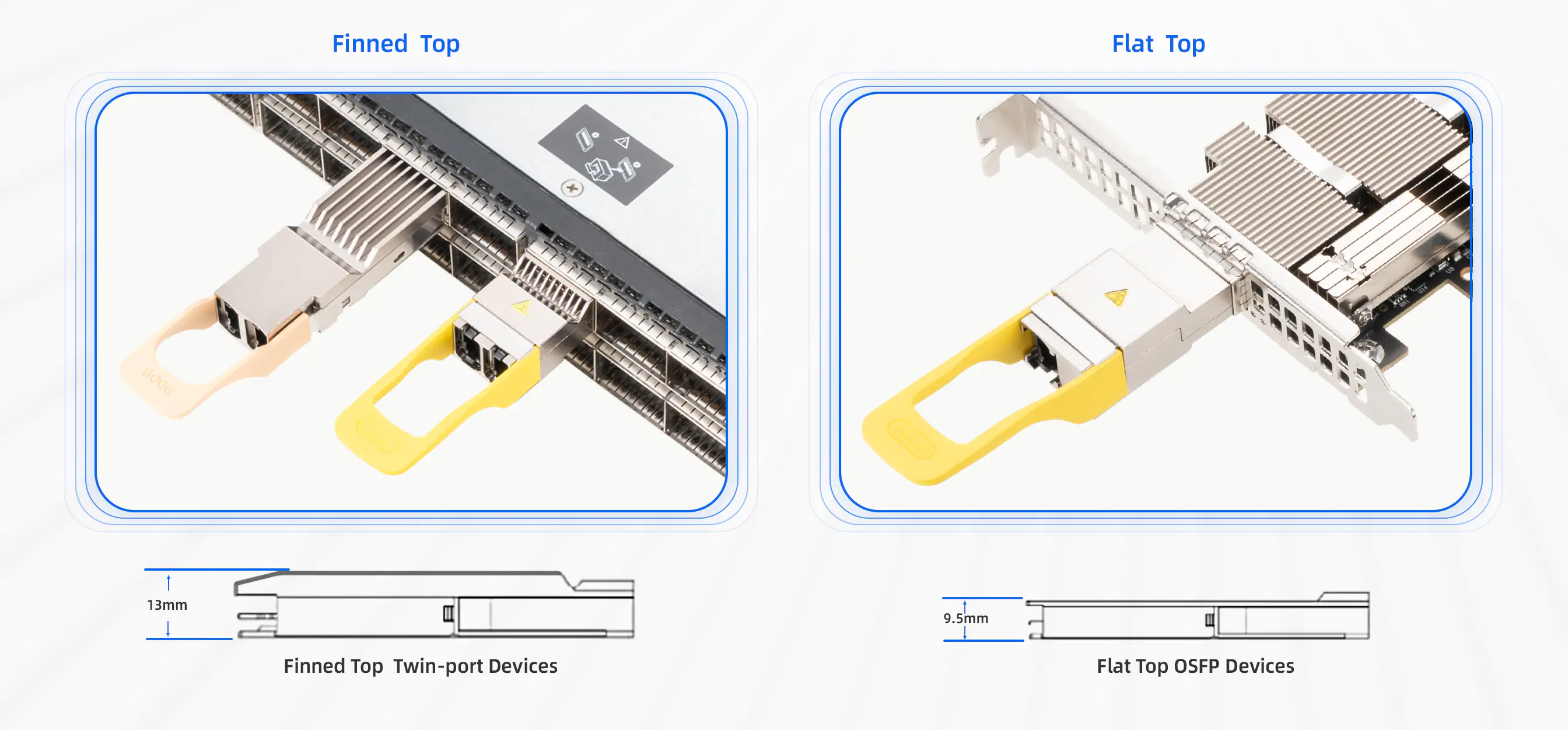

One is with "Finned Top" and the other is "Flat Top"; Generally speaking, the "Flat Top" module is mainly used on the NIC side, because the thickness of the NIC is limited. The "Finned Top" module has a module top design with heat dissipation fins, which can increase heat dissipation capacity and improve module performance and reliability in high-temperature environments. It is usually used in Quantum-2 and Spectrum-4 air-cooled switches.

What are the differences between OSFP-800G-2xSR4H and OSFP-800G-2DR4LH?

OSFP-800G-2xSR4H has a transmission distance of 100m and is typically used for 800G OSFP port switches. It can be connected to the opposite end of an 800G OSFP port switch or a 400G/200G OSFP ConnectX-7 port NIC to meet branching applications such as one-to-two or one-to-four connections. OSFP-800G-2DR4LH has a transmission distance of 500m and is usually used for interconnecting two 800G OSFP port switches.

Can this module be compatible with the NVIDIA QM9700 switch, and can you provide the corresponding test report?

Our product is perfectly compatible with NVIDIA QM9700/9790 devices. It undergoes 100% testing and inspection before shipment, and we can provide the corresponding test documentation.

800GBASE-DR8 OSFP 1310nm 100m SMF InfiniBand NDR Module for Mellanox

Click to open expanded view

Global Local Service

Lifetime Technical Support

NVIDIA/Mellanox MMS4X00-NS Compatible 800G 2xDR4/DR8 OSFP PAM4 1310nm 100m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Finned Top)

Name: NVIDIA/Mellanox MMS4X00-NS Compatible 800G 2xDR4/DR8 OSFP PAM4 1310nm 100m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Finned Top)
Brand: Naddod
SKU: 101945
Price: 1399.00 USD
Availability: InStock
Rating: 5.0 (18 reviews)

#101945

Model: OSFP-800G-2xDR4H

Sold: 3895

In Stock: 362

$ 1399.00

Transceiver Types:

800G SR8｜MMA4Z00-NS

800G SR8｜MMA4Z00-NS-FLT

800G FR8｜MMS4X50-NM

800G DR8｜MMS4X00-NM

800G DR8｜MMS4X00-NS

400G SR4｜MMA4Z00-NS400

400G DR4｜MMS4X00-NS400

400G SR4｜MMA1Z00-NS400

800G SR8｜MMA4Z00-NS

800G SR8｜MMA4Z00-NS-FLT

800G FR8｜MMS4X50-NM

800G DR8｜MMS4X00-NM

800G DR8｜MMS4X00-NS

400G SR4｜MMA4Z00-NS400

400G DR4｜MMS4X00-NS400

400G SR4｜MMA1Z00-NS400

Brand:

NADDOD (InfiniBand)

Item Spotlights

100% verified by the original, perfectly compatible with NVIDIA QM9700/9790 devices.
Tested for compatibility with multiple firmware versions, compliant with IBTA Industrial BER standards.
Free test environment and samples are available to experience the high-quality product performance.
Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.
30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

NVIDIA/Mellanox MMS4X00-NS Compatible 800G 2xDR4/DR8 OSFP PAM4 1310nm 100m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Finned Top)

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Description

NVIDIA/Mellanox® MMS4X00-NS Compatible 800G 2xDR4/DR8 InfiniBand NDR Optical Transceiver Module(Twin-port OSFP, 1310nm, 100m, Two MPO-12/APC, DOM, for SMF, Finned Top)

NADDOD OSFP-800G-2xDR4H Optical Transceiver Module is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 100G-PAM4 modulation and has a maximum fiberreach of 100-meters using 8 single mode fibers. The Twin-port 2xDR4/DR8 transceiver is a key innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage. The OSFP-800G-2xDR4H is used in Quantum-2 and Spectrum-4 air-cooled switches to switches, ConnectX-7 and BlueField-3 DPUs.

Specifications

Form Factor

Twin-port OSFP

Distance

100m

Wavelength

1310nm

Connector

Two MPO-12/APC

Power Consumption

≤16W

Transmitter

EML

Receiver

Media

SMF

Modulation（electrical）

8x106.25Gb/s PAM4

Modulation（Optical）

Two ports 4x106.25Gb/s PAM4

Case Temperature(℃)

0~70°C(32 to 158°F)

Protocol

IB NDR,800G Ethernet Compliant

Applications

Product Highlights

800G DR8 Delivers Reliable Long-Distance Solutions for Data Center Connectivity

Embedded with Broadcom DSP chip, NADDOD 800G OSFP DR8 provides greater stability, unparalleled performance and ensures high quality signal transmission.

Exploring More Diverse Solutions to Achieve Greater Stability and Significantly Enhanced Performance

Why NADDOD

Module Availability

Worry-Free - Rigorous authentic testing!
Multi-version Device Compatibility

Multi-Version - Easy adaptation for each module!
High-Performance

Actual Test Data-Better results intuitively!

Our Approach

Test scene

NADDOD features high-speed optical module design expertise and 800G OSFP DR8 utilizes advanced thermal management techniques to ensure optimal performance in high-density, large-scale cluster environments. This effectively prevents overheating issues from impacting link stability.

Test result

QM9700 Version: 3.11.3002

MCX75310AAS-NEAT Version: 28.40.1000

Multi-Version

Switch Side Testing

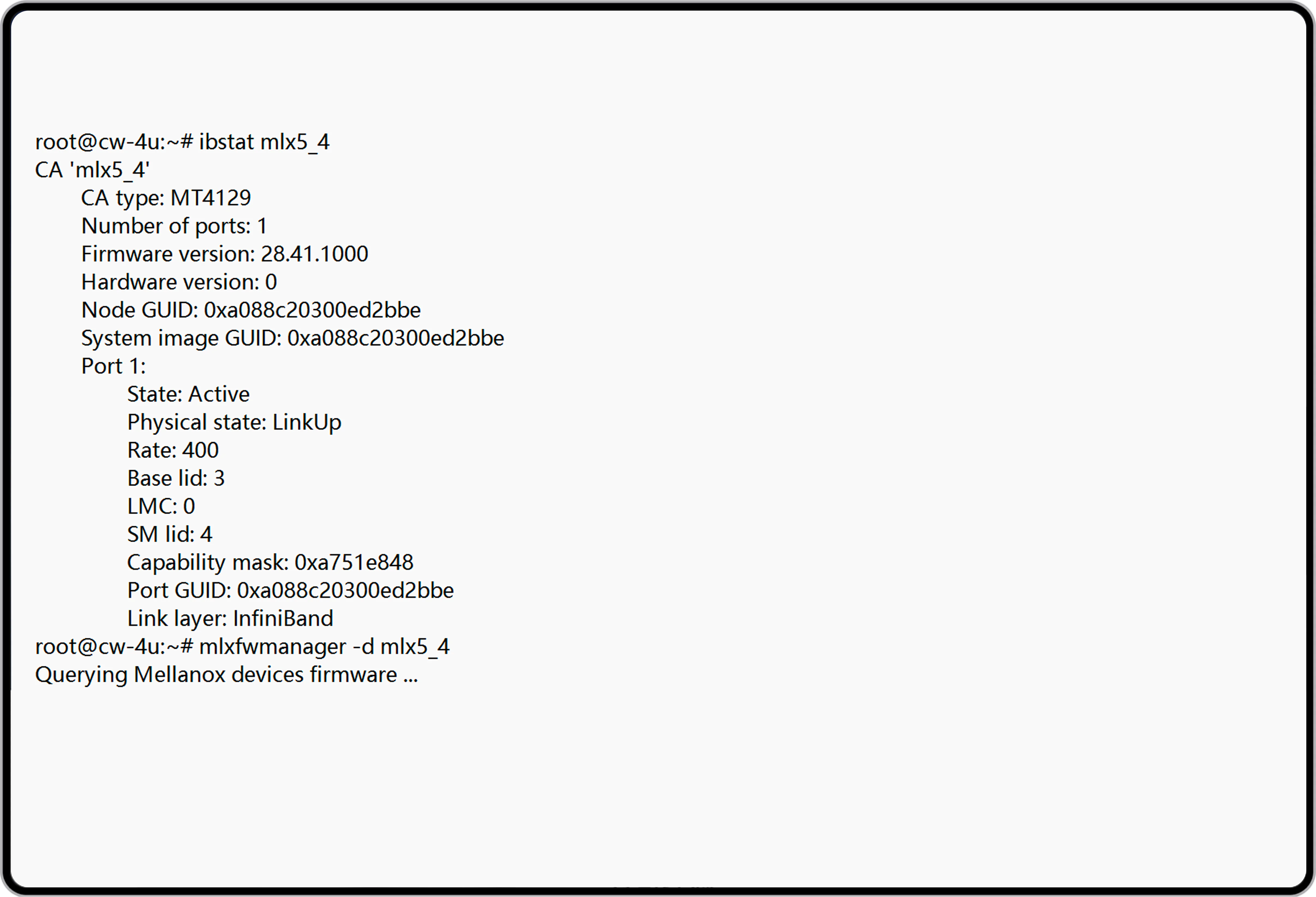

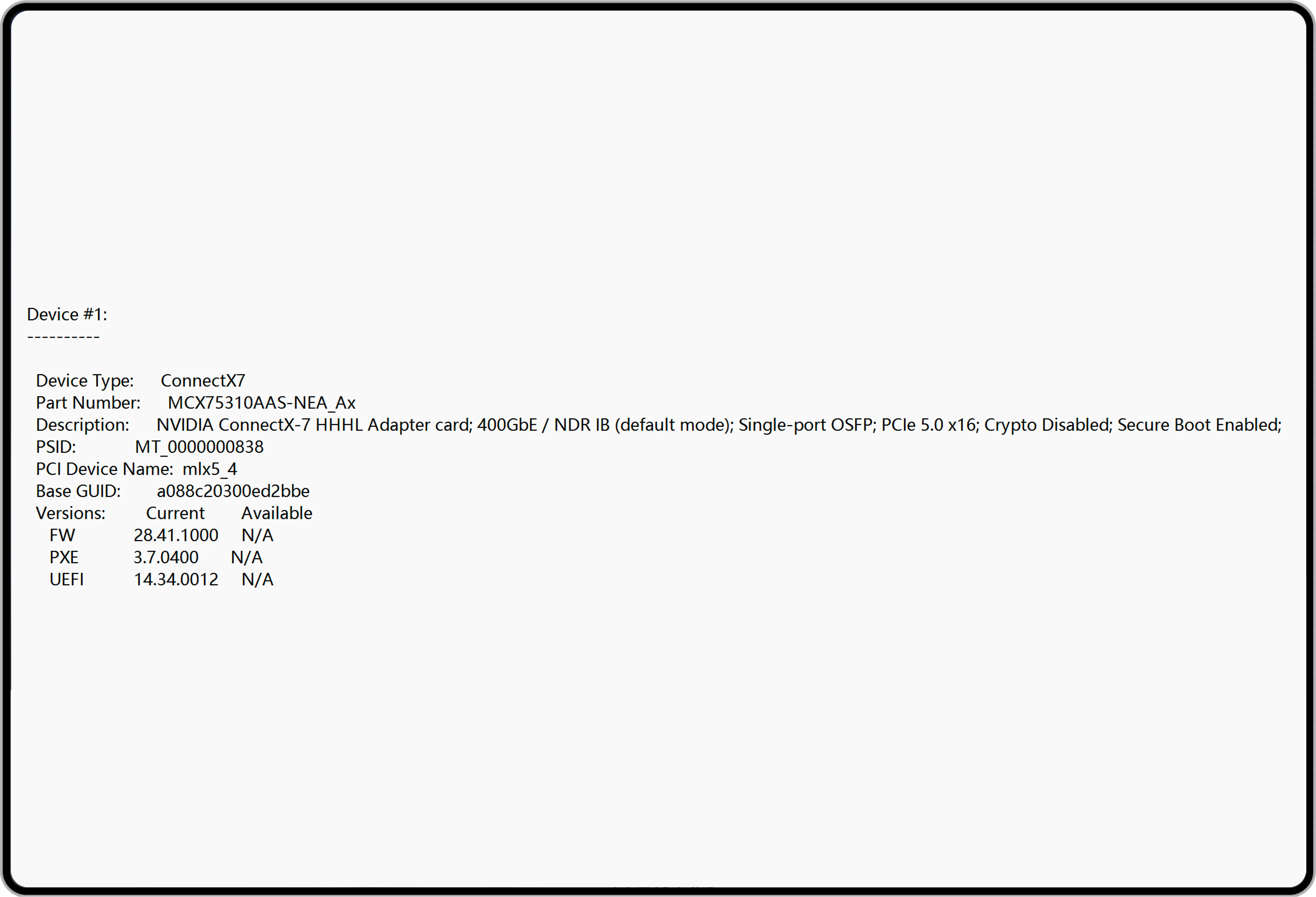

NIC Side Testing

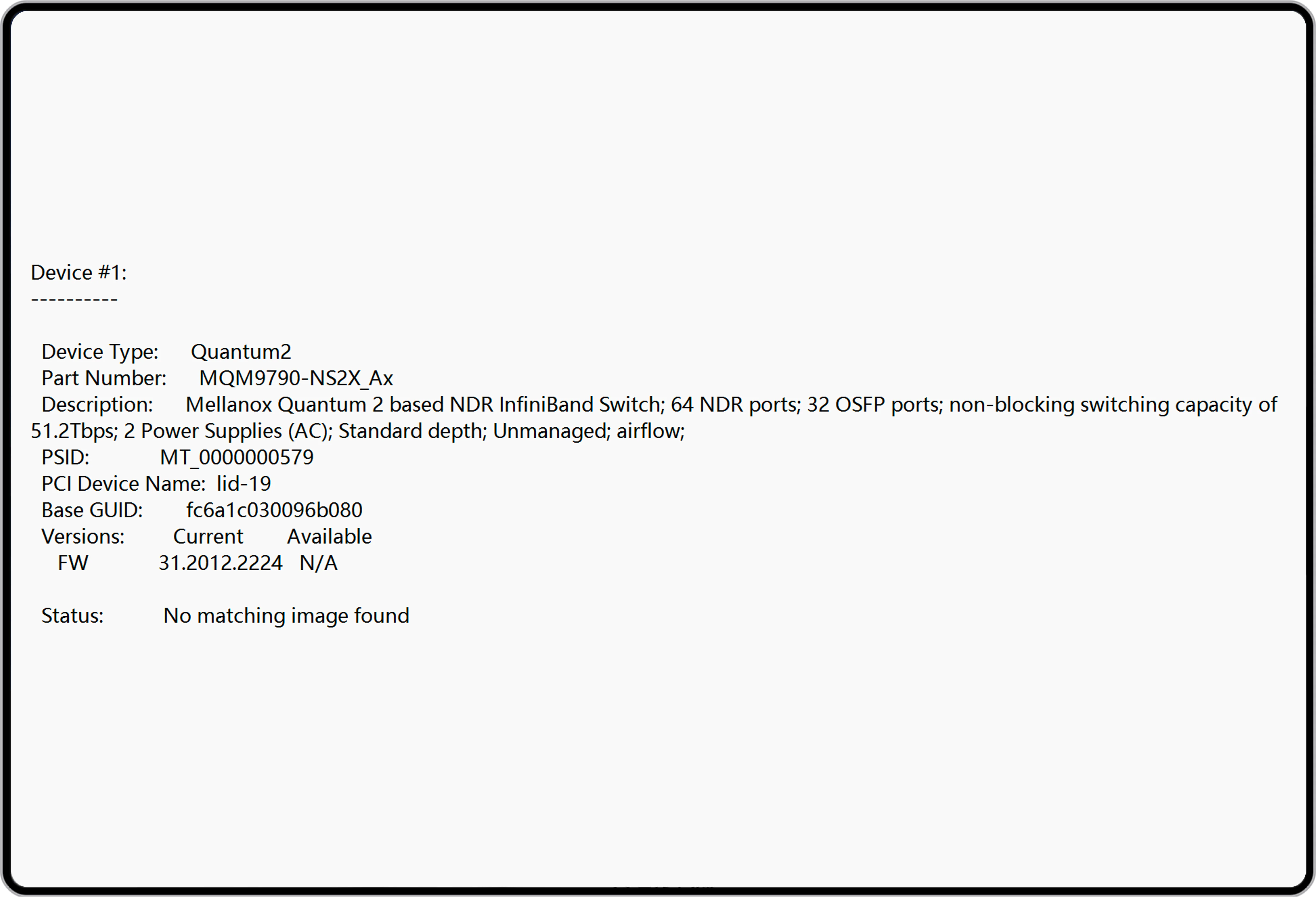

Multi-Version Testing

NADDOD 800G OSFP DR8 is rigorously tested to ensure compatibility and long-term stability with a wide range of hardware and software. Reducing module incompatibility due to firmware upgrades, providing reliable connectivity and superior performance.
Connectivity

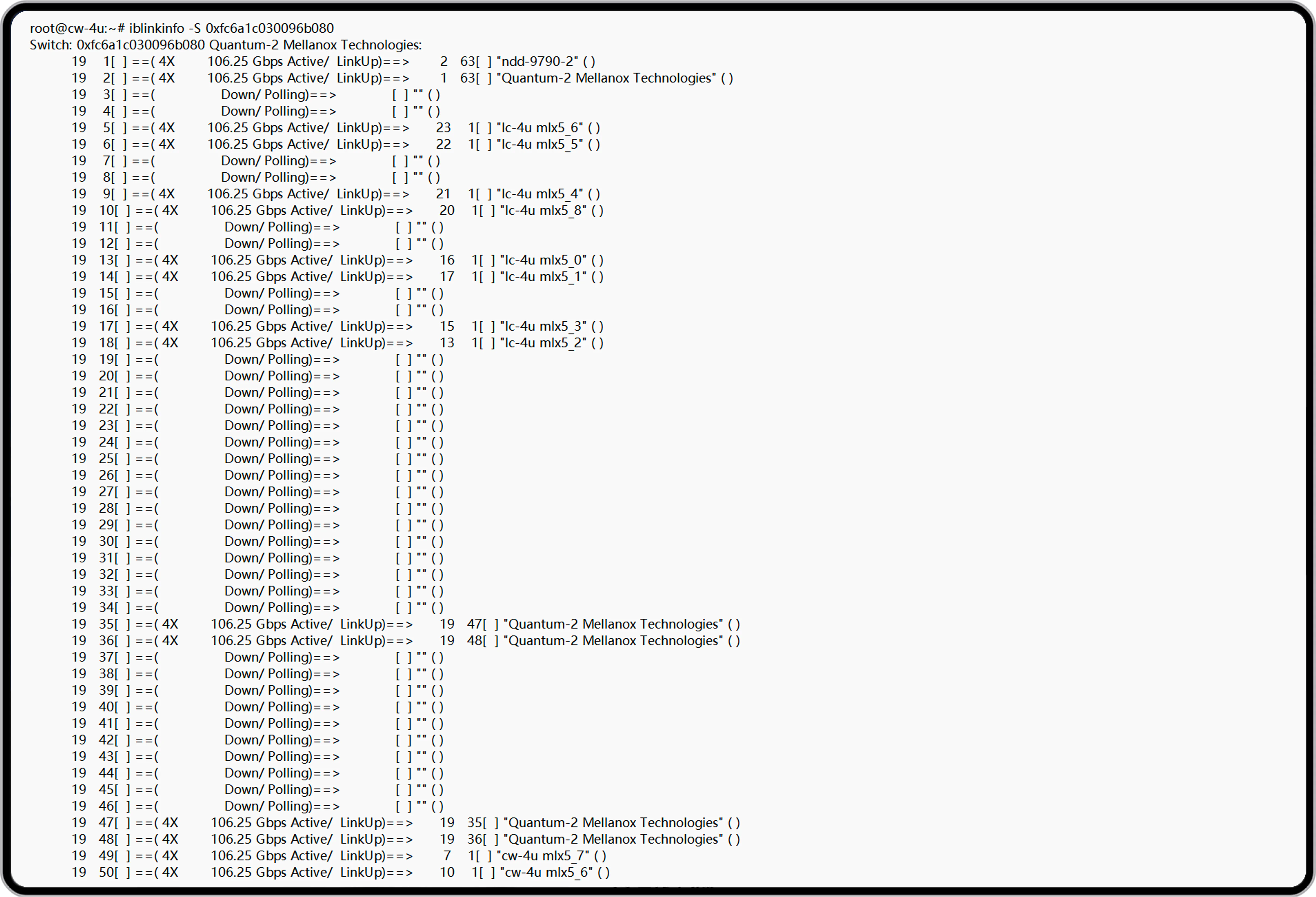

Switch Side Testing
NIC Side Testing

Connectivity Testing

NADDOD optical modules are perfectly compatible with mainstream network devices in the market, seamlessly integrating and maintaining stable optical link connections, demonstrating unparalleled stability and reliability.

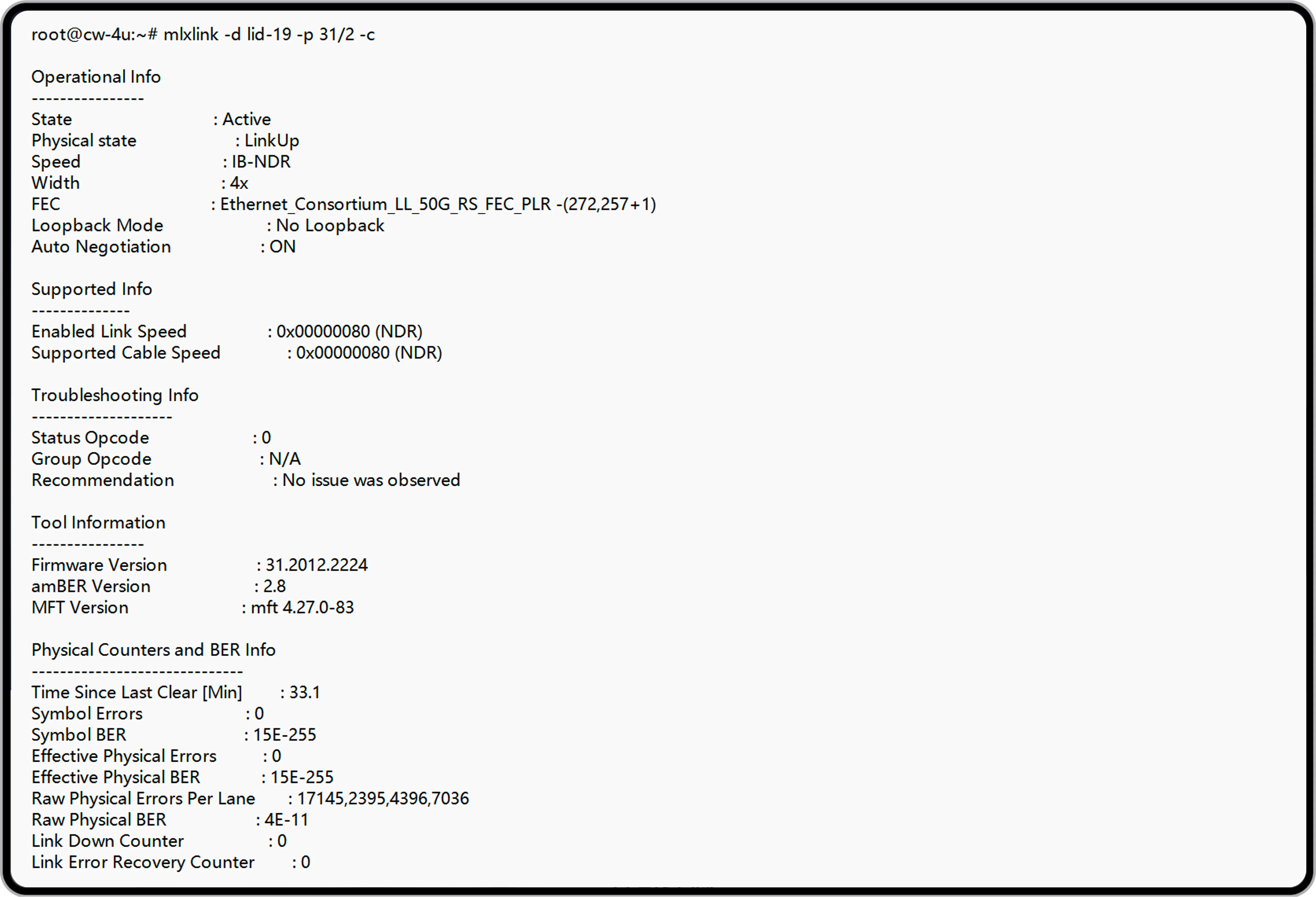

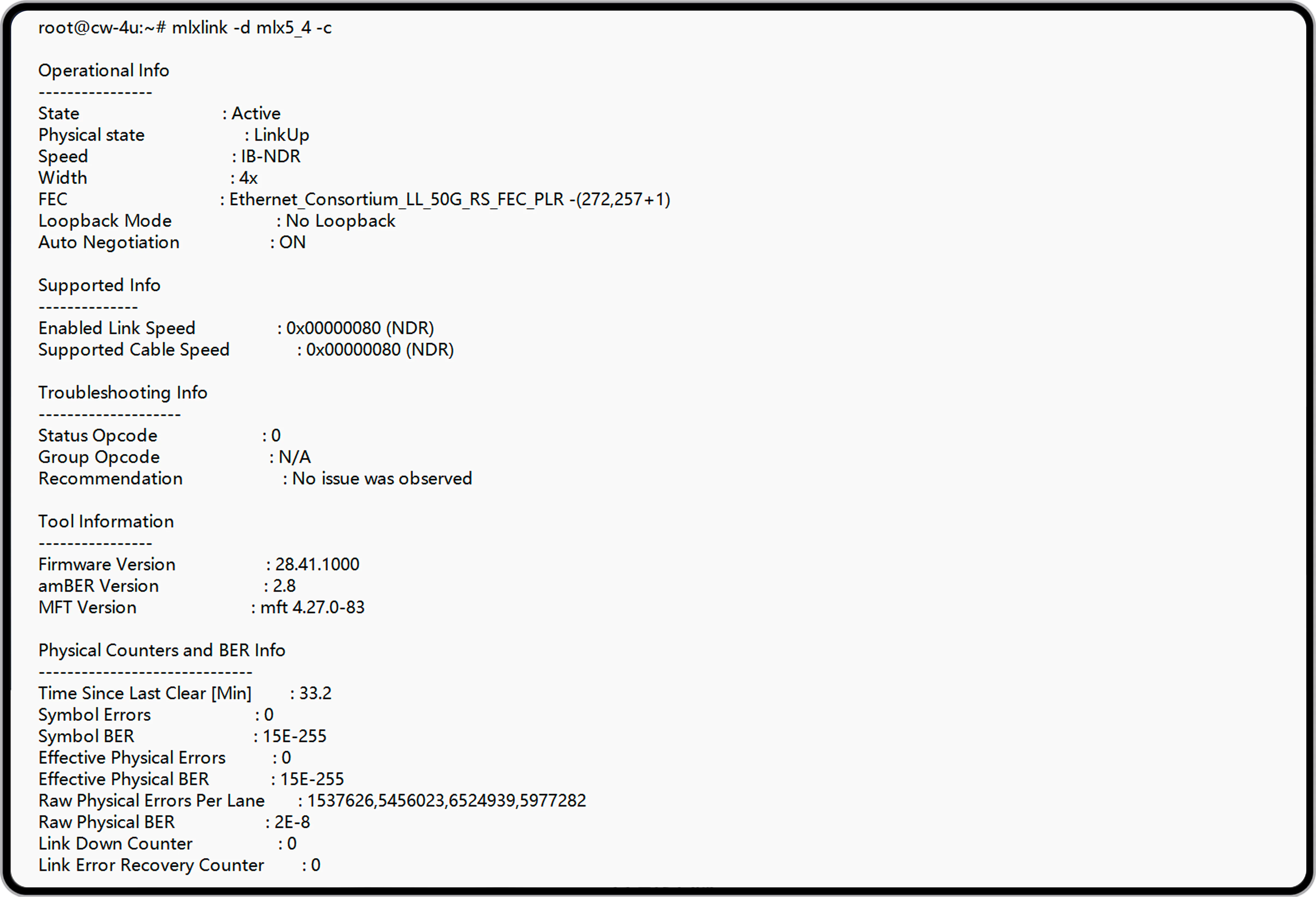

BER

Switch Side Testing
NIC Side Testing

BER Testing

NADDOD optical modules exhibit a low bit error rate (BER). In LL FEC (272,257) testing, the 800G OSFP DR8 module demonstrates relative consistency with NVIDIA's original BER (maintaining a BER around -8~-10) before error correction, while achieving near-zero BER after error correction. Maintaining a low BER helps to avoid link instability caused by high error rates, ensuring the stability of cluster performance and large-scale model training. This contributes to simplifying customer operations and maintenance while reducing costs.
