Mellanox MMS1V00-WM Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m FEC MTP/MPO-12 APC SMF Optical Transceiver Module

#32774
#32774
Model: QDD-400G-DR4
request-free-sample
Request Sample

Item Spotlights

  • Max Power Consumption ≤10.5W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3bs Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
400GBASE-DR4 QSFP-DD PAM4 1310nm 500m SMF Module for Mellanox
Mellanox MMS1V00-WM Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m FEC MTP/MPO-12 APC SMF Optical Transceiver Module
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Description

Mellanox® MMS1V00-WM Compatible 400GbE QSFP-DD DR4 1310nm 500m FEC SMF Optical Transceiver Moudle (PAM4, MTP/MPO, DDM, Commercial Temp)

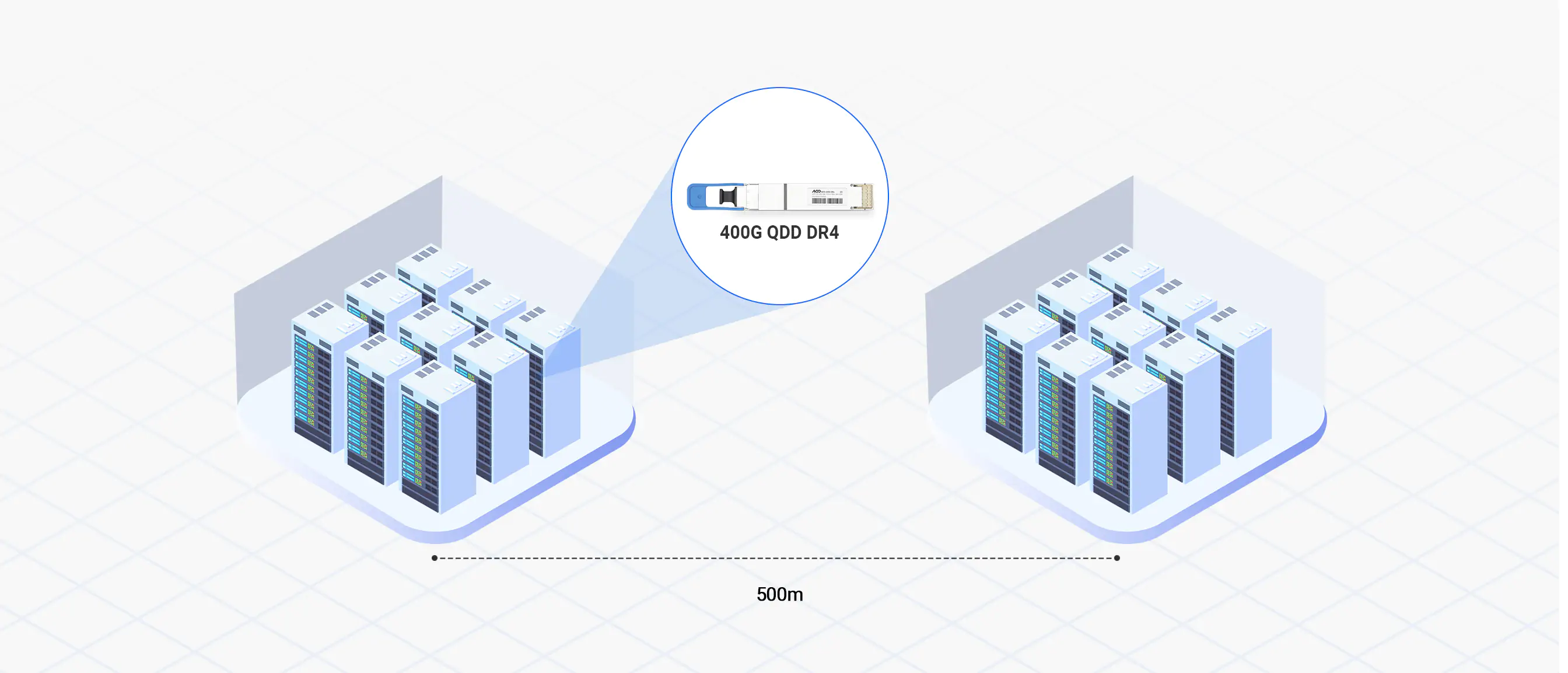

Mellanox MMS1V00-WM transceiver is a single-mode, four-channel (DR4), QSFP-DD optical transceiver module designed for 400 Gigabit Ethernet (GbE) links on up to 500m of single mode fiber. NADDOD offers Mellanox MMS1V00-WM Compatible 400G QSFP-DD DR4 Optical module, which adopts a 1310nm EML transmitter type and PAM4 pulse amplitude modulation mode, by converting 8 input channels of 50Gb/s PAM4 electrical data to 4 channels of 100Gb/s PAM4 optical signals, using a nominal wavelength of 1310 nm, MTP/MPO-12 connector for 400Gb/s optical transmission. It is compliant with the QSFP-DD MSA, IEEE 802.3bs and 400GBASE-DR4. It is widely used in high-performance computing (HPC) networks, data centers, 400G Ethernet interconnect, enterprise core, and distribution layers, and service provider applications.

Specifications
Form Factor
QSFP-DD
Distance
500m
Wavelength
1310nm
Connector
Dual MTP/MPO-12 APC
Power Consumption
≤10.5W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation(electrical )
8x53.125Gb/s PAM4
Modulation(Optical )
4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
400G Ethernet Compliant
Connectivity Solutions

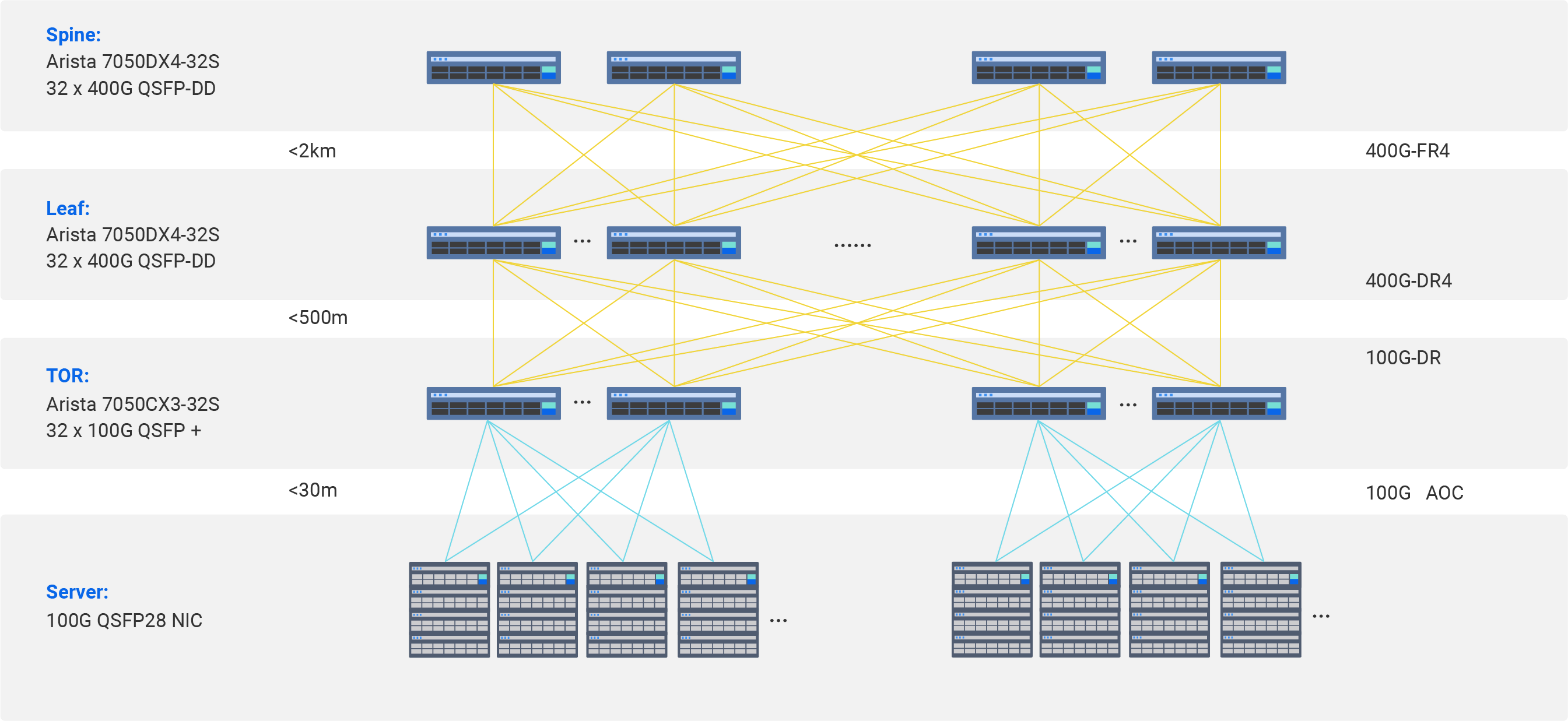

The Spine-Leaf Architecture

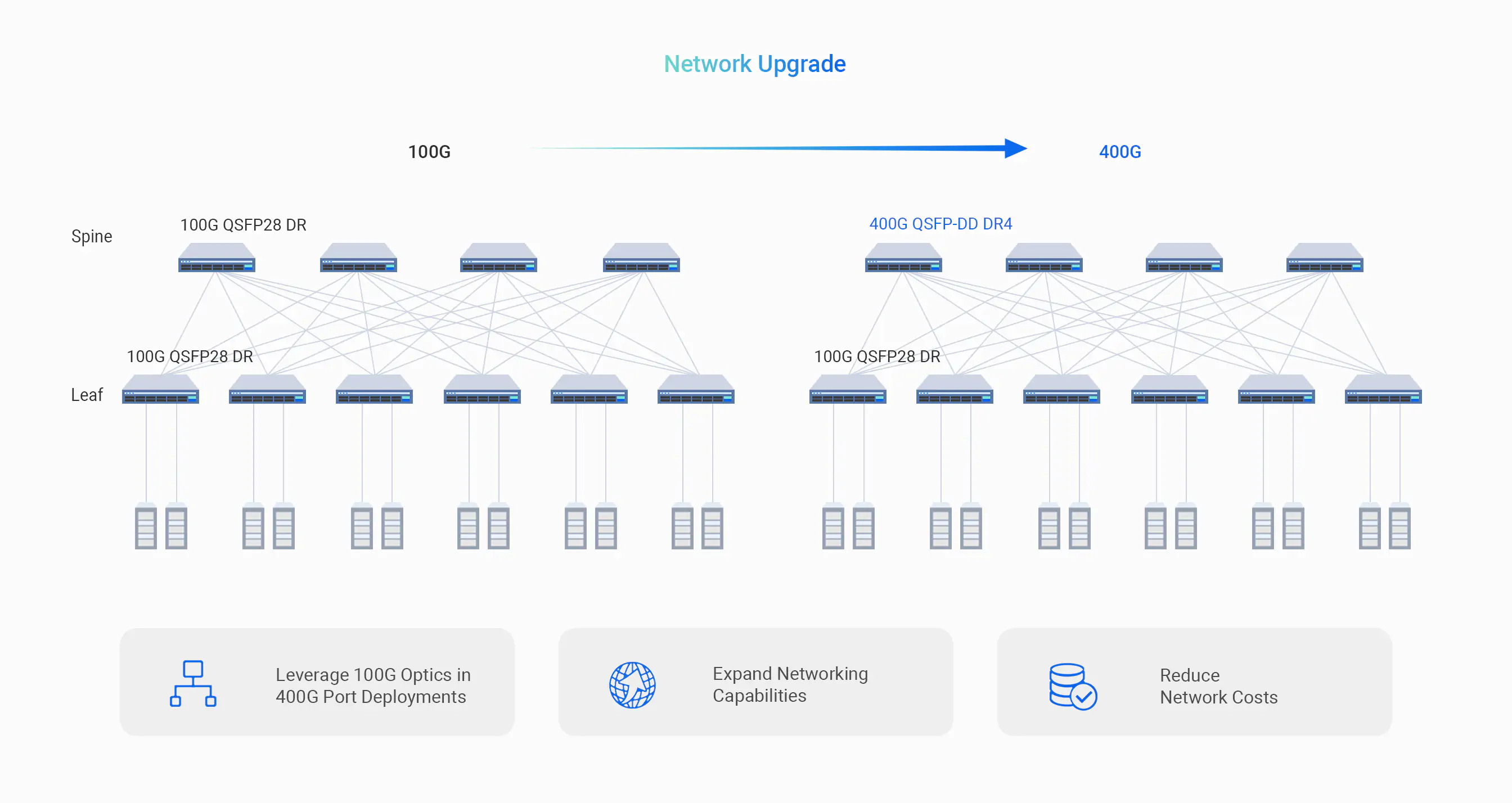

The network solution uses NADDOD optical module connectivity products to realize 100G~400G network architecture upgrade; providing higher data transmission rate and higher reliability while effectively reducing network latency between Leaf switches and ToR switches.

Applications
View More
Questions & Answers
Ask a Question
Q:
Can OSFP ports use modules in QSFP-DD form factor, such as QDD-400G-DR4?
A:
OSFP and QSFP-DD are two completely different form factors, so QSFP-DD optical modules like QDD-400G-FR4 QDD-400G-SR8, QDD-400G-LR4 or QDD-400G-DR4 all these optical transceivers cannot be used in OSFP ports.
Q:
Can QSFPDD 400G DR4 be interconnected with OSFP 400G DR4?
A:
Even though QSFPDD and OSFP have different standards, QDD-400G-DR4 and OSFP-400G-DR4 are still interconnected and they have the same standards on the optical side; this is one way to interconnect NVIDIA CX7 OSFP-packaged 400G NICs with 400G QSFPDD switches.
Q:
What kind of patch cables for QSFPDD 400G DR4?
A:
The QSFPDD 400G DR4 module's interface needs to be matched with a single-mode 12-core MPO interface, and the fiber connector needs to be an APC port.
View More
