Juniper QDD-400G-DR4 Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m FEC MTP/MPO-12 APC SMF Optical Transceiver Module

Name: Juniper QDD-400G-DR4 Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m FEC MTP/MPO-12 APC SMF Optical Transceiver Module
Brand: Naddod
SKU: 32772
Price: 679.00 USD
Availability: InStock
Rating: 4.9 (3 reviews)

#32772

Model: QDD-400G-DR4

$ 679.00

Transceiver Types:

QDD-400G-ER4(lite)

QDD-400G-LR8

QDD-400G-SR8

QDD-400G-FR4

QDD-400G-DR4

QDD-400G-LR4

QDD-400G-ER8

QDD-400G-XDR4

QDD-400G-ER4(lite)

QDD-400G-LR8

QDD-400G-SR8

QDD-400G-FR4

QDD-400G-DR4

QDD-400G-LR4

QDD-400G-ER8

QDD-400G-XDR4

Brand:

Cisco

Juniper

Dell

Generic

NVIDIA/Mellanox (Ethernet)

Cisco

Juniper

Dell

Generic

NVIDIA/Mellanox (Ethernet)

Request Sample

Item Spotlights

Max Power Consumption ≤10.5W.
Provide Professional Compatibility and Parameter Test Reports.
Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3bs Standard.
Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
DDM(Digital Diagnostic Monitoring) Supported.
30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Juniper QDD-400G-DR4 Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m FEC MTP/MPO-12 APC SMF Optical Transceiver Module

Free Worldwide Shipping on Orders over $ 99

$ 679.00

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Description

Juniper QDD-400G-DR4 Compatible 400GbE QSFP-DD DR4 1310nm 500m FEC SMF Optical Transceiver Moudle (PAM4, MTP/MPO, DDM, Commercial Temp)

Juniper QDD-400G-DR4 transceiver is a single-mode, four-channel (DR4), QSFP-DD optical transceiver module designed for 400 Gigabit Ethernet (GbE) links on up to 500m of single mode fiber. NADDOD offers Juniper QDD-400G-DR4 Compatible 400G QSFP-DD DR4 Optical module, which adopts a 1310nm EML transmitter type and PAM4 pulse amplitude modulation mode, by converting 8 input channels of 50Gb/s PAM4 electrical data to 4 channels of 100Gb/s PAM4 optical signals, using a nominal wavelength of 1310 nm, MTP/MPO-12 connector for 400Gb/s optical transmission. It is compliant with the QSFP-DD MSA, IEEE 802.3bs and 400GBASE-DR4. It is widely used in high-performance computing (HPC) networks, data centers, 400G Ethernet interconnect, enterprise core, and distribution layers, and service provider applications.

Specifications

Compatible

QDD-400G-DR4

Product Type

QDD-400G-DR4

Vendor Name

NADDOD

Form Factor

QSFP-DD

Max Data Rate

425Gbps

Wavelength

1310nm

Transmission Distance

500m

Connector

MPO/MTP-12 APC

Media

SMF

Transmitter Type

EML

Receiver Type

TX Power

-2.4~4dBm

Receiver Sensitivity

< -6.4dBm

Typical Power Consumption

≤10.5W

Commercial Temperature Range

0~70°C

DDM

Supported

EMC ( Electro Magnetic Compatibility)

Supported

Modulation Mode

PAM4

CDR

TX & RX Built-in CDR

Protocols

IEEE 802.3bs、SFF-8636、SFF-8679、 QSFP-DD MSA、CPRI, eCPRI

Host Required

FEC

Application

400G Ethernet, Data Center, Infiniband Interconnects, Enterprise Networking, HPC

Connectivity Solutions

ID	Part Number	Description	Unit Price
32772	QDD-400G-DR4	Juniper QDD-400G-DR4 Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m FEC MTP/MPO-12 APC SMF Optical Transceiver Module	$ 679
32456	QSFP-100G-DR	Generic Compatible QSFP-100G-DR 100GBASE-DR QSFP28 1310nm 500m DOM Duplex LC Transceiver Module for SMF	$ 245.00
34281	S2MTPALCU8FB	1m (3ft) MTP® Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (OFNP) Yellow OS2 9/125 Single Mode Elite Breakout Cable 3mm	$ 54.20
34421	S2MTPA12FB	1m (3ft) MTP®-12 (Female) to MTP®-12 (Female) Yellow OS2 12 Fibers Type B, Plenum (OFNP) Single Mode Elite Trunk Cable 3mm	$ 73.20

Compare Items

	QDD-400G-DR4	OSFP-400G-DR4-Si	QDD-400G-XDR4
Form Factor	QSFP-DD	OSFP	QSFP-DD
Center Wavelength	1310nm	1310nm	1310nm
Connector	MPO/MTP-12 APC	MPO/MTP-12 APC	MTP/MPO-12 APC
Cable Distance	500m	500m	2km
Electrical Modulation	8x53.125Gb/s PAM4(400GAUI-8)	8x53.125Gb/s PAM4(400GAUI-8)	8x53.125Gb/s PAM4(400GAUI-8)
Optical Modulation	4x106.25Gbps PAM4	4x106.25Gbps PAM4	4x106.25Gbps PAM4
Modulation Diagram
Power Consumption	≤10.5W	≤10W	≤10.5W
Transmitter Type	EML	EML	EML
Protocols	QSFP-DD MSA, CMIS Rev4.1, OIF 56G PAM4, 100G Lambda MSA, IEEE 802.3bs	OSFP MSA, CMIS 4.0, IEEE 802.3bs	QSFP-DD MSA, CMIS Rev4.1, OIF 56G PAM4, 100G Lambda MSA, IEEE 802.3bs
Application	Data Center, HPC, enterprise core, 400G to 400G ethernet, 800G to 2x400G Breakout, 400G to 4x100G Breakout	Data Center, HPC, enterprise core, 400G to 400G ethernet, 800G to 2x400G Breakout, 400G to 4x100G Breakout	Data Center, HPC, enterprise core, 400G to 400G ethernet, 800G to 2x400G Breakout, 400G to 4x100G Breakout

Applications

Product Highlights

Unique advantages of NADDOD 400G transceiver

NADDOD 400G optical transceiver has great advantages in increasing data throughput and maximizing data center bandwidth and port density. 400G QSFP-DD has been tested and recognized by the global market as we are the first brand to complete the commercial order delivery of 400G data center optical modules.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Questions & Answers

Ask a Question

Can OSFP ports use modules in QSFP-DD form factor, such as Juniper QDD-400G-DR4?

Can a 400G link with one end using a Juniper QDD-400G-DR4 optical module and the other end using Arista OSFP-400G-FR4 OSFP be interconnected?

Yes, OSFP and QSFP-DD are just physical form factors for modules, and as long as the modules are of the same type (such as both being 400G-DR4 or 400G-FR4), OSFP(Arista OSFP-400G-FR4) and QSFP-DD(Juniper QDD-400G-DR4) modules can be interconnected.

Can the Juniper QDD-400G-DR4 modules be used on QSFP-DD ports?

Yes, Juniper QDD-400G-DR4 modules can be directly used on QSFP-DD ports, but it is important to configure the port speed appropriately when using them.

What is the maximum power consumption of a 400G module?

The maximum power consumption of the 400G modules provided by NADDOD is 14W (QDD-400G-ER8), and there are also low-power ER4（QDD-400G-ER4 lite）modules available for distances up to 40KM, with a power consumption of 12W.

Can QSFPDD 400G DR4 be interconnected with OSFP 400G DR4?

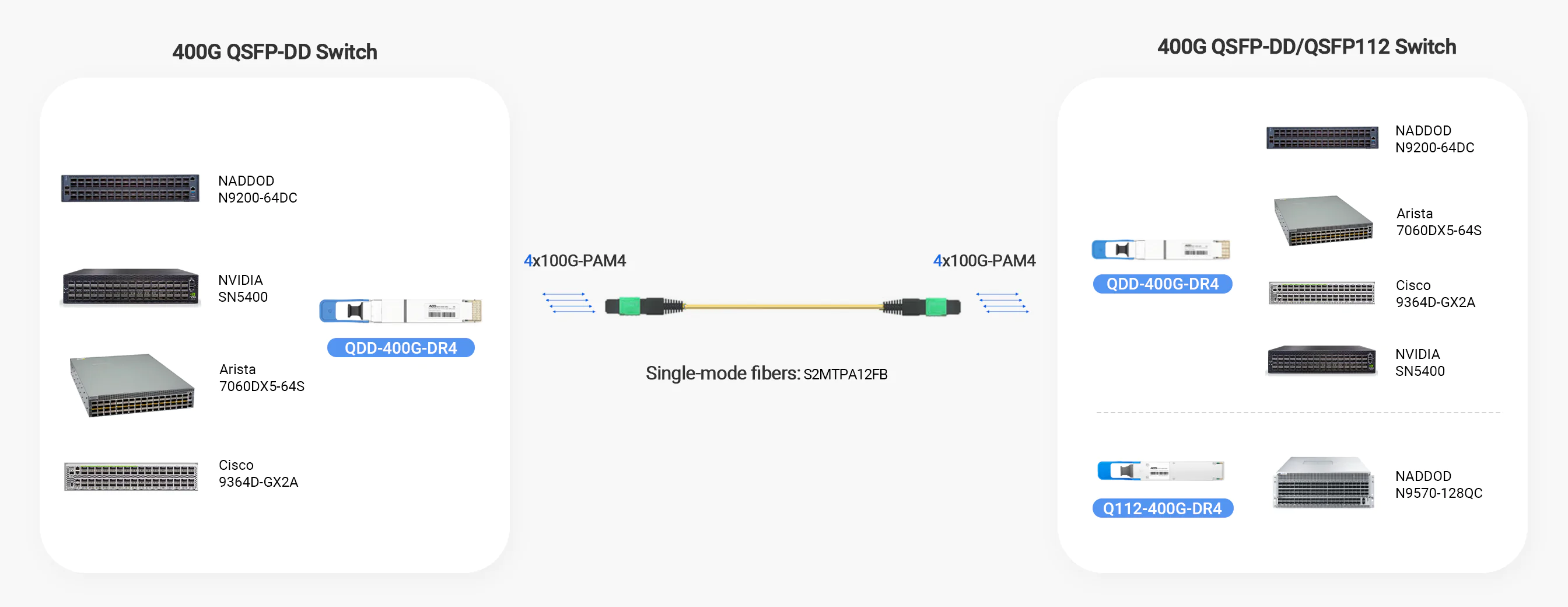

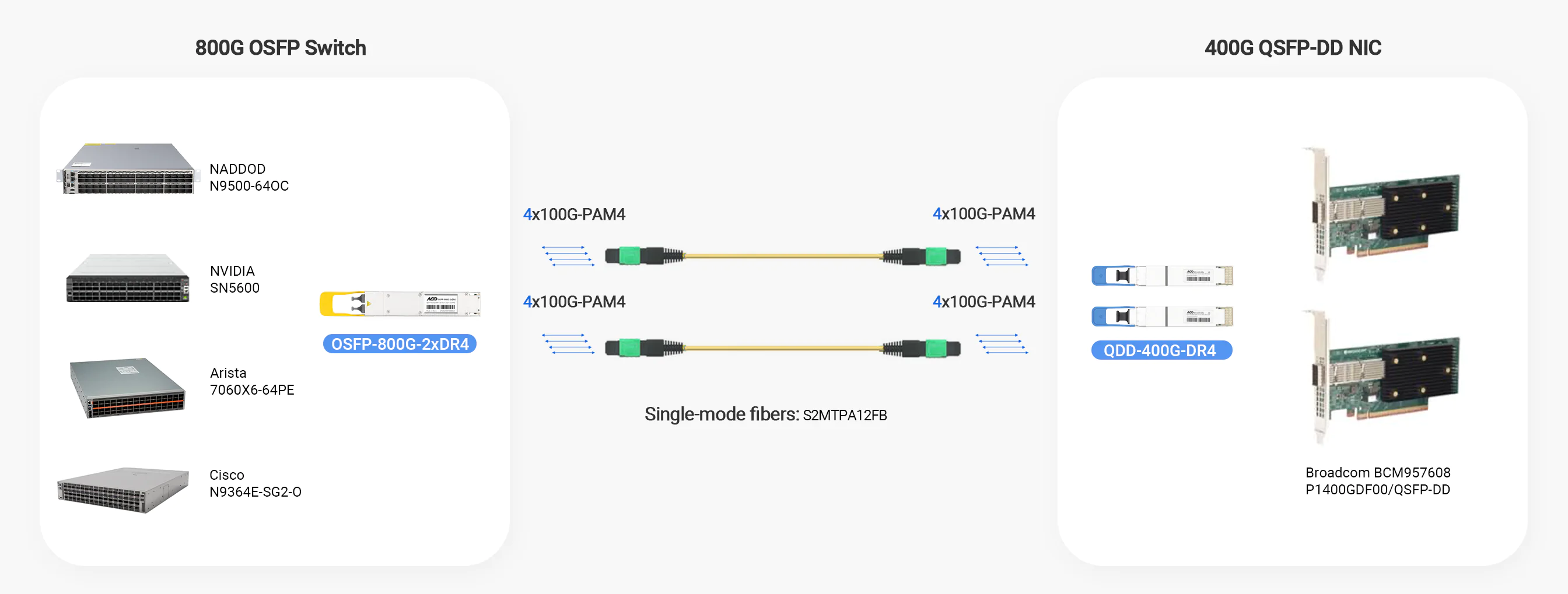

Even though QSFPDD and OSFP have different standards, QSDD-400G-DR4 and OSFP-400G-DR4 are still interconnected and they have the same standards on the optical side; this is one way to interconnect NVIDIA CX7 OSFP-packaged 400G NICs with 400G QSFPDD switches.

What kind of patch cables for QSFPDD 400G DR4?

The QSFPDD 400G DR4 module's interface needs to be matched with a single-mode 12-core MPO interface, and the fiber connector needs to be an APC port.

Does QSFPDD 400G DR4 support breakout?

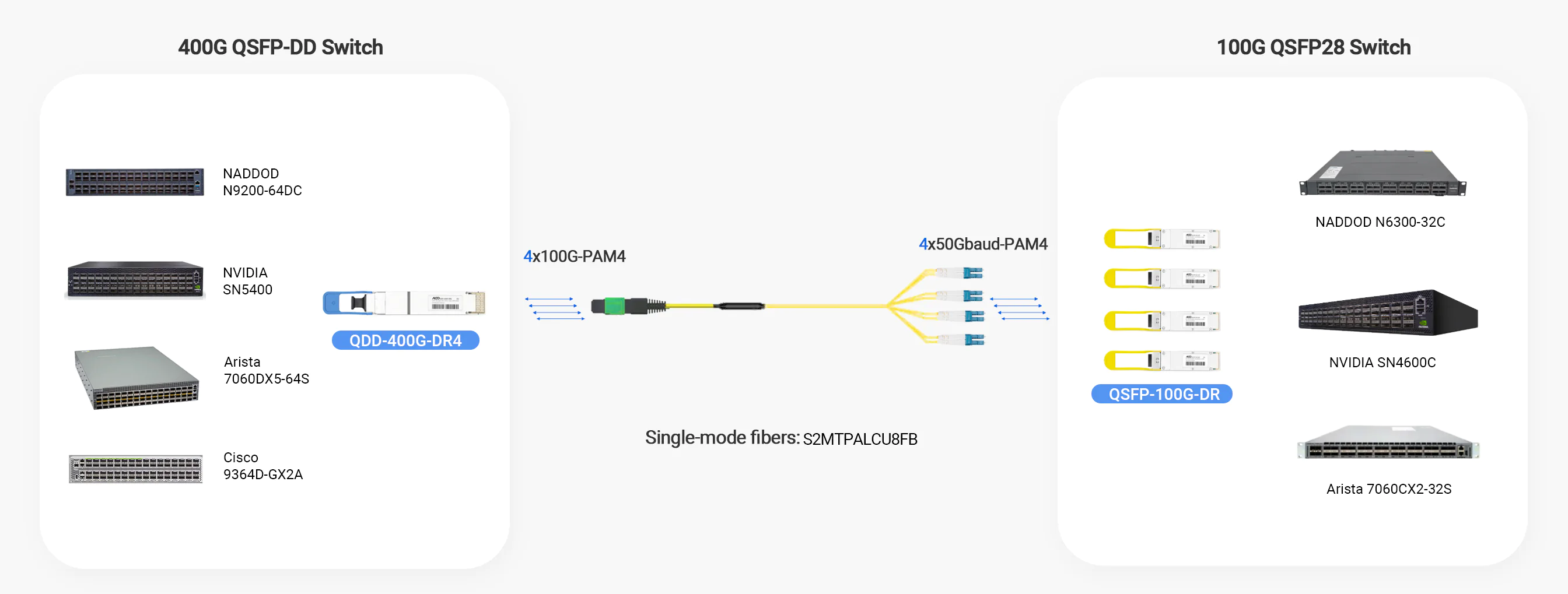

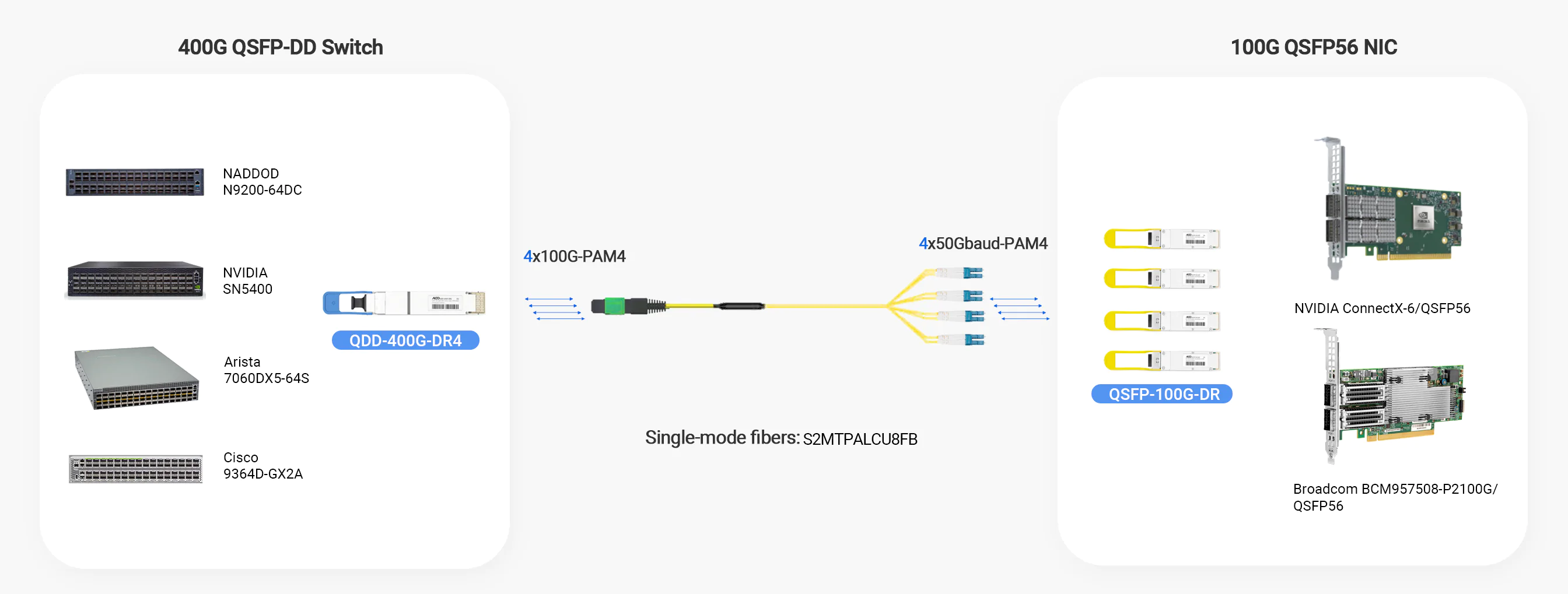

QSFPDD 400G DR4 is an MPO interface, as long as the device port using the module supports the breakout function, then 400G DR4 can be paired with MPO to LC harness fiber to interconnect with the 100G DR module. This scenario is very common in the connection of 400G QDD switches to 100G QSFP28 switches.

The standard of QSFP56-DD is 8*50G, why are there only four channels in QSFPDD 400G DR4?

The optical module mainly completes the optical-electrical conversion work, for the number of its signal channels, there are two dimensions: an electrical signal (i.e., host side, connected to the device) and an optical signal (i.e., optical path side, connected to the optical fiber), the 8*50G is its electrical signal channel mode on the host side, and the DSP chip of the QDD-400G-DR4 module with the gearbox function, which can convert the electrical signals of the 8X50G into the 4X100G optical signal.

Which application scenarios are QSFPDD 400G DR4 generally used in?

The QDD-400G-DR4 transceiver is usually used to interconnect a 400G leaf switch with a spine, or a 400G QDD switch with a 100G QSFP28 switch, and as server NICs increase in speed, it can also be used to interconnect a 400G QDD switch with a 400G OSFP/QSFP112 NIC.

Can QSFPDD 400G DR4 be compatible with QSFP56 or QSFP28 ports?

No, QSFPDD ports can use QSFP56 or QSFP28 optical modules, but QSFPDD optical modules cannot be used on QSFP56/QSFP28 ports.
