400GBASE-SR8 QSFP-DD PAM4 850nm 100m MMF Module for Dell

Click to open expanded view

Global Local Service

Lifetime Technical Support

Dell Q56DD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m MTP/MPO FEC Optical Transceiver Module

Name: Dell Q56DD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m MTP/MPO FEC Optical Transceiver Module
Brand: Naddod
SKU: 32764
Price: 389.00 USD
Availability: InStock
Rating: 4.9 (3 reviews)

#32764

Model: QDD-400G-SR8

$ 389.00

Transceiver Types:

QDD-400G-ER4(lite)

QDD-400G-LR8

QDD-400G-SR8

QDD-400G-FR4

QDD-400G-DR4

QDD-400G-LR4

QDD-400G-ER8

QDD-400G-XDR4

QDD-400G-ER4(lite)

QDD-400G-LR8

QDD-400G-SR8

QDD-400G-FR4

QDD-400G-DR4

QDD-400G-LR4

QDD-400G-ER8

QDD-400G-XDR4

Brand:

Cisco

Arista

Juniper

Dell

Generic

NVIDIA/Mellanox (Ethernet)

Cisco

Arista

Juniper

Dell

Generic

NVIDIA/Mellanox (Ethernet)

Request Sample

Item Spotlights

Max Power Consumption ≤10W.
Provide Professional Compatibility and Parameter Test Reports.
Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3bs Standard.
Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
DDM(Digital Diagnostic Monitoring) Supported.
30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Dell Q56DD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m MTP/MPO FEC Optical Transceiver Module

Free Worldwide Shipping on Orders over $ 99

$ 389.00

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Description

Dell Q56DD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 850nm MTP/MPO-16 OM3/OM4 100m DDM/DOM with FEC Optical Transceiver Module

Dell Q56DD-400G-SR8 Compatible 400G QDD SR8 is a high-performance, cutting-edge transceiver that delivers up to 70m on OM3 or 100m on OM4. It is compliant with IEEE P802.3bs, RoHS, and is capable of reaching up to 100m via MTP/MPO-16 connectors. This transceiver is designed to support PAM4 and 400GAUI-8/CEI-56G-VSR-PAM4, and is compliant with the MSA (Multi-Source Agreement), which is ideal for all your data center needs. Get the most out of your Ethernet networks with the 400G QDD SR8.

Specifications

Compatible

Q56DD-400G-SR8

Product Type

QDD-400G-SR8

Vendor Name

NADDOD

Form Factor

QSFP-DD

Max Data Rate

425Gbps

Wavelength

850nm

Transmission Distance

100m

Connector

MPO/MTP-16 APC

Media

MMF

Transmitter Type

VCSEL

Receiver Type

TX Power

-6.5~4dBm

Receiver Sensitivity

< -7.9dBm

Typical Power Consumption

≤10W

Commercial Temperature Range

0~70°C

DDM

Supported

EMC ( Electro Magnetic Compatibility)

Supported

Modulation Mode

PAM4

DSP

TX & RX Built-in DSP

Protocols

IEEE 802.3bs、SFF-8636、SFF-8679、 QSFP-DD MSA、CPRI, eCPRI

Host Required

FEC

Application

400G Ethernet, Data Center, Infiniband Interconnects, Enterprise Networking, HPC

Compatible Part Number

407-BCHW, Q56DD-400G-SR8

Connectivity Solutions

ID	Part Number	Description	Unit Price
32764	QDD-400G-SR8	Dell Q56DD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m MTP/MPO FEC Optical Transceiver Module	$ 389
34533	M4MTPA16F	1m (3ft) MTP®-16 APC (Female) to MTP®-16 APC (Female) Magenta OM4 16 Fibers Plenum (OFNP) Multimode Elite Trunk Cable (Color-coded) for 400G Network Connection 3mm	$ 141.60

Compare Items

	QDD-400G-SR8	OSFP-400G-SR8	QDD-400G-DR4	OSFP-400G-DR4-Si	QDD-400G-XDR4
Form Factor	QSFP-DD	OSFP	QSFP-DD	OSFP	QSFP-DD
Center Wavelength	850nm	850nm	1310nm	1310nm	1310nm
Connector	MPO/MTP-16 APC	MPO/MTP-16 APC	MPO/MTP-12 APC	MPO/MTP-12 APC	MTP/MPO-12 APC
Cable Distance	100m	100m	500m	500m	2km
Electrical Modulation	8x53.125Gb/s PAM4(400GAUI-8)	8x53.125Gb/s PAM4(400GAUI-8)	8x53.125Gb/s PAM4(400GAUI-8)	8x53.125Gb/s PAM4(400GAUI-8)	8x53.125Gb/s PAM4(400GAUI-8)
Optical Modulation	8x53.125Gbps PAM4	8x53.125Gbps PAM4	4x106.25Gbps PAM4	4x106.25Gbps PAM4	4x106.25Gbps PAM4
Modulation Diagram
Power Consumption	≤10W	≤12W	≤10.5W	≤10W	≤10.5W
Transmitter Type	VCSEL	VCSEL	EML	EML	EML
Protocols	QSFP-DD MSA, CMIS Rev5.0, OIF 56G PAM4, IEEE 802.3cd	OSFP MSA, CMIS Rev4.1, OIF 56G PAM4, IEEE 802.3bs	QSFP-DD MSA, CMIS Rev4.1, OIF 56G PAM4, 100G Lambda MSA, IEEE 802.3bs	OSFP MSA, CMIS 4.0, IEEE 802.3bs	QSFP-DD MSA, CMIS Rev4.1, OIF 56G PAM4, 100G Lambda MSA, IEEE 802.3bs
Application	Data Center, HPC, enterprise core, 400G to 400G ethernet, 400G to 8x50G Breakout	Data Center, HPC, enterprise core, 400G to 400G ethernet, 400G to 8x50G Breakout	Data Center, HPC, enterprise core, 400G to 400G ethernet, 800G to 2x400G Breakout, 400G to 4x100G Breakout	Data Center, HPC, enterprise core, 400G to 400G ethernet, 800G to 2x400G Breakout, 400G to 4x100G Breakout	Data Center, HPC, enterprise core, 400G to 400G ethernet, 800G to 2x400G Breakout, 400G to 4x100G Breakout

Applications

Product Highlights

Unique advantages of NADDOD 400G transceiver

NADDOD 400G optical transceiver has great advantages in increasing data throughput and maximizing data center bandwidth and port density. 400G QSFP-DD has been tested and recognized by the global market as we are the first brand to complete the commercial order delivery of 400G data center optical modules.

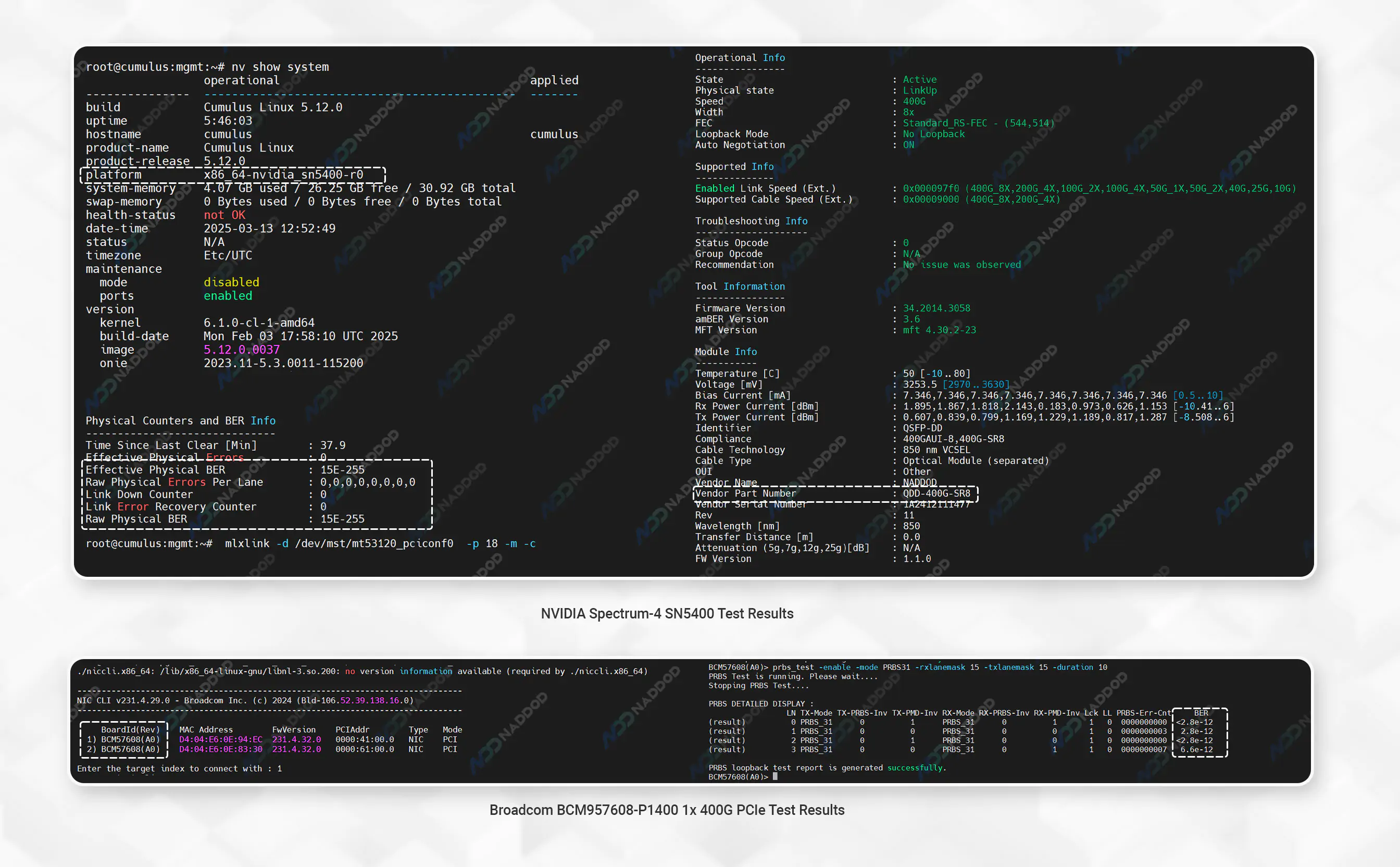

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Questions & Answers

Ask a Question

Can OSFP ports use modules in QSFP-DD form factor, such as Dell Q56DD-400G-SR8?

OSFP and QSFP-DD are two completely different form factors, so QSFP-DD optical modules like Cisco QDD-400G-FR4-S, QDD-400G-SR8-S, QDD-400G-LR4-S or QDD-400G-DR4-S all these optical transceivers cannot be used in OSFP ports.

Can a 400G link with one end using a Dell Q56DD-400G-SR8 optical module and the other end using Arista OSFP-400G-FR4 OSFP be interconnected?

Yes, OSFP and QSFP-DD are just physical form factors for modules, and as long as the modules are of the same type (such as both being 400G-DR4 or 400G-FR4), OSFP(Arista OSFP-400G-FR4) and QSFP-DD(Dell Q56DD-400G-SR8) modules can be interconnected.

Can the Dell Q56DD-400G-SR8 modules be used on QSFP-DD ports?

Yes, Dell Q56DD-400G-SR8 modules can be directly used on QSFP-DD ports, but it is important to configure the port speed appropriately when using them.

What is the maximum power consumption of a 400G module?

The maximum power consumption of the 400G modules provided by NADDOD is 14W (QDD-400G-ER8), and there are also low-power ER4（QDD-400G-ER4 lite）modules available for distances up to 40KM, with a power consumption of 12W.

What is the modulation mode of QSFP-DD 400G SR8 transceivers?

QDD-400G-SR8 transceiver adopts 8x50Gb/s PAM-4 modulation, "S" is the abbreviation of short, which means short distance transmission, and "8" means there are 8 optical channels.

What is the difference between QDD-400G-SR8 and OSFP-400G-SR8?

The main difference is the package, QDD-400G-SR8 is the QSFP-DD form factor and OSFP-400G-SR8 is the OSFP form factor. OSFP: OSFP stands for "Octal Small Form Factor Pluggable", the electrical interface of the OSFP connector consists of 8 electrical channels with 50Gb/s each, for a total bandwidth of 400Gb/s. QSFP-DD: QSFP-DD stands for "Quad Small Form Factor Pluggable (QSFP) - Dual Density (DD)". OSFP: OSFP stands for "Octal Small Form Factor Pluggable" and the electrical interface of the OSFP connector consists of eight electrical channels, each with 50Gb/s, for a total bandwidth of 400Gb/s. QSFP-DD: QSFP-DD stands for "Quad Small Form Factor Pluggable (QSFP) - Dual Density (DD)". The electrical interface of the QSFP-DD connector has eight electrical channels running at 50Gb/s per channel for a total bandwidth of 400Gb/s. The QSFP-DD form factor is similar to the QSFP form factor except that a second row of electrical contacts has been added to increase the number of high-speed contacts, and the electrical channels have been increased from four (in the QSFP) to eight (in the QSFP-DD).

What is the max transmission distance of the QDD-400G-SR8 transceiver?

When matched with OM3 multimode fiber, the farthest transmission distance is 70m; with OM4 multimode fiber, the farthest transmission distance can reach 100m.

What are the connection options for the 400G QSFP-DD SR8 transceiver?

Direct cable, using the same module at both ends, can realize 400G transmission; Breakout cable, using a 400G optical module at one end and eight 50G SFP56 optical modules at the other end, with MPO/MTP-16 to 8xLC multimode patch cables, to realize 400G to eight 50G connection.

Can QSFP-DD 400G transceiver be used directly in OSFP ports?

No. QSFP-DD and OSFP are two different form factors with different physical dimensions. OSFP is slightly larger than QSFP-DD and cannot be directly adapted.

Can I interconnect a QSFP-DD 400G SR8 module at one end and an OSFP 400G SR8 module at the other?

Yes, QSFP-DD and OSFP only describe the physical form factor of the module. Both modules are 8x50Gb/s modulated and can be interconnected using multimode MPO/MTP 16 APC patch cords.
