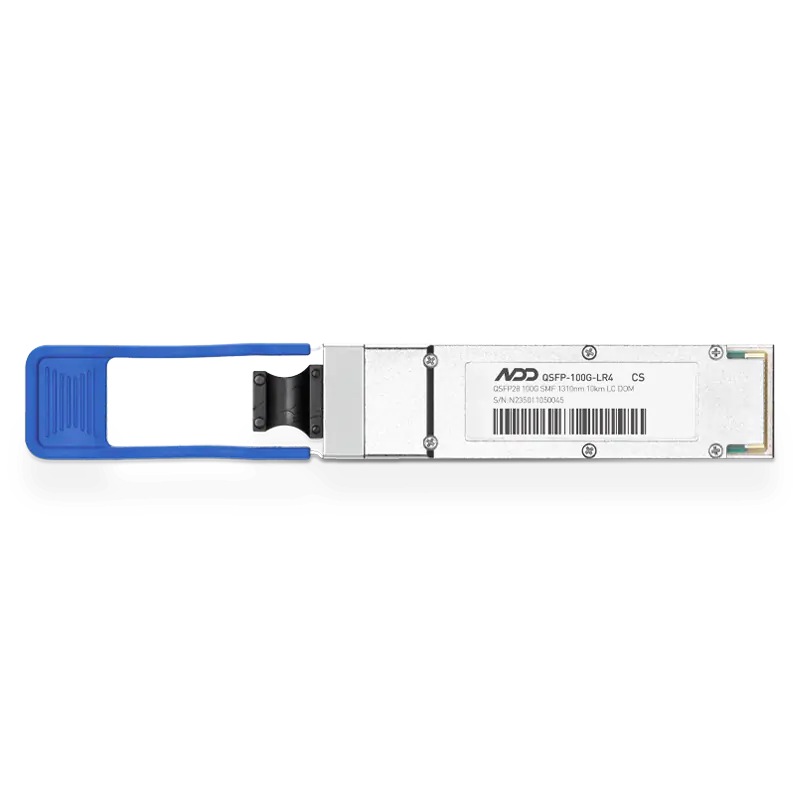

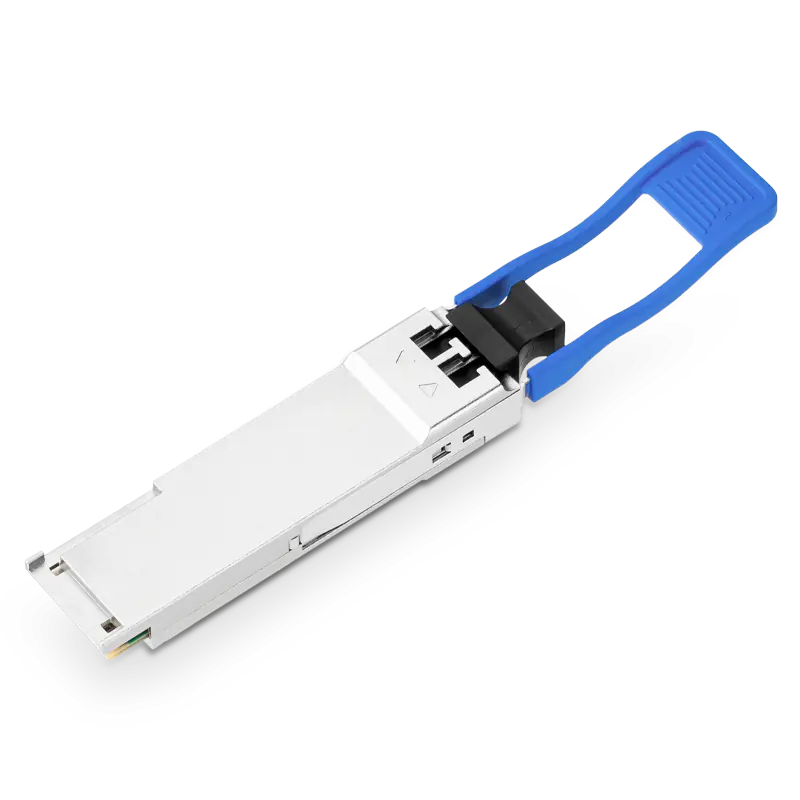

Cisco QSFP-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC Transceiver Module for SMF

#32396
#32396
Model: QSFP-100G-LR4
  Sold:  174
 In Stock 759
  Shipping Today
$ 369.00
request-free-sample
Request Free Sample

Item Spotlights

  • Max Power Consumption ≤4.5W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP28 MSA, IEEE 802.3ba Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 3-Year Free Exchange, 3-Year Warranty, Lifetime After-sales Technical Support.
100GBASE-LR4 QSFP28 1310nm 10km SMF Module for Cisco
Cisco QSFP-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC Transceiver Module for SMF

$ 369.00

Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Connectivity Solutions
ID Part Number Description Unit Price
32396 QSFP-100G-LR4 Cisco QSFP-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC Transceiver Module for SMF $ 369
34281 S2MTPALCU8FB 1m (3ft) MTP® Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (OFNP) Yellow OS2 9/125 Single Mode Elite Breakout Cable 3mm $ 54.20
Product Highlights

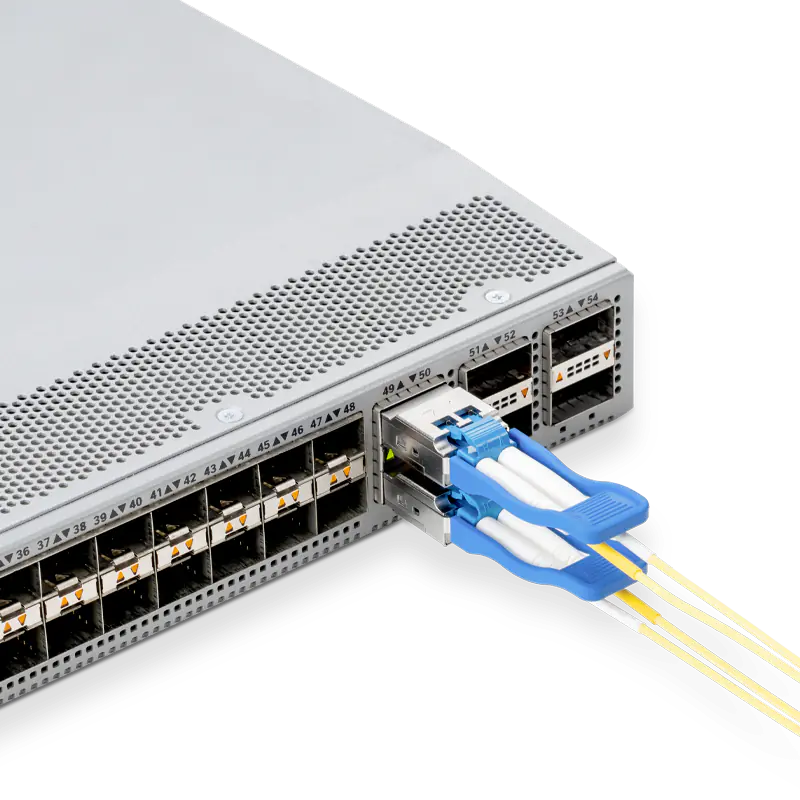

Application of NADDOD QSFP-100G-LR4 transceiver

Suitable for applications such as interconnection between internet data center (IDC) computer rooms, HPC, high-frequency trading, etc.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Standardized Service
Standardized Service
Compare Items
QSFP-100G-LR4

QSFP-100G-LR4

QSFP-100G-SR4

QSFP-100G-SR4

QSFP-100G-PSM4

QSFP-100G-PSM4

QSFP-100G-ER4

QSFP-100G-ER4

QSFP-100G-ZR4

QSFP-100G-ZR4

Wavelength
1310nm
850nm
1310nm
1310nm
1310nm
Transmission Distance
10km
70m(@OM3)/(100m@OM4)
2km
30km(no FEC)40km(FEC)
80km(FEC)
Media
SMF
MMF
SMF
SMF
SMF
TX Power
-2.9~4.5dBm
-8.4~2.4dBm
-5.5~2dBm
-2.9~4.5dBm
2.0~4.5dBm
Typical Power Consumption
≤3.5W
≤3.5W
≤3.5W
≤4.5W
≤6.5W
Commercial Temperature Range
0~70°C
0~70°C
0~70°C
0~70°C
0~70°C
Top OEMs
NADDOD
NADDOD
NADDOD
NADDOD
NADDOD
NADDOD optical transceivers/DAC/AOC are compatible with over 140+ well-known brands of networking equipment on the market, such as Cisco, Juniper, Arista, and H3C.
NADDOD has set up a series of testing procedures to ensure the compatibility of optical transceivers, including TX/RX signal quality testing, reliability and stability testing, transmission rate and protocol testing, and spectral evaluation testing. Apart from this, we have a professional laboratory testing center to ensure that all optical transceivers are tested on real machines.
Quality Certification
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
What We Supply
Specifications
Product Type
QSFP-100G-LR4
Vendor Name
NADDOD
Form Factor
QSFP28
Max Data Rate
103.125Gbps
Wavelength
1310nm
Transmission Distance
10km
Connector
Duplex LC
Media
SMF
Transmitter Type
DML
Receiver Type
PIN
TX Power
-4.3~4.5dBm
Receiver Sensitivity
< -8.6dBm
Typical Power Consumption
≤4.5W
Commercial Temperature Range
0~70°C
DDM
Supported
EMC ( Magnetic Compatibility)
Supported
Modulation Mode
NRZ
CDR
TX & RX Built-in CDR
Protocols
IEEE 802.3ba, SFF-8636,QSFP28 MSA
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic
