NVIDIA/Mellanox MCP1650-V00AE30 Compatible 0.5m (1.6ft) 200G QSFP56 Passive Direct Attach Copper Twinax Cable 30AWG

#13888
#13888
Model: Q56-200G-CU0-5
  Sold:  35
In Stock 800
Technology:
Ethernet
Ethernet
Brand:
NVIDIA/Mellanox (Ethernet)
NVIDIA/Mellanox (Ethernet)
request-free-sample
Request Sample

Item Spotlights

  • Max Power Consumption <0.1W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP56 MSA, IEEE 802.3bj, IEEE 802.3cd Standard.
  • Compliant with RoHS Environmental Standard (Lead-free).
  • 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
0.5m (1.6ft) 200G QSFP56 Passive Direct Attach Copper Twinax Cable for NVIDIA/Mellanox 30AWG
NVIDIA/Mellanox MCP1650-V00AE30 Compatible 0.5m (1.6ft) 200G QSFP56 Passive Direct Attach Copper Twinax Cable 30AWG
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Description

NVIDIA/Mellanox MCP1650-V00AE30 Compatible Direct Attach Copper Cable Ethernet 200GbE QSFP56 LSZH 0.5m Black Pulltab 30AWG

NVIDIA/Mellanox® MCP1650 compaitble passive DAC cables provide robust connections for leading-edge 200GbE systems. These cables provide 200Gb/s connectivity between devices using QSFP56 ports. It is high quality solutions provide a power-efficient replacement for active power connectivity such as fiber optic cables for short distances. Significantly reduces power consumption and EMI emission.

Specifications
Product Type
Q56-200G-CU0-5
Max Data Rate
200GbE Ethernet
ROHS Compliance
Supported
Jacket Material
PVC(LSZH), Halogen free
Modulation
4x50G PAM4
Vendor Name
NADDOD
Connector Type
QSFP56 to QSFP56
Minimum Bend Radius
35mm
Wire AWG
30AWG
Cable Length
0.5m
Cable Type
Passive Twinax
Commercial Temperature Range
0~70°C
Protocols
IEEE 802.3bj,IEEE 802.3cd,SFF-8636,SFF-8665
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic

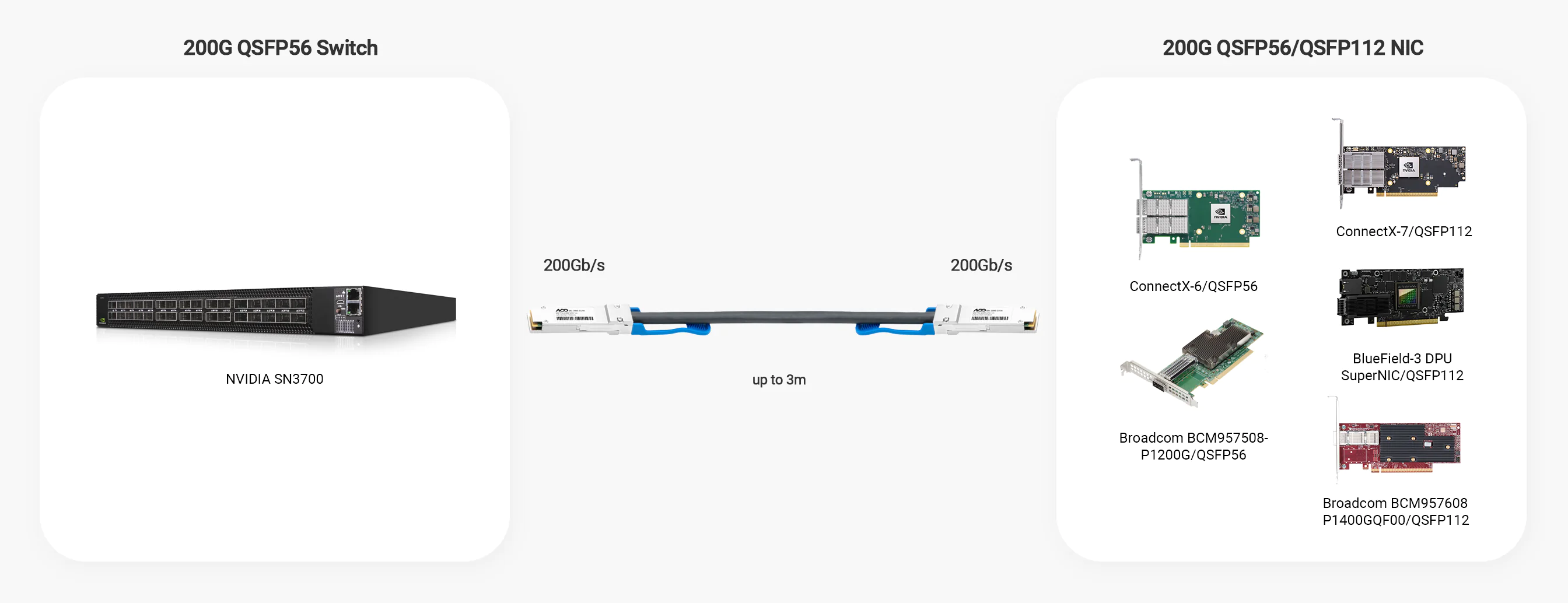

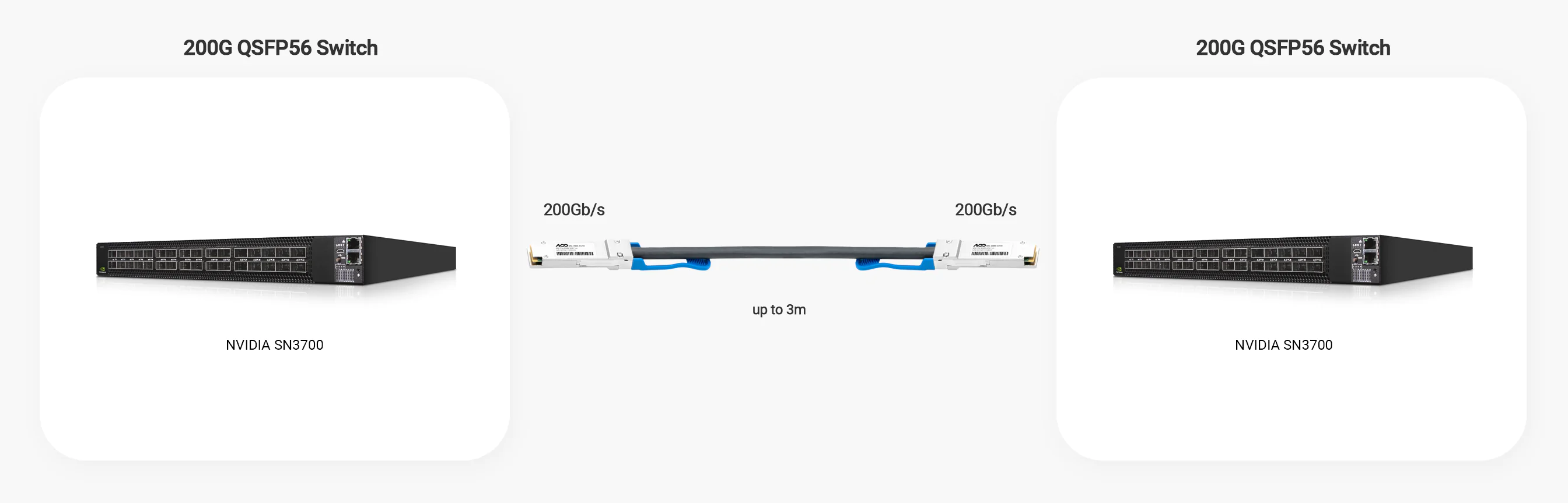

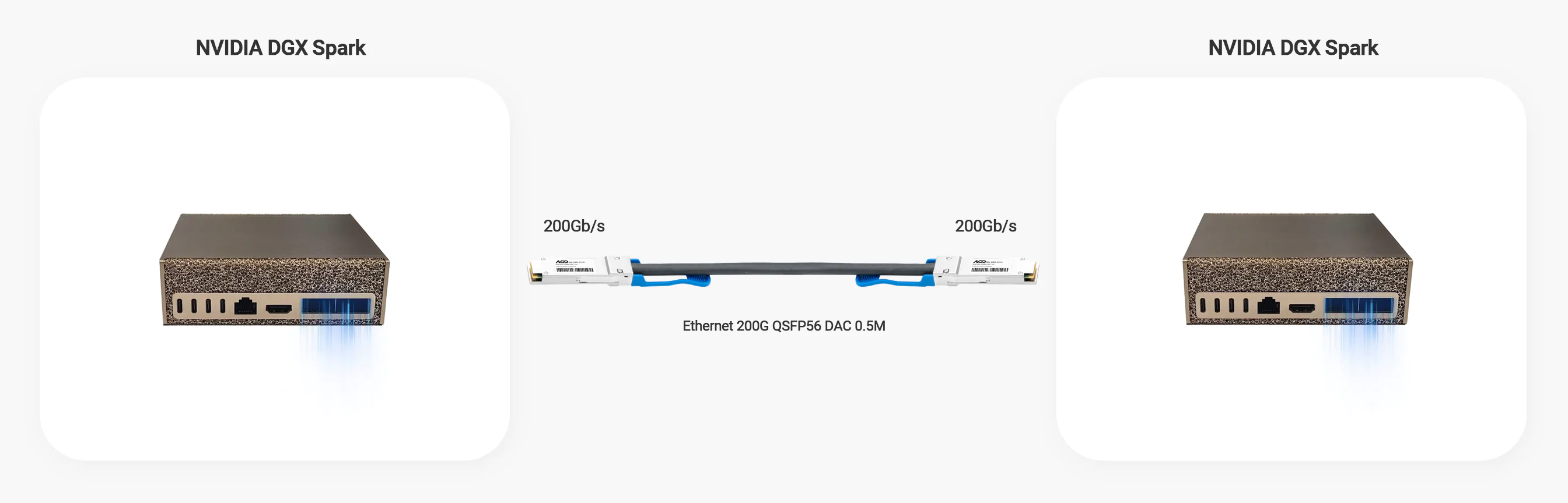

Connectivity Solutions
Spine-Leaf Architecture

The high-speed Ethernet solution based on 200G AOC/DAC offers superior connectivity performance, meeting the demands for higher data transfer rates. It enhances system throughput and response speed while effectively reducing operational costs in data centers.

Applications
View More
Product Highlights
Unique advantages of NADDOD 200G QSFP56 DAC

NADDOD 200G QSFP56 DAC adopts QSFP56 form factor. Based on four-channel PAM4 modulation technology, the single-channel rate can reach 56Gbps. It has the advantages of low power consumption and low crosstalk.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Questions & Answers
Ask a Question
Q:
What is the main application scenario for the 200Gb/s QSFP56 DAC cable?
A:
It is primarily used for short-distance interconnects, within a range of up to 3 meters, between 200G server network cards/switches in data centers and switches.
Q:
What is the AWG (American Wire Gauge) of the 200Gb/s QSFP56 direct attach passive copper cable? Is it 26AWG or 30AWG?
A:
For cables shorter than 2 meters (0.5/1.0/1.5 meters), the AWG is 30AWG. For cables 2 meters and longer, the AWG is 26AWG.
Q:
Can the ends of the 200Gb/s QSFP56 DAC cable be compatible with different brands of equipment?
A:
Yes, it is possible to match the ends of the cable with corresponding compatible devices based on the specific equipment.
