Can the ends of the 200Gb/s QSFP56 DAC cable be compatible with different brands of equipment?

Yes, it is possible to match the ends of the cable with corresponding compatible devices based on the specific equipment.

Can 200G QSFP56 products be used with a 400G QSFP-DD port?

In general, 400G QSFP-DD ports are backward compatible with QSFP56, so they can be used together.

Can a DAC cable be provided for a transmission distance of 5m?

The maximum transmission distance for a 200G DAC cable is 3m. For distances exceeding 3m, it is recommended to choose AOC (Active Optical Cable) or utilize modules and fiber patch cords.

0.5m (1.6ft) 200G QSFP56 Passive Direct Attach Copper Twinax Cable for Generic 30AWG

Click to open expanded view

Global Local Service

Lifetime Technical Support

Generic Compatible 0.5m (1.6ft) 200G QSFP56 Passive Direct Attach Copper Twinax Cable 30AWG

Name: Generic Compatible 0.5m (1.6ft) 200G QSFP56 Passive Direct Attach Copper Twinax Cable 30AWG
Brand: Naddod
SKU: 102765
Price: 66.00 USD
Availability: InStock
Rating: 5.0 (18 reviews)

#102765

Model: Q56-200G-CU0-5

Sold: 925

In Stock: 355

Types:

InfiniBand

RoCE (Ethernet)

InfiniBand

RoCE (Ethernet)

Cable Types:

Q56-200G-CU0-5

Brand:

NVIDIA/Mellanox (Ethernet)

Arista

Cisco

Dell

Generic

NVIDIA/Mellanox (Ethernet)

Arista

Cisco

Dell

Generic

Length:

0.5m (1.6ft)

0.5m (1.6ft)

Item Spotlights

100% verified and perfectly compatible with multiple devices, such as Cisco, Arista, and Broadcom, etc.
0.5m 200G QSFP56 DAC for NVIDIA DGX Spark Dual-System Interconnect.
Max Power Consumption <0.1W.
Provide Professional Compatibility and Parameter Test Reports.
Compliant with Hot Pluggable QSFP56 MSA, IEEE 802.3bj, IEEE 802.3cd Standard.
Compliant with RoHS Environmental Standard (Lead-free).
30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Generic Compatible 0.5m (1.6ft) 200G QSFP56 Passive Direct Attach Copper Twinax Cable 30AWG

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Form Factor

QSFP56 to QSFP56

Cable Length

0.5~3m

Wire AWG

26~30AWG

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Jacket Material

PVC

Power Consumption

<0.1W

Minimum Bend Radius

37mm~47mm

Application

200G Ethernet Compliant

Connectivity Solutions

Spine-Leaf Architecture

The high-speed Ethernet solution based on 200G AOC/DAC offers superior connectivity performance, meeting the demands for higher data transfer rates. It enhances system throughput and response speed while effectively reducing operational costs in data centers.

Applications

Product Highlights

Unique advantages of NADDOD 200G QSFP56 DAC

NADDOD 200G QSFP56 DAC adopts QSFP56 form factor. Based on four-channel PAM4 modulation technology, the single-channel rate can reach 56Gbps. It has the advantages of low power consumption and low crosstalk.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Questions & Answers

Ask a Question

What is the main application scenario for the 200Gb/s QSFP56 DAC cable?

It is primarily used for short-distance interconnects, within a range of up to 3 meters, between 200G server network cards/switches in data centers and switches.

Can I directly interconnect two DGX Spark systems?

Yes. With the built-in ConnectX-7 (200GbE), two DGX Spark systems can be directly connected using a 0.5m 200G QSFP56 DAC cable, enabling efficient and power-saving clustering.

What is the AWG (American Wire Gauge) of the 200Gb/s QSFP56 direct attach passive copper cable? Is it 26AWG or 30AWG?

For cables shorter than 2 meters (0.5/1.0/1.5 meters), the AWG is 30AWG. For cables 2 meters and longer, the AWG is 26AWG.

Customer Reviews

5.0

7 Reviews

5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

All Reviews (7)

v***k
Verified Purchase
v***k
Verified Purchase
5.0
For 200G cluster interconnections, DAC is the most cost-effective choice.
Helpful (9)Comments
n***2
Verified Purchase
n***2
Verified Purchase
5.0

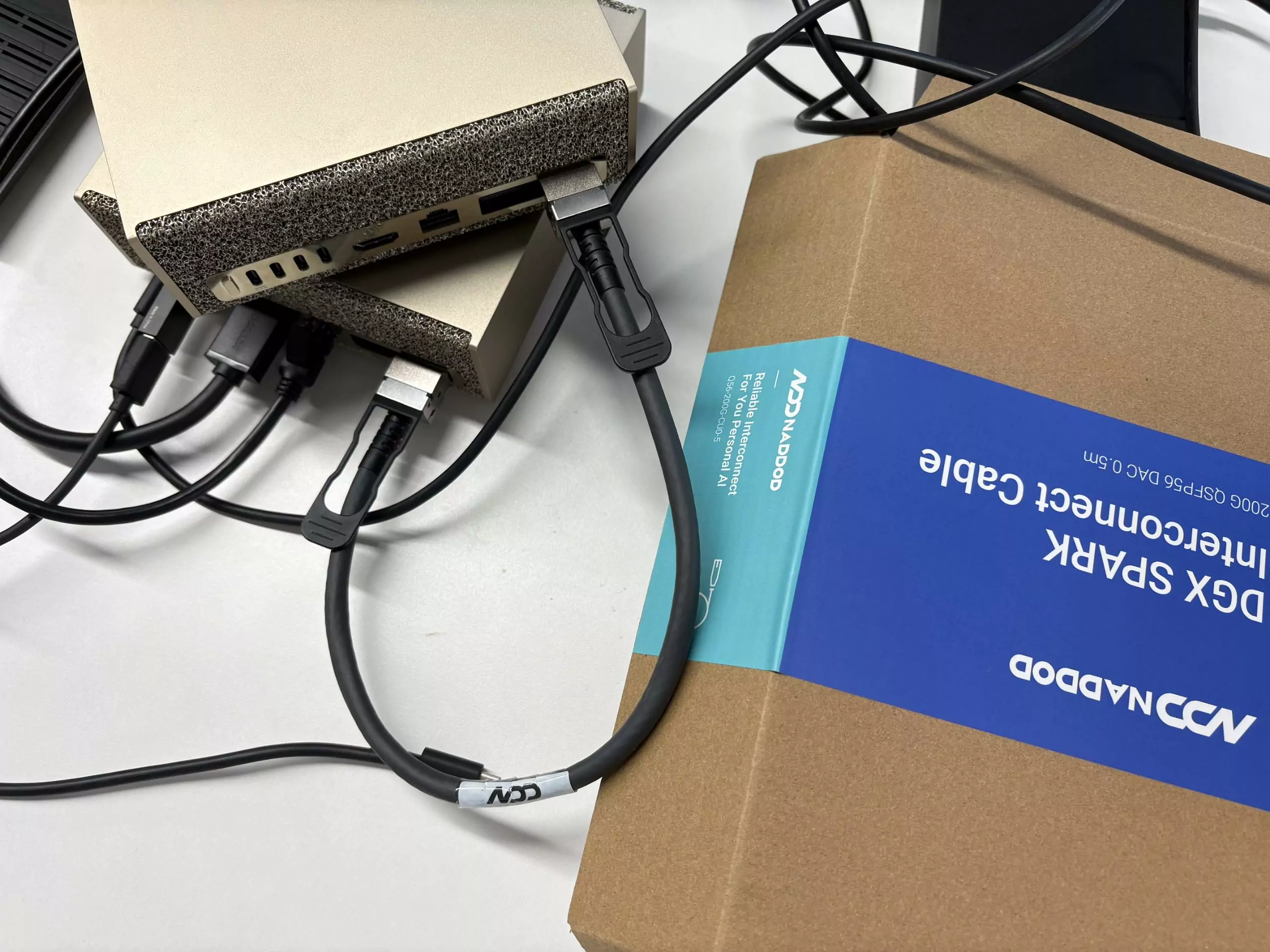

Used this NADDOD 200G QSFP56 0.5m DAC to connect two DGX Sparks—man, it runs stable and smooth, totally fits their dual-unit interconnection!
Helpful (7)Comments
b***e
Verified Purchase
b***e
Verified Purchase
5.0

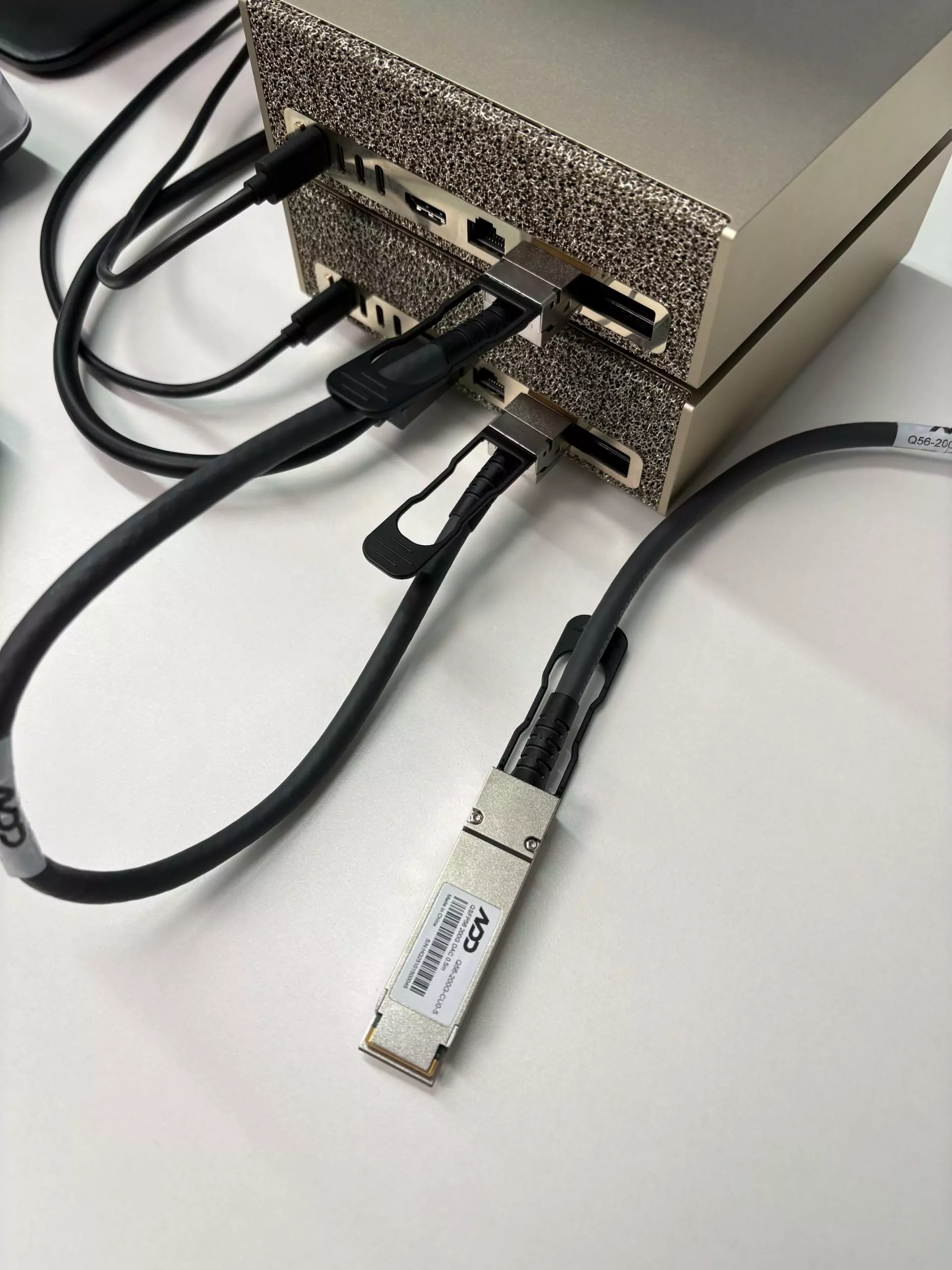

I specifically bought two of these 0.5m 200G DAC cables to connect my two DGX Spark units. I use one DAC for daily use, and the other as a backup. The single DAC delivers excellent stability and fast connectivity—no issues at all. The materials feel sturdy, and this redundancy setup gives great peace of mind. If you want reliable connectivity for your DGX Spark, grabbing two is a smart choice!
Helpful (6)Comments
v***g
Verified Purchase
v***g
Verified Purchase
5.0
We built a compact inference cluster using DGX Spark and M3 Ultra Mac, and the overall performance exceeded expectations. The DGX Spark handles the prefill stage, delivering up to 100 TFLOPS (FP16) of compute power for high-throughput model processing, while the M3 Ultra manages the decode stage, leveraging its 819GB/s memory bandwidth for efficient KV cache handling. Although the DGX Spark’s memory bandwidth is one-third of the M3 Ultra’s, its floating-point performance is four times higher. Inspired by the VR200 NVL144 CPX design, this architecture achieves a cost-effective yet well-balanced distributed inference solution.
Helpful (5)Comments
i***r
Verified Purchase
i***r
Verified Purchase
5.0
Bulk purchases are delivered quickly.
Helpful (3)Comments
