We have some QM9700 NDR switches connected with original InfiniBand cables. Will there be compatibility issues if we use them with your cables?

NADDOD InfiniBand cables comply with international standards, featuring excellent interoperability and compatibility. They work seamlessly with original cables.

What are the application scenarios of the O4Q56-400G-DACH cable?

It is mainly used to connect Quantum-2 NDR InfiniBand switches to HDR100 switches, ConnectX-6/7 QSFP56/QSFP112 network cards, and BlueField-2/3 DPUs.

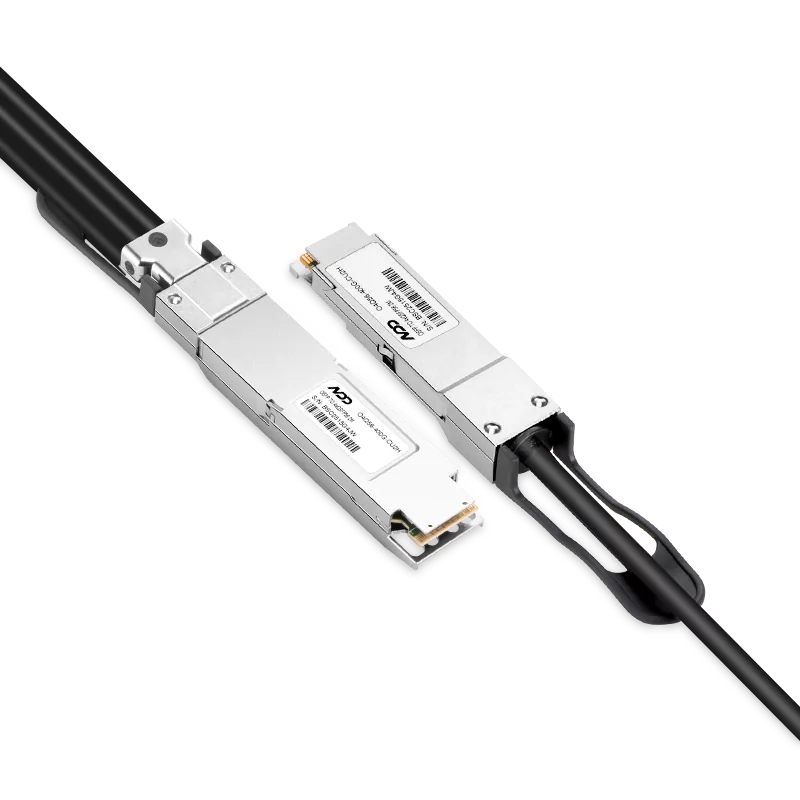

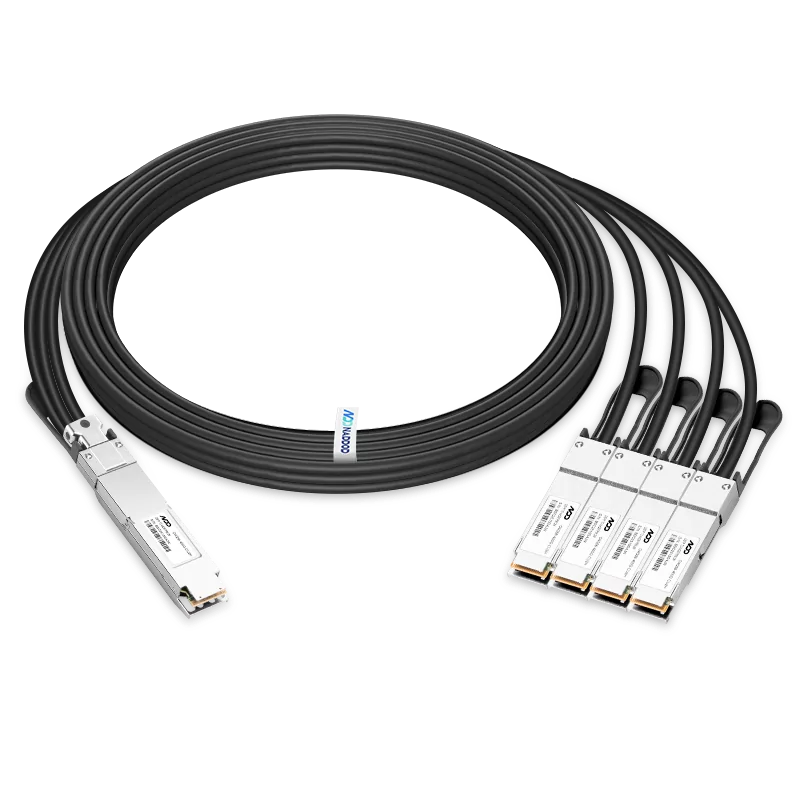

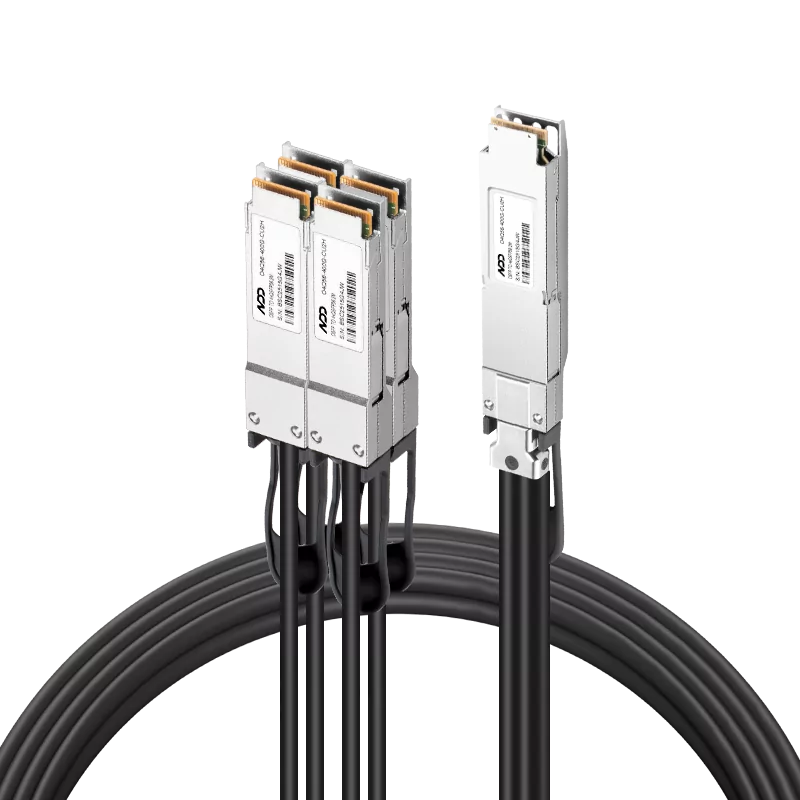

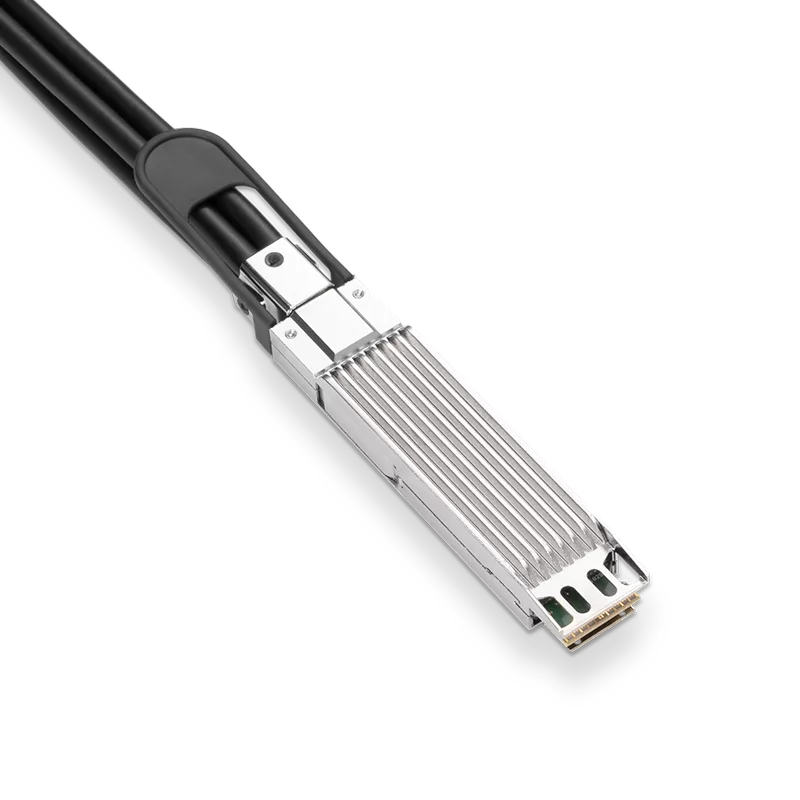

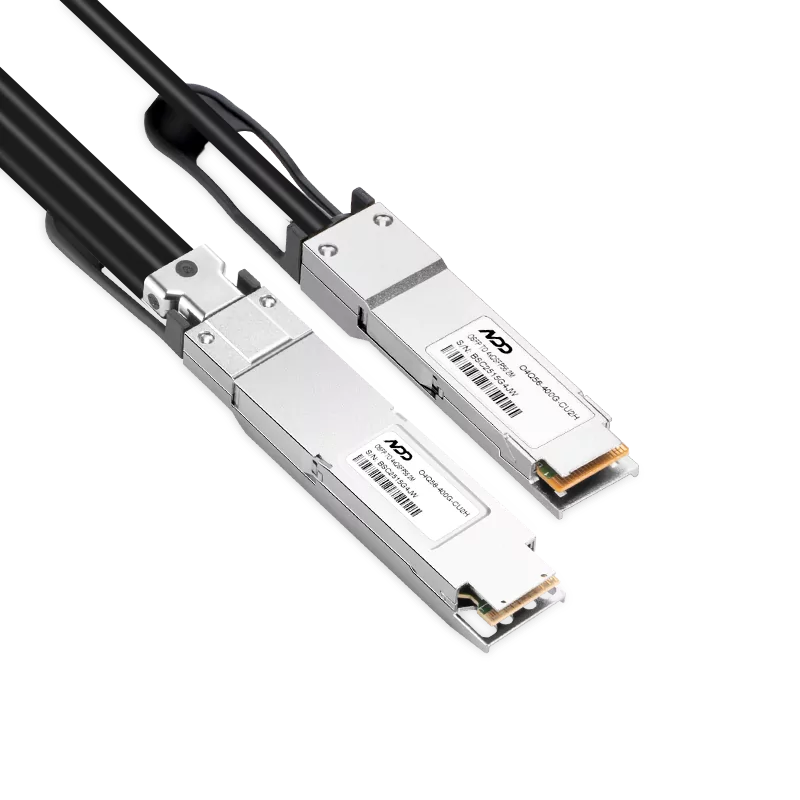

2m (7ft) 400G OSFP to 4X100G QSFP56 Breakout InfiniBand HDR Passive Direct Attach Copper for Mellanox

Click to open expanded view

Global Local Service

Lifetime Technical Support

NVIDIA/Mellanox MCP7Y70-H002 Compatible DAC 2m (6.6ft) 400Gb/s OSFP to 4x100Gb/s QSFP56 InfiniBand HDR Passive Copper Splitter Cable

Name: NVIDIA/Mellanox MCP7Y70-H002 Compatible DAC 2m (6.6ft) 400Gb/s OSFP to 4x100Gb/s QSFP56 InfiniBand HDR Passive Copper Splitter Cable
Brand: Naddod
SKU: 103052
Price: 209.00 USD
Availability: InStock
Rating: 5.0 (18 reviews)

#103052

Model: O4Q56-400G-CU2H

Sold: 0

In Stock: 7

Cable Types:

O4Q56-400G-CU2H

O4Q56-400G-CU2H

Brand:

NADDOD (InfiniBand)

Length:

2m (7ft)

2m (7ft)

Item Spotlights

100% verified by the original, perfectly compatible with NVIDIA QM9700/9790 devices.
Tested for compatibility with multiple firmware versions, compliant with IBTA Industrial BER standards.
Free test environment and samples are available to experience the high-quality product performance.
Complies with OSFP MSA, CMIS 5.0, SFF-8636, and RoHS protocols, providing a reliable and sustainable solution.
30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

NVIDIA/Mellanox MCP7Y70-H002 Compatible DAC 2m (6.6ft) 400Gb/s OSFP to 4x100Gb/s QSFP56 InfiniBand HDR Passive Copper Splitter Cable

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Resources

Description

NVIDIA/Mellanox MCP7Y70-H002 Compatible DAC 2m (6.6ft) 400Gb/s OSFP to 4x100Gb/s QSFP56 InfiniBand HDR Passive Copper Splitter Cable

NADDOD O4Q56-400G-CU2H is a passive Direct Attach Copper (DAC) cable with an OSFP-based twin-port 2x 200Gb/s connector to four QSFP56. DAC cables are the lowest-cost, lowest-latency, near zero power consuming, high-speed links available due to their simplicity of design and minimal components. Main use is linking Quantum-2 NDR InfiniBand switches to HDR100 switches, ConnectX-6/7 adapters, and/or BlueField-2/3 DPUs.

Specifications

Form Factor

OSFP to 4xQSFP56

Cable Length

1m~3m

Wire AWG

28AWG~30AWG

Commercial Temperature Range

0~70°C (32 to 158°F)

Jacket Material

PVC

Power Consumption

<0.1W

Minimum Bend Radius

10x OD

Application

IB HDR, 100G/400G Ethernet Compliant

Applications

Product Highlights

Questions & Answers

Ask a Question

If I only use one splitter of the 1-to-4 InfiniBand cable and leave the other splitters unconnected to the network card, will it affect the performance of the used splitter?

No, it won't. Once the port is configured for splitting, the device internally recognizes four logical sub-ports. Each splitter corresponds to a separate logical sub-port, so they operate independently without interfering with one another.

Why are there no NDR AOCs?

OSFP transceivers are big and heavy, which makes the fibers inside the AOC easy to break. A 2-splitter cable has 3 large transceiver ends, while a 4-splitter one has 5. This almost certainly increases the risk of fiber breakage during installation—especially for 30-meter AOCs.

What is the maximum transmission distance of the O4Q56-400G-DACH cable?

The passive DAC can provide a maximum transmission distance of 3 meters.
