Arista QSFP-200G-SR4 Compatible 200GbE SR4 QSFP56 PAM4 850nm 100m MPO/MTP-12 UPC Optical Transceiver Module for MMF

#101780
Model: Q56-200G-SR4
Sold: 101
In Stock: 118
$ 175.00

Item Spotlights

  • Max Power Consumption ≤4.5W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP56 MSA, IEEE 802.3bs Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
200GBASE-SR4 QSFP56 PAM4 850nm 100m MMF Module for Arista
Arista QSFP-200G-SR4 Compatible 200GbE SR4 QSFP56 PAM4 850nm 100m MPO/MTP-12 UPC Optical Transceiver Module for MMF
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Specifications
Form Factor
QSFP56
Distance
100m
Wavelength
850nm
Connector
MTP/MPO-12 UPC
Power Consumption
≤4.5W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation(electrical )
4x53.125Gb/s PAM4
Modulation(Optical )
4x53.125Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
200G Ethernet Compliant

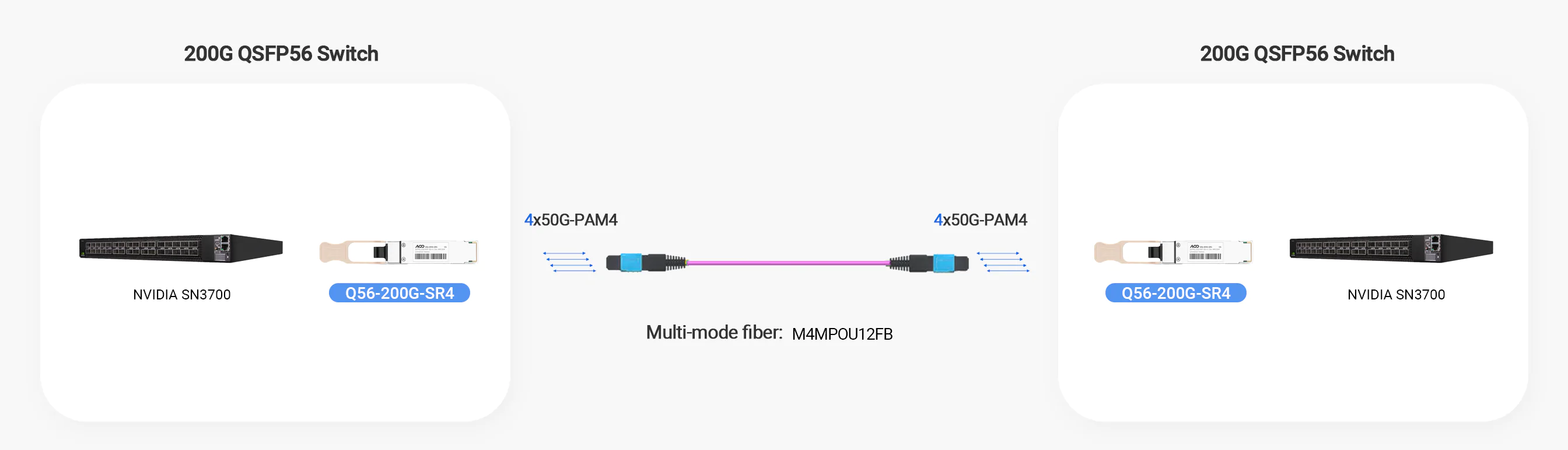

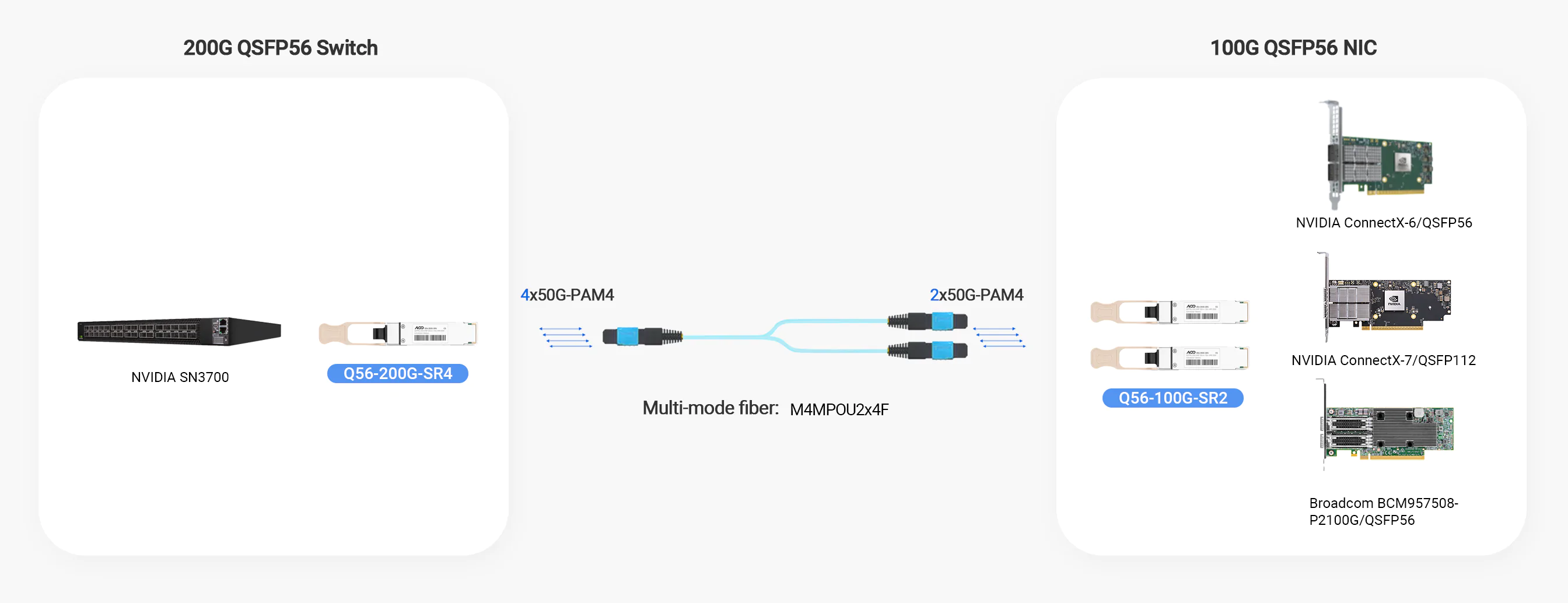

Connectivity Solutions
The Spine-Leaf Network Architecture

The architecture is a high-performance, scalable network structure that provides high-speed, low-latency network connectivity, ensuring smooth communication between servers and other devices. It is suitable for large-scale data centers and cloud computing environments.

Applications
Product Highlights
Lower Thermal Resistance and Higher Thermal Performance

NADDOD optimizes PCB routing and case thermal conductivity to reduce EMI and supply voltage of functional circuits, ensuring optimal performance.

More Cost-effective of PAM4 Modulation

The 200G QSFP56 transceivers are suitable for ultra-large Data Center networks. It adopts PAM4 modulation cheme and total rate of transmission up to 212.5Gb/s. The signal bit rate is twice that of 200G QSFP-DD transceiver, which adopts "NRZ" modulation cheme. Meanwhile, PAM4 can increase network bandwidth without adding more fiber, while saving fiber cost.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Standardized Service
Questions & Answers
Ask a Question
Q:
Can 100G rate want to complete a rate upgrade without changing fiber types?
A:
The 200G SR4 has the same interface type as the 100G SR4, allowing for a simple upgrade from 100G to 200G without changing the fiber type.
Q:
Can 200G QSFP56 SR4 optical modules be used on QSFP28 ports?
A:
No. QSFP56 ports can use QSFP56 or QSFP28 optical modules, but QSFP56 optical modules cannot be used on QSFP28 ports.
Q:
What is the modulation method used in the QSFP56 SR4 transceiver?
A:
The 200G QSFP transceiver uses four electrical channels in each direction, operating at a data rate of 50Gb/s PAM-4, to enable a total bandwidth of 200Gb/s.
View More
Customer Reviews
4.6
5 Reviews
  • 5 Star
    20%
  • 4 Star
    0%
  • 3 Star
    0%
  • 2 Star
    0%
  • 1 Star
    0%
All Reviews (5)
  • Verified Purchase
    Verified Purchase
    4.5
    Our products have been tested on NVIDIA SN3700 switches and NVIDIA MCX623105AN-VDAT NICs and are running very stable.
    Helpful (3)Comments
  • Verified Purchase
    Verified Purchase
    4.5
    We were looking for a product to replace our 15M 200G AOC cable and the techs at NADDOD recommended the 200G QSFP56 SR4, a module that helps us connect to longer distances, which is perfect.
    Helpful (4)Comments
  • Verified Purchase
    Verified Purchase
    4.5
    This product has been tested on our network equipment for three weeks with no failures, it has been very stable and the quality of the product is very good.
    Helpful (7)Comments
  • Verified Purchase
    Verified Purchase
    5.0
    This module has very good performance and stability, and we think this module is also very reasonably priced and cost effective.
    Helpful (3)Comments
  • Verified Purchase
    Verified Purchase
    4.5
    The 200G optical modules are very compatible with a wide range of devices. This allows us to upgrade equipment or expand networks without worrying about compatibility issues.
    Helpful (6)Comments
