Arista QSFP-200G-FR4 Compatible 200GBASE-FR4 QSFP56 PAM4 1310nm 2km DOM Duplex LC Transceiver Module for SMF

#32682
Model: Q56-200G-FR4
Sold: 110
In Stock: 59
$ 790.00
Transceiver Types:
Q56-200G-FR4
Q56-200G-FR4

Item Spotlights

  • Max Power Consumption ≤5W
  • Provide Professional Compatibility and Parameter Test Reports
  • Compliant with Hot-Pluggable QSFP56 MSA, IEEE 802.3bs Standard
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free)
  • DDM(Digital Diagnostic Monitoring) Supported
  • 1-Month Free-return, 3-Year Free-replacement, Lifetime After-sales Technical Support
200GBASE-FR4 QSFP56 PAM4 1310nm 2km SMF Module for Arista
Arista QSFP-200G-FR4 Compatible 200GBASE-FR4 QSFP56 PAM4 1310nm 2km DOM Duplex LC Transceiver Module for SMF
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Specifications
Form Factor
QSFP56
Distance
2km
Wavelength
1310nm
Connector
Duplex LC
Power Consumption
≤5W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation(electrical )
4x53.125Gb/s PAM4
Modulation(Optical )
4x53.125Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
200G Ethernet Compliant
Connectivity Solutions

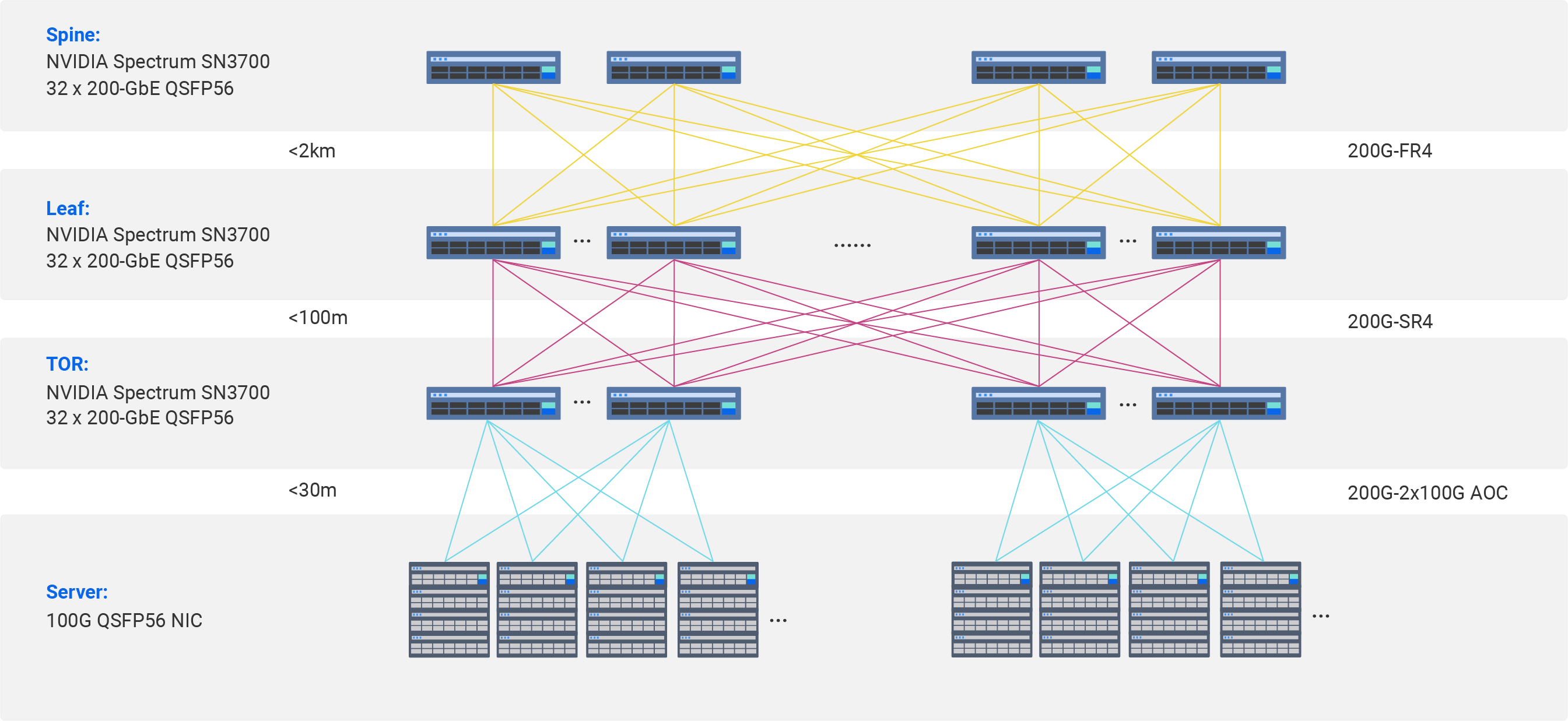

The Spine-Leaf Network Architecture

The architecture is a high-performance, scalable network structure that provides high-speed, low-latency network connectivity, ensuring smooth communication between servers and other devices. It is suitable for large-scale data centers and cloud computing environments.

Applications
Product Highlights
Lower Thermal Resistance and Higher Thermal Performance

NADDOD optimizes PCB routing and case thermal conductivity to reduce EMI and supply voltage of functional circuits, ensuring optimal performance.

More Cost-effective of PAM4 Modulation

The 200G QSFP56 transceivers are suitable for ultra-large Data Center networks. It adopts PAM4 modulation cheme and total rate of transmission up to 212.5Gb/s. The signal bit rate is twice that of 200G QSFP-DD transceiver, which adopts "NRZ" modulation cheme. Meanwhile, PAM4 can increase network bandwidth without adding more fiber, while saving fiber cost.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Standardized Service
Questions & Answers
Ask a Question
Q:
What modulation is used in 200G QSFP56 FR4 optical module?
A:
The modulation of 200G QSFP56 FR4 optical module is 4X50G PAM4 on both the electrical side and optical side.
Q:
What is the transmission distance of 200G QSFP56 FR4?
A:
The maximum transmission distance of 200G QSFP56 FR4 is up to 2km.
Q:
What kind of fiber is used to interconnect the 200G QSFP56 FR4?
A:
The 200G QSFP56 FR4 is a duplex LC interface and can be used with regular single-mode fiber with LC connectors.
View More
Customer Reviews
4.5
4 Reviews
  • 5 Star
    0%
  • 4 Star
    0%
  • 3 Star
    0%
  • 2 Star
    0%
  • 1 Star
    0%
All Reviews (4)
  • Verified Purchase
    Verified Purchase
    4.5
    200G optical module transmission rate is very fast, improve our data processing capacity.
    Helpful (5)Comments
  • Verified Purchase
    Verified Purchase
    4.5
    Modules can be configured according to our needs, which is very convenient and flexible to adapt to our different application scenarios.
    Helpful (5)Comments
  • Verified Purchase
    Verified Purchase
    4.5
    The item arrived quickly after the order was placed, faster than any of my previous purchases.
    Helpful (7)Comments
  • Verified Purchase
    Verified Purchase
    4.5
    The 200G FR4 optical module is very easy to install and use, with simple interfaces and plug-and-play features, making it easy to integrate it into existing networks.
    Helpful (5)Comments
