What is the difference between OSFP-800G-ACCH and OSFP-800G-DACH?

OSFP-800G-DACH is a passive copper cable with a connector that does not contain active components, provides a direct electrical connection between the corresponding cable ends, and has a maximum transmission distance of 2m. An ACC is a passive DAC with a pre-emphasis equalizer lC included in each end, which can extend the length of the cable; OSFP-800G-ACCH can extends the length to 3m, 4m, and 5m while maintaining low latency and low power consumption of 1.5W per end.

1m (3ft) 800G OSFP InfiniBand NDR Passive Direct Attach Copper Twinax Cable for Mellanox

Click to open expanded view

Global Local Service

Lifetime Technical Support

NVIDIA/Mellanox MCP4Y10-N001 Compatible DAC 1m (3ft) Twin-port 2x400Gb/s OSFP Finned Top to 2x400Gb/s OSFP Finned Top InfiniBand NDR Passive Copper Cable

Name: NVIDIA/Mellanox MCP4Y10-N001 Compatible DAC 1m (3ft) Twin-port 2x400Gb/s OSFP Finned Top to 2x400Gb/s OSFP Finned Top InfiniBand NDR Passive Copper Cable
Brand: Naddod
SKU: 101034
Price: 139.00 USD
Availability: InStock
Rating: 5.0 (18 reviews)

#101034

Model: OSFP-800G-CU1H | SKU: 980-9IA0F-00N001

Sold: 378

In Stock: 30

$ 139.00

Types:

InfiniBand

RoCE (Ethernet)

InfiniBand

RoCE (Ethernet)

Cable Types:

OSFP-800G-CU1H

OSFP-800G-CU1H

Brand:

NADDOD (InfiniBand)

Length:

1m (3ft)

1m (3ft)

Item Spotlights

100% verified by the original, perfectly compatible with NVIDIA QM9700/9790 devices.
Tested for compatibility with multiple firmware versions, compliant with IBTA Industrial BER standards.
Free test environment and samples are available to experience the high-quality product performance.
Complies with OSFP MSA, CMIS 5.0, and RoHS protocols, providing a reliable and sustainable solution.
30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

NVIDIA/Mellanox MCP4Y10-N001 Compatible DAC 1m (3ft) Twin-port 2x400Gb/s OSFP Finned Top to 2x400Gb/s OSFP Finned Top InfiniBand NDR Passive Copper Cable

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Description

NVIDIA/Mellanox MCP4Y10-N001 Compatible 1m (3ft) Twin-port 2x400Gb/s OSFP Finned Top to 2x400Gb/s OSFP Finned Top Passive Copper Cable

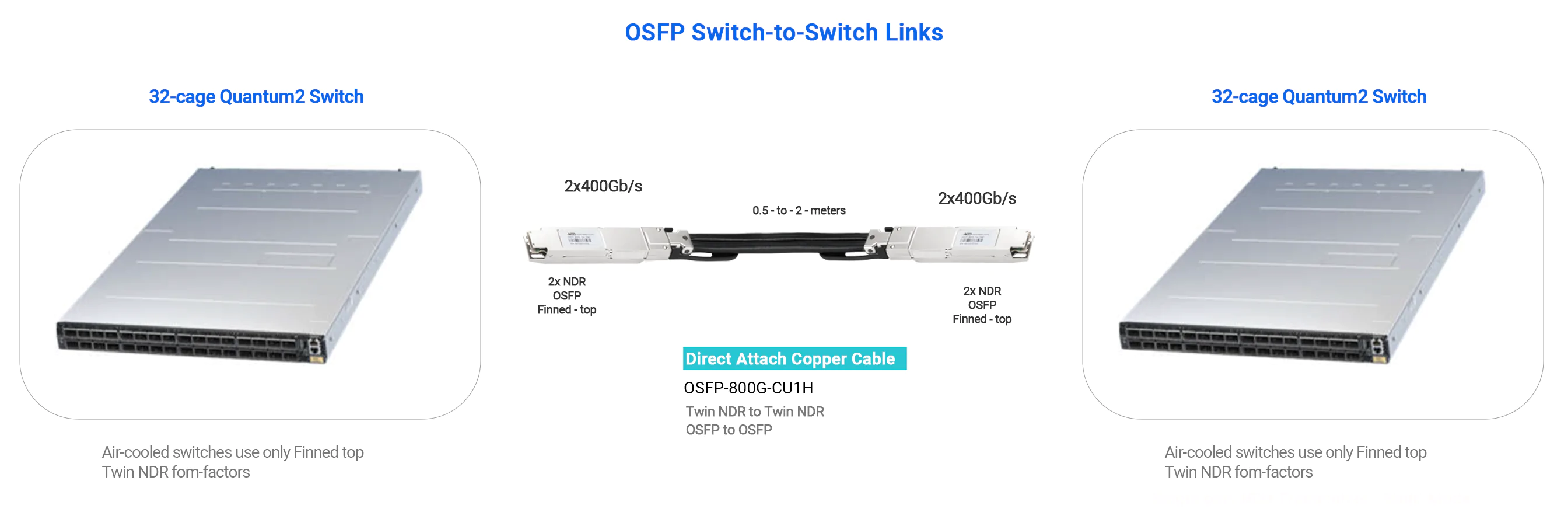

NADDOD OSFP-800G-CU1H is a 2x400Gb/s twin-port OSFP (Octal Small Formfactor Pluggable) Finned Top to 2x400Gb/s twin-port OSFP Finned Top Direct Attached Copper cable (DAC). DAC cables are the lowest-cost, lowest-latency, near zero power consuming, high-speed links available due to their simplicity of design and minimal components. Using the Octal Small Formfactor Plug (OSFP) and containing eight high-speed electrical copper pairs, each operating at data rates of up to 100Gb/s. NADDOD’s cable solutions provide power-efficient connectivity enabling higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Specifications

Form Factor

OSFP to OSFP

Cable Length

0.5m~3m

Wire AWG

26AWG~28AWG

Commercial Temperature Range

0~70°C(32 to 158°F)

Jacket Material

PVC

Power Consumption

<0.1W

Minimum Bend Radius

10x OD

Application

IB NDR,800G Ethernet Compliant

Applications

Product Highlights

Why NADDOD

Module Availability

Worry-Free - Rigorous authentic testing!
Multi-version Device Compatibility

Multi-Version - Easy adaptation for each module!
High-Performance

Actual Test Data-Better results intuitively!

Our Approach

Test scene

NADDOD stringently selects a series of items in a professional testing environment to ensure the perfect blend of product performance and reliability. Including hardware compatibility (plugging, unplugging, rebooting), software compatibility (connectivity, parameters) and performance testing (DDM, BER, stability).

Test result

QM9700 Version:3.11.1002

Multi-Version

Switch Side Testing

Multi-Version Testing

No matter the device version, the optical modules are rigorously tested to ensure seamless integration with various hardware and software versions.
Connectivity

Switch Side Testing

Connectivity Testing

The module can connect to both devices normally, and the device port status is up.
BER

Switch Side Testing

BER Testing

Tests REAL-TIME BER to ensure the accuracy of data transmission under high load conditions.

Questions & Answers

Ask a Question

Why are there no NDR AOCs?

OSFPs are very large and heavy and the fiber breaks easily. A two-splitter cable will have three large transceiver ends. A four-splitter cable will have five transceivers. That would almost certainly make it easy to break the fiber during installation - especially for a 30 meter AOC.

What is the maximum transmission distance of the OSFP-800G-DACH cable?

The passive DAC can provide up to 3M.

We have some QM9700 NDR switches connected with original IB cables, if we use them together with your cables will there be any incompatibility problems?

NADDOD IB cables meet international standards, with good interoperability and compatibility, and are able to be paired together with the original cables.
