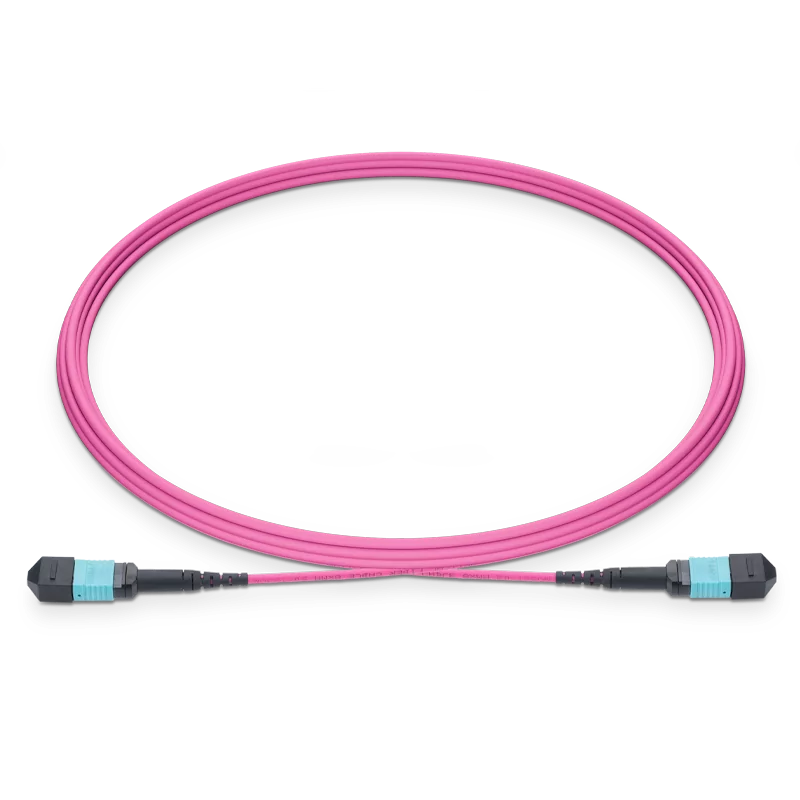

OM4 1m (3ft) MPO to MPO Female 12 Fibers Type B Elite Trunk Cable

Click to open expanded view

OM4 1m (3ft) MPO to MPO Female 12 Fibers Type B Elite Trunk Cable

OM4 1m (3ft) MPO to MPO Female 12 Fibers Type B Elite Trunk Cable

Global Local Service

Lifetime Technical Support

1m (3ft) MPO-12 (Female) to MPO-12 (Female) Magenta OM4 12 Fibers Type B LSZH Multimode Elite Trunk Cable 3mm

#34617

Model: M4MPOU12FB

Sold: 0

In Stock: Available

$ 20.00

Item Spotlights

Optimal 0.15dB Typ. IL with MPO Connector
7.5mm Min. Bend Radius Corning ClearCurve® Fiber
OFNP (Plenum) Fire Rating
IEC-61754-7 and TIA-604-5 (FOCIS-5)
Ideal for 40G/100G Indoor Connections
3 Years Warranty, Lifetime After-sales Technical Support

OM4 1m (3ft) MPO to MPO Female 12 Fibers Type B Elite Trunk Cable

1m (3ft) MPO-12 (Female) to MPO-12 (Female) Magenta OM4 12 Fibers Type B LSZH Multimode Elite Trunk Cable 3mm

NADDOD

NADDOD

Free Worldwide Shipping on Orders over $ 99

Specifications

Product Highlights

Resources

Specifications

Product Highlights

Resources

Specifications

Connector A

MPO Female (Pinless)

Connector B

MPO Female (Pinless)

Fiber Mode

OM4 50/125μm

Wavelength

1310/1550nm

Polish Type

UPC to UPC

Minimum Bend Radius

7.5mm

Insertion Loss

0.35dB Max (0.15dB Typ.)

Return Loss

≥20dB

Attenuation at 850nm

≤2.3dB/km

Attenuation at 1300nm

≤0.6dB/km

Jacket OD

3.0mm

Cable Jacket

LSZH

Installation Tensile Load

66N

Minimum Bend Radius

7.5mm

Tensile Strength (Long/Short Term)

80/240N

Storage Temperature

-40 to 85°C (-40 to 185℉)

Operating Temperature

-10 to 70°C (14 to 158℉)

Fiber Count

12F

Certification

IEC-61754-7 and TIA-604-5 (FOCIS-5)

Polarity

Type B

Customization
