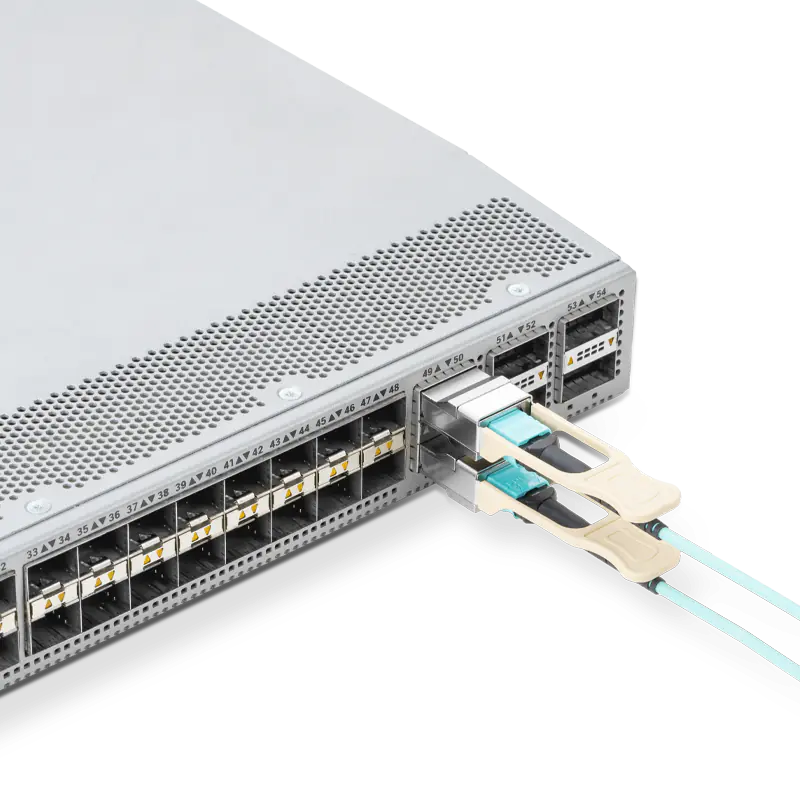

100GBASE-SR4H QSFP28 850nm 70m (OM3)/100m (OM4) MMF InfiniBand EDR Module for Mellanox

Click to open expanded view

Global Local Service

Lifetime Technical Support

Mellanox MMA1B00-E100 Compatible 100GBASE-SR4H QSFP28 850nm 70m (OM3)/100m (OM4) DOM MPO/MTP-12 InfiniBand EDR Transceiver Module for MMF, MCX556A-ECAT, MCX653106A-HDAT

Name: Mellanox MMA1B00-E100 Compatible 100GBASE-SR4H QSFP28 850nm 70m (OM3)/100m (OM4) DOM MPO/MTP-12 InfiniBand EDR Transceiver Module for MMF, MCX556A-ECAT, MCX653106A-HDAT
Brand: Naddod
SKU: 32243
Price: 81.00 USD
Availability: InStock
Rating: 4.9 (3 reviews)

#32243

Model: QSFP-100G-SR4H

Sold: 2670

In Stock : 464

Shipping Today

$ 81

Request Free Samples

Brand:

NADDOD (InfiniBand)

Item Spotlights

Designed for 100Gb/s InfiniBand EDR systems.
Compliant digital diagnostic monitoring (DDM).
Compliant with hot-pluggable QSFP28 MSA and IEEE 802.3bm Standard.
Class 1 laser safety.
Maximum power consumption 2.2W (typical).
Rigorous production testing ensures the best performance, and durability.
30-Day Free Return, 3-Year Free Exchange, 3-Year Warranty..

Mellanox MMA1B00-E100 Compatible 100GBASE-SR4H QSFP28 850nm 70m (OM3)/100m (OM4) DOM MPO/MTP-12 InfiniBand EDR Transceiver Module for MMF, MCX556A-ECAT, MCX653106A-HDAT

Free Worldwide Shipping on Orders over $ 99

Description

Connectivity Solutions

Highlights

Questions & Answers

Resources

$ 81

Description

Connectivity Solutions

Highlights

Questions & Answers

Resources

NADDOD's Mellanox MMA1B00-E100 Compatible 100GBASE-SR4H InfiniBand HPC Transceiver Module ( QSFP28, 850nm, 70m (OM3)/100m (OM4), MPO/MTP-12, DDM for MMF)

NADDOD is an Elite Partner of NVIDIA networking products, and works with NVIDIA to realize the strong combination of optical network products and solutions, especially in InfiniBand high-performance network construction and application acceleration, with deep technical interactions and rich project implementation experience, we offer Mellanox MMA1B00-E100 Compatible QSFP-100G-SR4H InfiniBand transceivers for SB7800/SB7890, MCX556A-ECAT/MCX653106A-HDAT, which are affordable ways to create high-speed fourteen data rate (FDR), enhanced data rate (EDR) with detachable optical connectors. It's a 4-channel, pluggable, QSFP28 optical transceiver designed for use in 100Gb/s EDR InfiniBand systems. This module incorporates integrated circuit technology, in order to provide high bandwidth and low latency for data center.

Specifications

Compatible

MMA1B00-E100

Product Type

QSFP-100G-SR4H

Vendor Name

NADDOD

Form Factor

QSFP28

Max Data Rate

103.125Gbps

Wavelength

850nm

Transmission Distance

70m@OM3/100m@OM4

Connector

MPO/MTP-12

Media

MMF

Transmitter Type

VCSEL

Receiver Type

TX Power

-8.4~2.4dBm

Receiver Sensitivity

< -9.2dBm

Typical Power Consumption

≤3.5W

Commercial Temperature Range

0~70°C

DDM

Supported

EMC ( Magnetic Compatibility)

Supported

Modulation Mode

NRZ

CDR

TX & RX Built-in CDR

Protocols

InfiniBand EDR, IEEE 802.3bm, SFF-8636, QSFP28 MSA

Application

100G InfiniBand EDR high-performance data center

Connectivity Solutions

ID	Part Number	Description	Unit Price
32243	QSFP-100G-SR4H	100GBASE-SR4H QSFP28 850nm 70m (OM3)/100m (OM4) MMF InfiniBand EDR Module for Mellanox	$ 81
32231	QSFP-100G-A1H	Mellanox MFA1A00-E001 Compatible 1m (3ft) 100G QSFP28 Active Optical Cable for InfiniBand SB7800, SB7890	$ 130.00
34477	M4MTPU12FB	1m (3ft) MTP®-12 (Female) to MTP®-12 (Female) Magenta OM4 12 Fibers Type B Plenum (OFNP) Multimode Elite Trunk Cable 3mm	$ 40.90
/	MSB7800-ES2F	Switch-IB™ 2 based EDR InfiniBand 1U Switch, 36 QSFP28 ports, 2 Power Supplies (AC), x86 dual core, standard depth, P2C airflow, Rail Kit	/
/	MCX555A-ECAT	ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, single-port QSFP28, PCIe3.0 x16, tall bracket	/
/	MCX556A-EDAT	ConnectX-5 Ex VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe4.0 x16, tall bracket	/

Product Highlights

Unique advantages of NADDOD 100G InfiniBand EDR transceiver

NADDOD's 100G InfiniBand EDR QSFP28 transceiver, is designed for use in high-performance application scenarios, features high port density, low power consumption, very high throughput and very low latency. It is suitable for InfiniBand, data centers, high-performance computing, cloud computing, machine learning, AI, etc.

What is InfiniBand?

InfiniBand, supported by all major OEM server vendors, is a high-performance, versatile network architecture based on a switched fabric. As a way to extend and create the next generation of server I/O interconnect standards. It has become a leading standard for high performance computing.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Quality Certification

What We Supply

Questions & Answers

Where can I download FW for QM8700 IB switch?

QM8700 do not have FW file. Because managed systems do not require Firmware updating. Firmware updating is done through the MLNX-OS management software. You can download the firmware updating file in the Resources section of the QM8790 listing, or click here for other QM87XX series switches firmware updating user manual.

If hypothetically we had a problem where we don’t know if the issue is with the NADDOD cables or with the Mellanox switches, or maybe Mellanox switch failure due to cable's problem, would you provide us technical support？

Of course. No matter what problem you have, you can just contact us directly. NADDOD will provide technical support: including switch and network configuration services to help you find out and solve problems.And please make sure: AOC/DAC cables or transceivers are networking interconnection accessories, which essentially are just a connection of signal transmission and don't cause any hardware or software problems to the original devices. NADDOD Test Center recreates a 100% original environment for testing all parts of our IB products to provide customers the highest quality and performance.

Whether the InfiniBand cables can be used on Ethernet switches？

Yes, InfiniBand cables can be used for both IB and Ethernet, but Ethernet cables can only be used for Ethernet.

Is there any 100G 10m IB AOC in stock?

Yes, of course, you can check the stock info below the product title. Our 1m-30m 100G IB cables are in large stock, which support same-day shipping after passing full test process. For other meters not shown, you can click contact us/quote/need help for inquiry. As you may know, the lead time of NVIDIA original IB cables is 6 to 8 weeks, while NADDOD can support ship within 1 week and even for your special customized requirements, our lead time is only 2 weeks.

Could you please provide two real pictures of a 10m 100G EDR AOC for me, I want to see more details about UL types of your cables on the outer label?

Okay, please check the picture below. The outer jacket materials of all our InfiniBand cables are LSZH (Low Smoke Zero Halogen) and certified by UL OFNR (fire rating level). Our cable levels are the same as NVIDIA Mellanox LinkX InfiniBand Cables.

We have some SB7790 100G switches connected with the original IB cables, whether there'll be any incompatibility problem if we use them with your cables？

NADDOD IB cables are perfect alternative option for Mellanox MFA1A00-E001, beyond IBTA industry bit-error-rate (BER) standards. We can provide the technical test report for your specified original device environment. You can also check our practical cases/solutions, which had proved that our IB products can reach even exceed the performance and quality of the originals.

Are InfiniBand cables generally referred to AOC?

No, there are two kinds of InfiniBand cables: DAC(copper) and AOC (optical). NADDOD can provide 100G InfiniBand EDR QSFP28 AOC，100G InfiniBand EDR QSFP28 DAC，100G InfiniBand EDR QSFP28 Transceivers.

What's the difference between QM8700 and QM8790 switches? Whether there is a difference in the selection of the cables？

There is no difference in function and performance between QM8700 and QM8790. QM8700 is managed, and QM8790 is unmanaged (out-of-band management). NADDOD can provide 100G IB AOC and DAC cables that can be used with the two switches.
