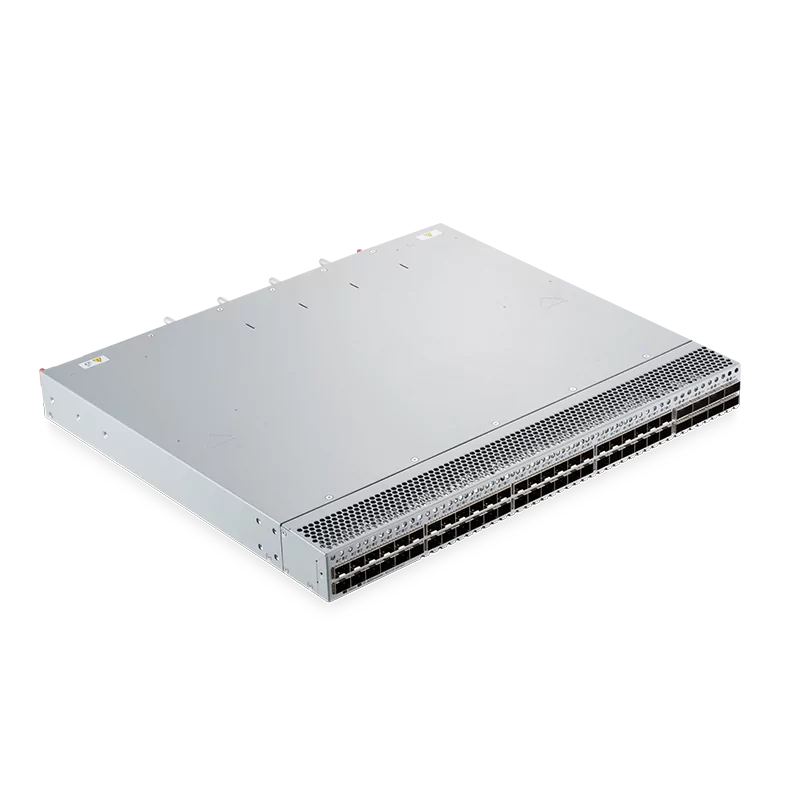

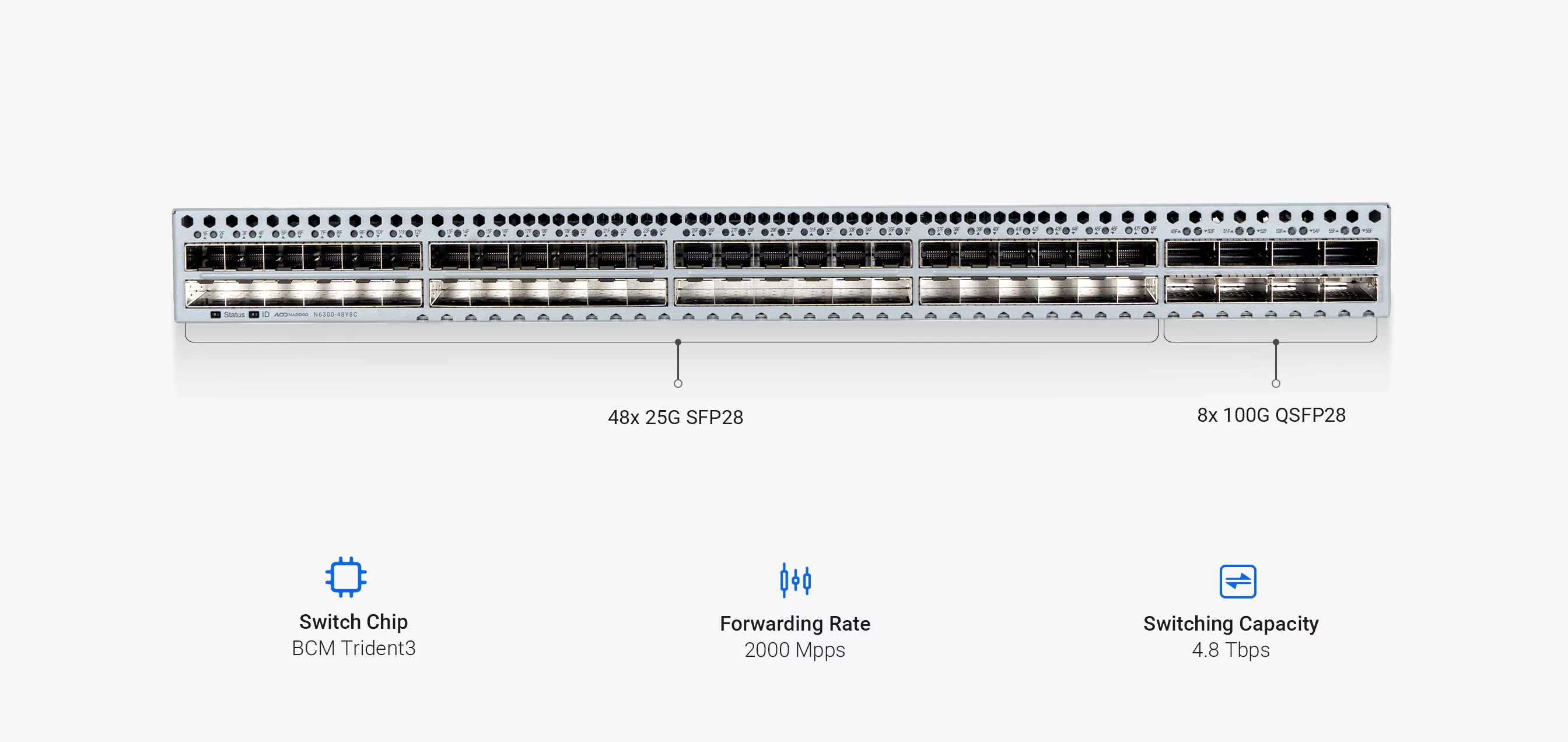

N6300-48Y8C, 48-Port Ethernet L3 Data Center Switch, 48x 25Gb SFP28 with 8x 100Gb QSFP28, Broadcom Chip, MLAG Support, Open API Interface Support, RoCE Support
N6300-48Y8C provides 48x 10G/25G ports and 8x 40/100G QSFP28 ports, supports wire-speed L2/L3 forwarding, and is set at the Leaf layer of traditional cloud center and SDN cloud center scenarios, applicable to rich scenarios such as AI, HPC, Multi-site cloud Center and other application scenarios. It can sufficiently meet users' network requirements of high performance, high availability, intelligence and visualization. N6300-48Y8C supports RoCE, PFC, DCBX and ECN, providing low-latency, zero packet loss, non-blocking lossless Ethernet with industry-leading Broadcom silicon, supporting extensive Layer 3 IPv4/IPv6 routing protocols as well as multicast protocols and standards-based VxLAN EVPN switching capabilities to meet the growing needs of data center environments, enabling scalable and flexible data center leaf spine solutions. The combination of network virtualization and RoCE enables a total solution for large high-performance data centers.
Support wire-speed L2/L3 forwarding, located in the Leaf layer of traditional cloud center and SDN cloud center scenarios, meeting the network deployment requirements of AI, HPC, HDFS, DT and other application scenarios.
Non-blocking CLOS architecture data center network for high performance, high availability and resilient network requirements.

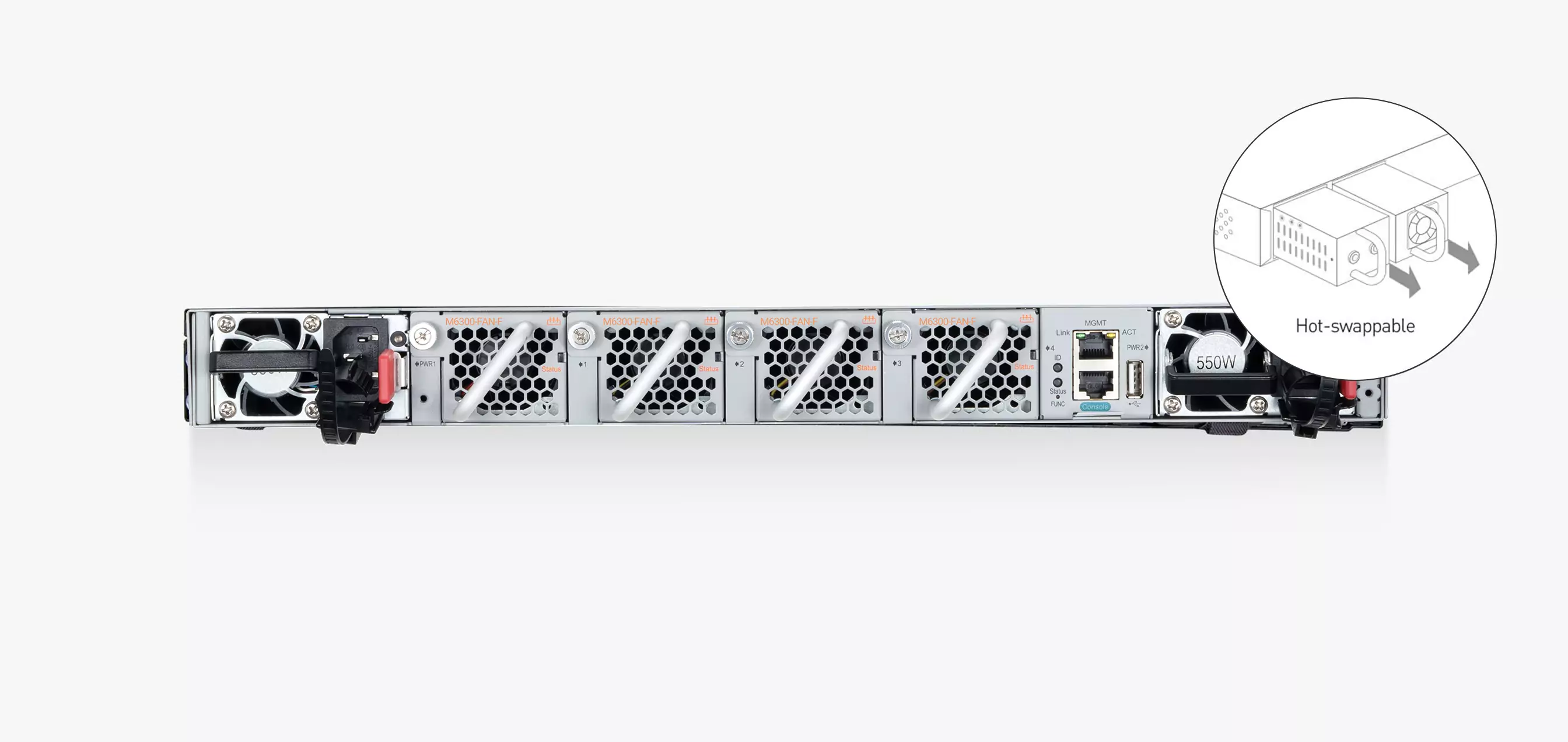

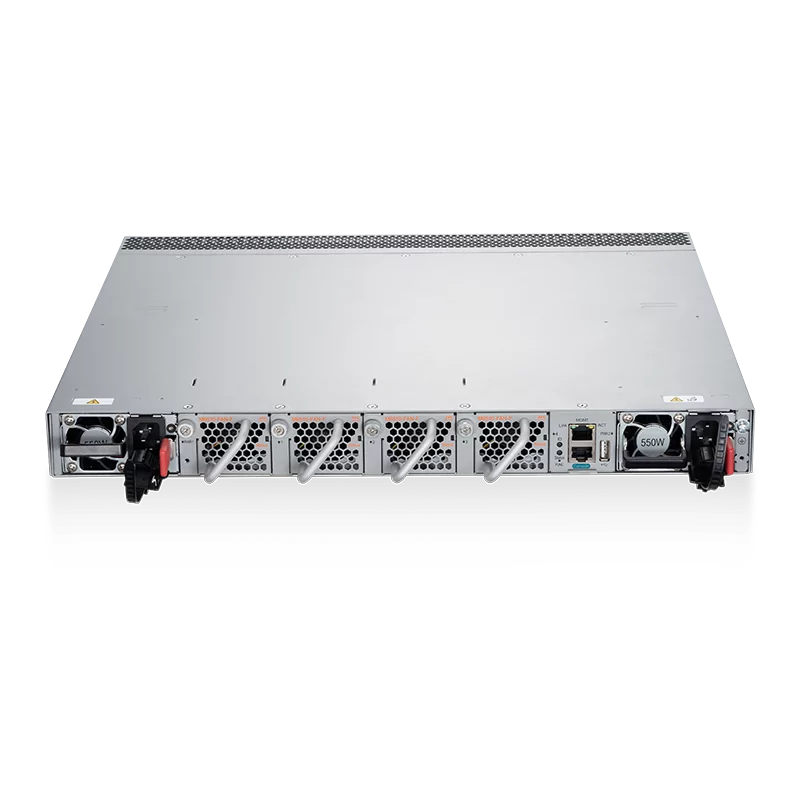

support for over-current, over-voltage and over-heat protection, and non-intermittent power supply for terminal equipment greatly improve the stability of the network. Independent BMC module design, can monitor the device's CPU, memory and other information, device restart can still monitor the device status.
M-LAG (cross-device link aggregation) allows link aggregation between multiple devices. Stacking can combine several devices into a whole device for use. Both the two functions can meet the demands for different scenarios.
 N6300-48Y8C |  N6100-48X8C |  N6300-32C |  N6400H | |
|---|---|---|---|---|
| Description | N6300-48Y8C, 48-Port Ethernet L3 Data Center Switch, 48x 10/25Gb SFP28, with 8x 40/100Gb QSFP28, Support MLAG, Broadcom Chip | N6100-48X8C, 48-Port Ethernet L3 Switch, 48x 10Gb SFP+ , with 8x 40Gb/100Gb QSFP28, Support MLAG, Support VXLAN, Support RoCE | N6300-32C, 32-Port Ethernet L3 Data Center Switch, 32x 40Gb/100Gb QSFP28, Support MLAG, Broadcom Chip | N6400H, 4-Slot 4U Ethernet L3 Data Center Switch Unloaded, 128x 40/100Gb QSFP28 | 112x 10Gb SFP+ ,with 32x 40/100Gb QSFP28, Support MLAG, Broadcom Chip, Support RoCE |
| SFP Ports | 48x 10/25G SFP28 | 8x 40/100G QSFP28 | 48x 1G/10G SFP+ | 8x 40G/100G QSFP28 | 32x 40G/100G QSFP28 | 128x 40G/100G QSFP28 |
| VXLAN | | | | |
| NVGRE | | - | | - |
| GENEVE | | - | | - |
| EVPN | | | | |
| PFC | | | | |
| ECN | | | | |
| MLAG | | | | |
| VARP | - | - | - | - |
| VRRP | - | - | - | - |
| Smartlink | | | | |
| NAT | - | - | - | - |
| OSPFv2/v3 | | | | |
| BGP4/BGP4+ | | | | |
| SFlow | | | | |
| Open API: Neutron, OVSDB, Python | | | | |
