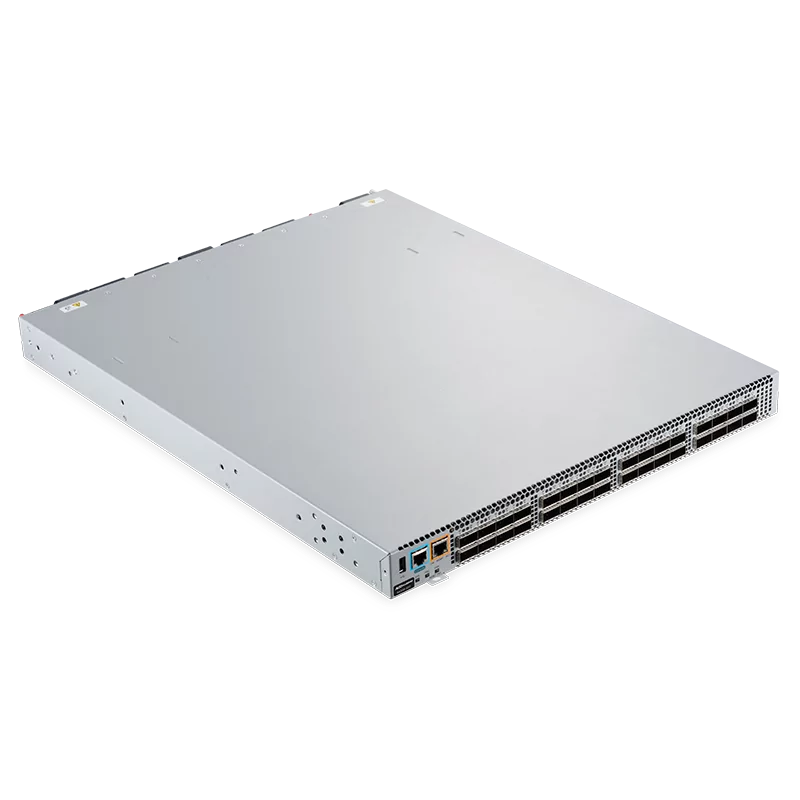

N6300-32C, 32-Port Ethernet L3 Data Center Switch, 32x 40Gb/100Gb QSFP28, Support MLAG, Broadcom Chip, Support RoCE

#18876
Model: N6300-32C
Sold: 2
In Stock: Available
$ 8459.00

Item Spotlights

  • Non-blocking CLOS-architecture data center network for high-performance
  • 32x 100G QSFP28 SFP+, Broadcom Chip, Support RoCE
  • Support Open API interfaces: Neutron, OVSDB interface, Python, automation tools
  • Support for Vx LAN-EVPN, Tunnel Routing&Bridging without any limitation, up to 32K Tunnel
  • Support Smartlink, MLAG, VARP, NAT, RIP/OSPF/BGP, PBR, VRF, BFD compatible with MEF9/14
  • Low latency, zero packet loss via PFC, ECN, RDMA over Converged Ethernet (RoCE)
  • 1+1 power redundancy, 3+1 fans redundancy, dual BIOS, dual BMC design
N6300-32C, 32x 40Gb/100Gb QSFP28, Managed Data Center Switch
N6300-32C, 32-Port Ethernet L3 Data Center Switch, 32x 40Gb/100Gb QSFP28, Support MLAG, Broadcom Chip, Support RoCE
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Description

N6300-32C, 32-Port Data Center L3 Switch with 32x 100Gb QSFP28 Ports, Broadcom Chip, MLAG Support, Open API Interface Support, RoCE Support

N6300-32C 100Gb Ethernet provides 32x 40G/100G QSFP28 ports, supports wire-speed L2/L3 forwarding, and a single port can support 1 part of 4x 25G ports or 1 part of 2x 50G ports. At the same time, it provides powerful caching capability, which can effectively respond to the burst/surge traffic of cloud center network and guarantee the requirement of non-blocking transmission of high traffic data in cloud center network, meeting the requirements of Spine-Leaf full three-layer network architecture design. N6300-32C supports RoCE, PFC, DCBX and ECN, provides low-latency, zero packet loss, non-blocking lossless Ethernet with industry-leading Broadcom silicon, supporting extensive Layer 3 IPv4/IPv6 routing protocols as well as multicast protocols, and supporting standards-based VxLAN EVPN switching capabilities to build industry-leading SDN solutions. The combination of network virtualization and RoCE enables a total solution for large high-performance data centers.

Specifications
Ports
32x 100G QSFP28
Switch Chip
BCM56870
CPU
Intel Xeon D-1527 (Quad-core, 2.2 GHz)
Number of VLANs
4K
Switching Capacity
6.4 Tbps
MAC Address
32K min/288K max
Forwarding Rate
4760 Mpps
Jumbo Frame
9600
RoCE
Supported
SDRAM
8GB
ARP Capacity
16K
Flash Memory
240GB
IPv4/IPv6 Routes
80K/15K
Packet Buffer
32MB
IP Tunnel
2K
Voltage Overvoltage Protection Class
8KV contact,15KV Air
Latency
≤1μs

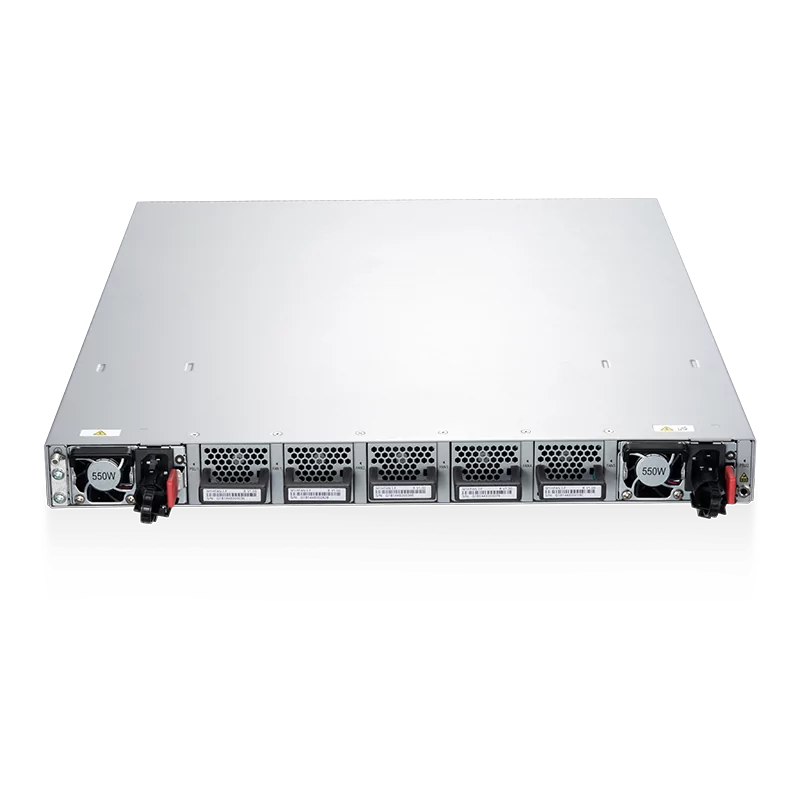

Hot-swappable AC Power Supplies
2 (1+1 Redundancy)
System Restart
<120s
Hot-swappable Fans
4 (3+1 Redundancy), Front-to-Back
Typical/Max. Power Consumption
120W/380W
Weight
13KG
MTBF
>100K Hours
Dimensions (HxWxD)
1.71"x18.50"x17.36"(43.5x470x441mm)
Warranty
3 Years(30-Day Return)
Applications
no data
Product Highlights

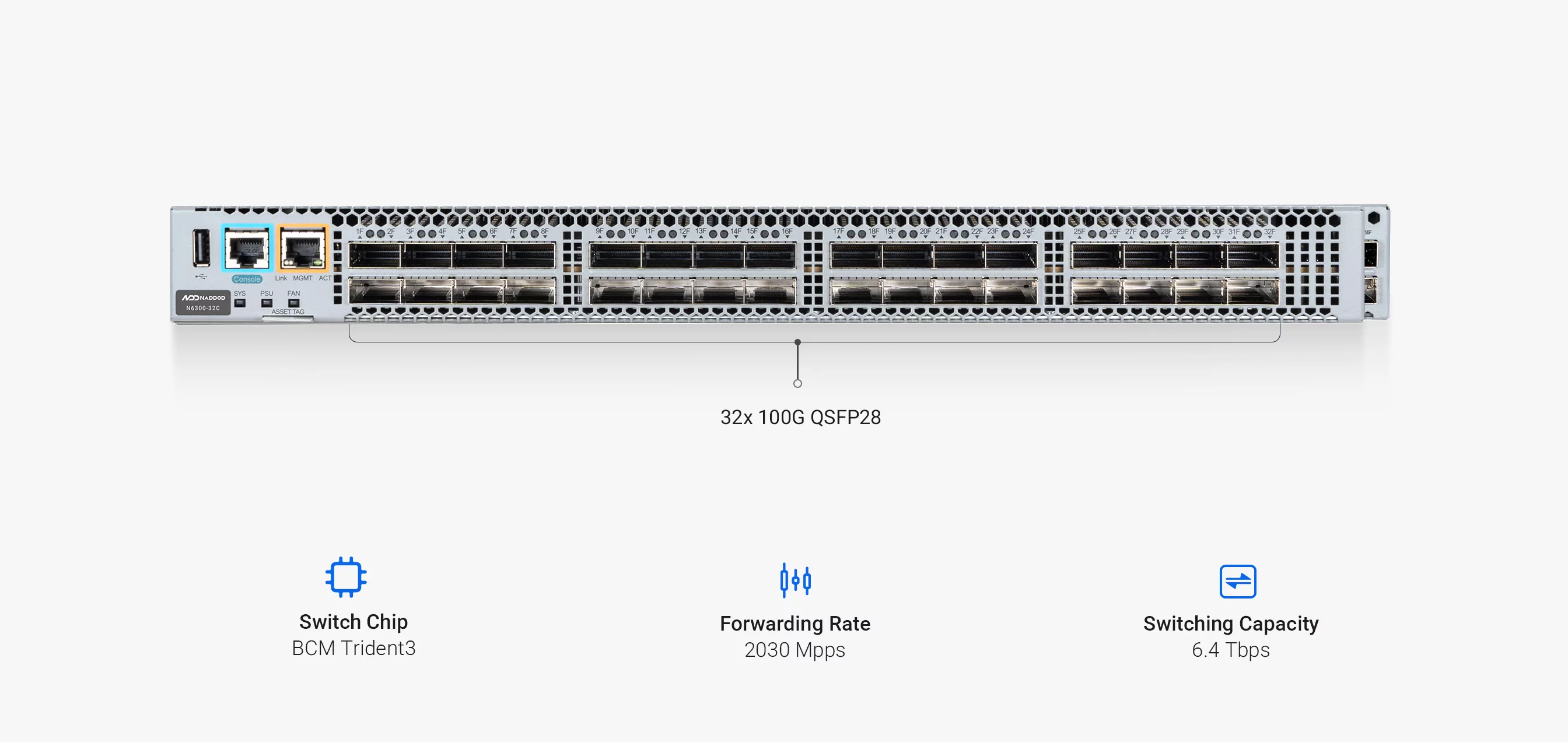

32X 100Gb QSFP28 ports, support Open API interface

Supporting 32X 10/25/40/50/100G interface types, providing L2/L3 full wire-speed forwarding, enabling multi-scenario deployment of services.

Support VXLAN , allowing for centralized and distributed deployment

Support VXLAN, allowing users to expand the network architecture and flexibility to a greater extent, solving the problem of insufficient number of VLANs in the traditional data center network and the difficulty of scale expansion.

Stacking or MLAG for different demands

M-LAG (cross-device link aggregation) allows link aggregation between multiple devices. Stacking can combine several devices into a whole device for use. Both the two functions can meet the demands for different scenarios.

Compare Items
N6300-32C

N6300-32C

N6100-48X8C

N6100-48X8C

N6300-48Y8C

N6300-48Y8C

N6400H

N6400H

Description
N6300-32C, 32-Port Ethernet L3 Data Center Switch, 32x 40Gb/100Gb QSFP28, Support MLAG, Broadcom Chip
N6100-48X8C, 48-Port Ethernet L3 Switch, 48x 10Gb SFP+ , with 8x 40Gb/100Gb QSFP28, Support MLAG, Support VXLAN, Support RoCE
N6300-48Y8C, 48-Port Ethernet L3 Data Center Switch, 48x 10/25Gb SFP28, with 8x 40/100Gb QSFP28, Support MLAG, Broadcom Chip
N6400H, 4-Slot 4U Ethernet L3 Data Center Switch Unloaded, 128x 40/100Gb QSFP28 | 112x 10Gb SFP+ ,with 32x 40/100Gb QSFP28, Support MLAG, Broadcom Chip, Support RoCE
SFP Ports
32x 40G/100G QSFP28
48x 1G/10G SFP+ | 8x 40G/100G QSFP28
48x 10/25G SFP28 | 8x 40/100G QSFP28
128x 40G/100G QSFP28
VXLAN
NVGRE - -
GENEVE - -
EVPN
PFC
ECN
MLAG
VARP - - - -
VRRP - - - -
Smartlink
NAT - - - -
OSPFv2/v3
BGP4/BGP4+
SFlow
Open API: Neutron, OVSDB, Python
Questions & Answers
Ask a Question
Q:
Can I use N6300-32C data center switch for transmission rates lower than 100G?
A:
N6300-32C switch supports 100G port speed reduction to 40G, supports 4x 25G or 2x 50G split mode.
Q:
Is there any software management for your products beyond a CLI and web interface?
A:
There are currently no software for managing switches. You can manage the switch through the SSH, Telnet, and console.
Q:
Is it possible to do an MLAG with 4 links to achieve a higher link speed?
A:
Yes, the N6300-32C supports MLAG to achieve a higher link speed.
