What is the difference between OSFP-400G-VR4, Q112-400G-VR4 and QDD-400G-VR4?

All three modules are 4-channel with 12-core multimode MPO fiber patch cords, the difference is mainly in the number of channels on the electrical side, OSFP-400G-VR4 and Q112-400G-VR4 are 4x100G PAM4 on the electrical side, while QDD-400G-VR4 is 8x50G PAM4 on the electrical side.

Can modules in different packages of QSFP-DD, OSFP and QSFP112 be interconnected?

Yes, as long as the module type is the same, e.g. both ends are 400G VR4 or DR4 modules.

400GBASE-VR4 OSFP PAM4 850nm 50m MMF Module for HPE

Click to open expanded view

Global Local Service

Lifetime Technical Support

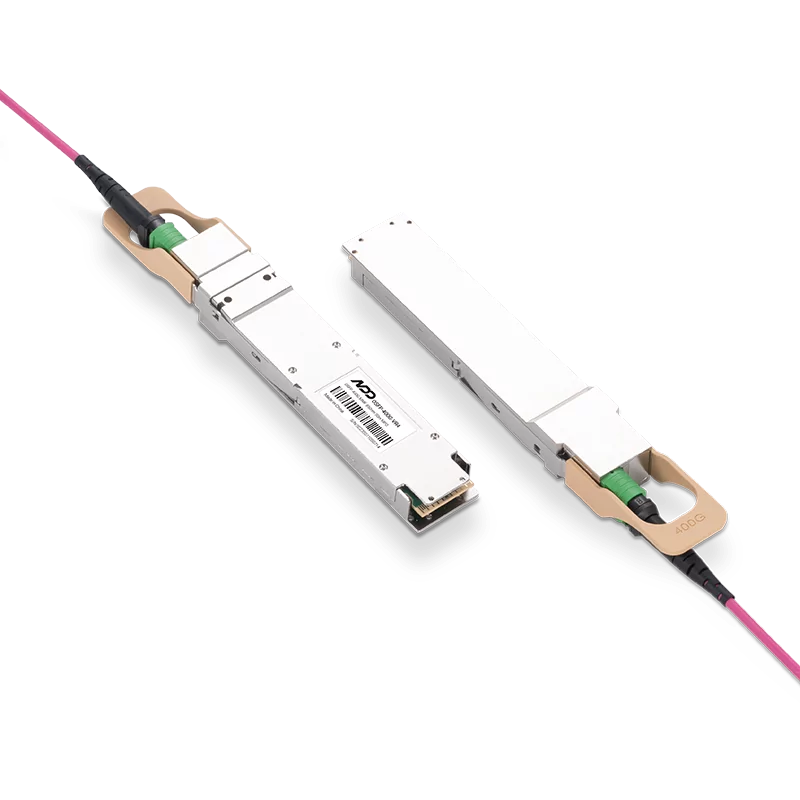

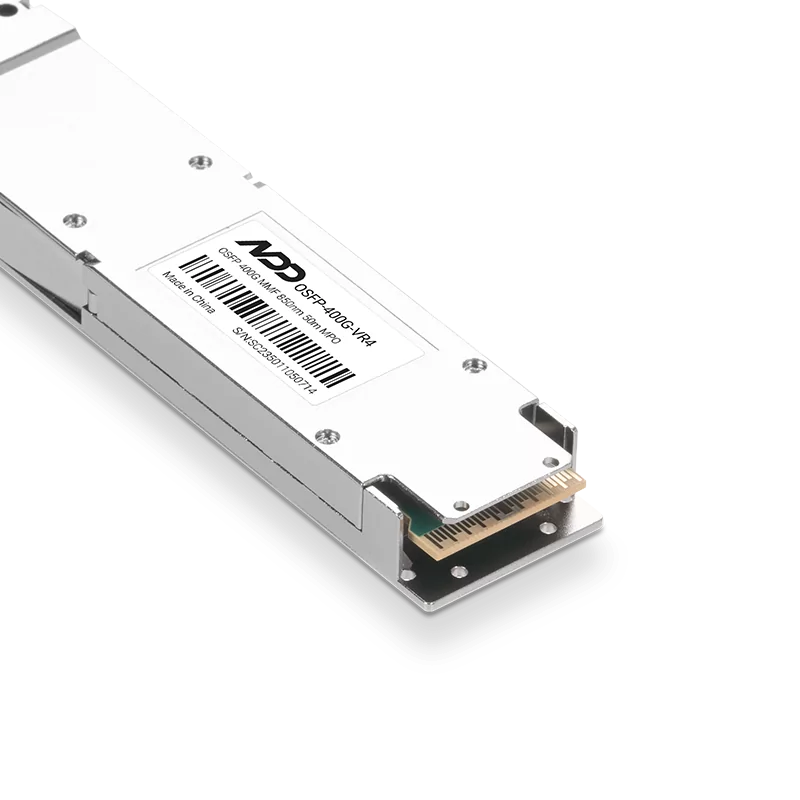

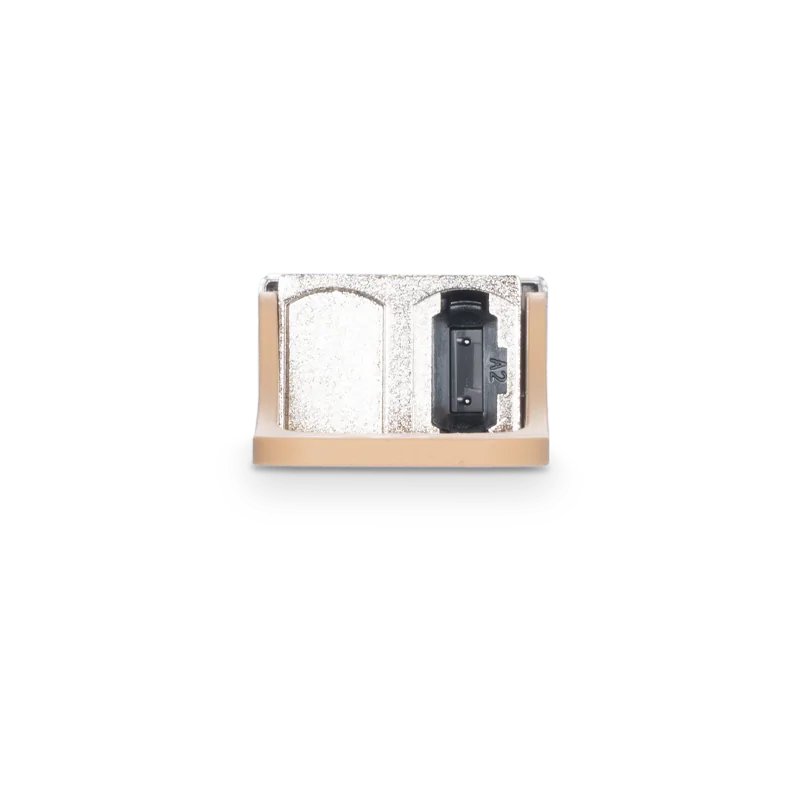

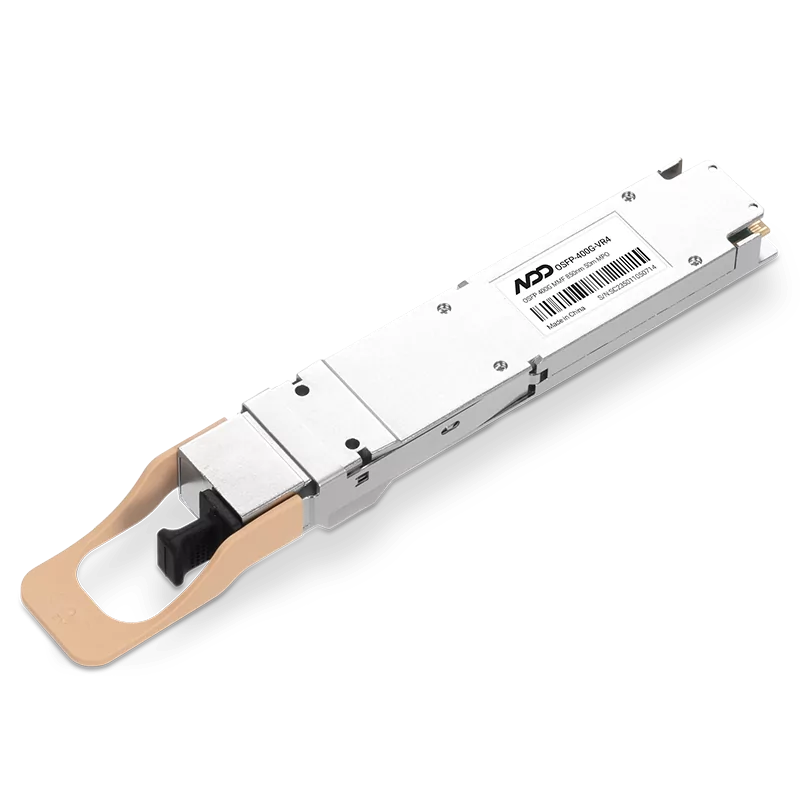

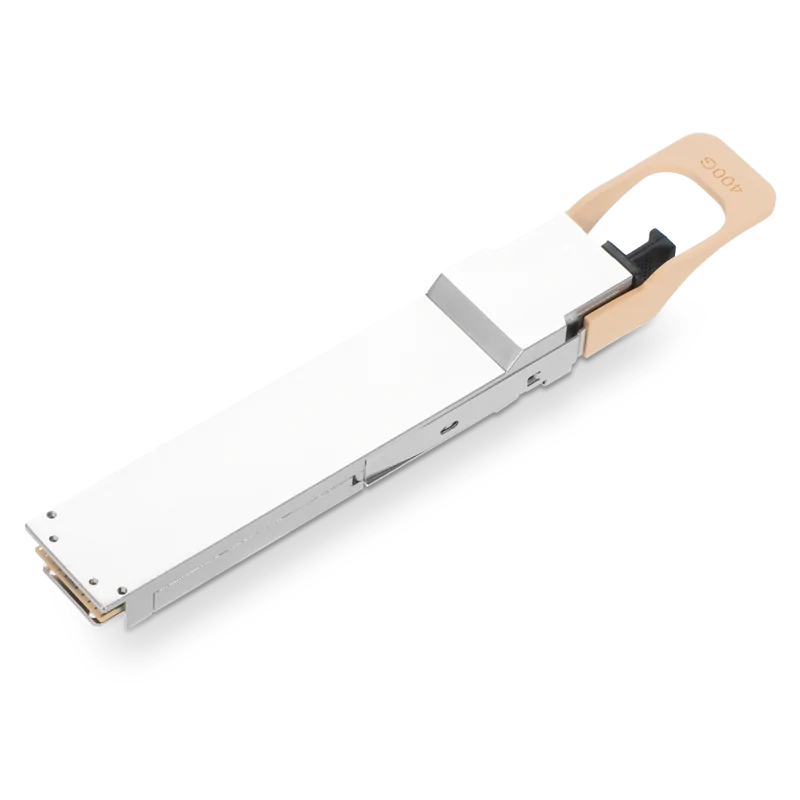

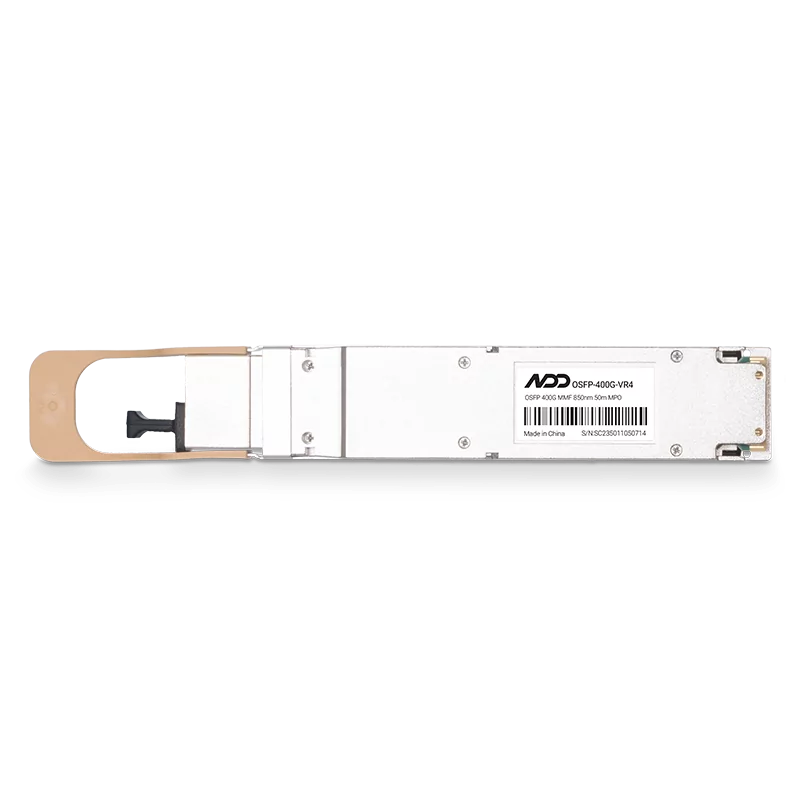

HPE S6B53A Compatible 400GBASE-VR4 OSFP PAM4 850nm 50m MTP/MPO-12 APC MMF Optical Transceiver Module

Name: HPE S6B53A Compatible 400GBASE-VR4 OSFP PAM4 850nm 50m MTP/MPO-12 APC MMF Optical Transceiver Module
Brand: Naddod
SKU: 103082
Price: 549.00 USD
Availability: InStock
Rating: 5.0 (18 reviews)

#103082

Model: OSFP-400G-VR4

Sold: 360

In Stock: 168

Transceiver Types:

OSFP-400G-VR4 | 50m

OSFP-400G-VR4 | 50m

Brand:

NVIDIA/Mellanox (Ethernet)

Arista

HPE H3C

Generic

NVIDIA/Mellanox (Ethernet)

Arista

HPE H3C

Generic

Item Spotlights

Max Power Consumption ≤9W.
Provide Professional Compatibility and Parameter Test Reports.
Compliant with Hot Pluggable OSFP MSA, IEEE 802.3ck, CMIS 4.0 Standard.
Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
DDM(Digital Diagnostic Monitoring) Supported.
Significantly Improve the Flexibility, Economy and Reliability of Networking.
30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

HPE S6B53A Compatible 400GBASE-VR4 OSFP PAM4 850nm 50m MTP/MPO-12 APC MMF Optical Transceiver Module

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Resources

Description

HPE S6B53A Compatible 400GBASE-VR4 OSFP PAM4 850nm 50m MTP/MPO-12 APC MMF Optical Transceiver Module

NADDOD OSFP-400G-VR4 is a four-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 400Gigabit Ethernet applications. This transceiver is a high performance module for short range data communication and interconnect application. It integrates four data lanes in each direction with 4x53.125GBd. The length of OSFP VR4 is up to 60 meters over OM3 MMF or 50 meters over OM4 MMF.

Specifications

Form Factor

OSFP

Distance

50m

Wavelength

850nm

Connector

MTP/MPO-12 APC

Power Consumption

≤9W

Transmitter

VCSEL

Receiver

Media

MMF

Modulation（electrical）

4x106.25Gb/s PAM4

Modulation（Optical ）

4x106.25Gb/s PAM4

Case Temperature(℃)

0~70°C (32 to 158°F)

Protocol

400G Ethernet Compliant

Applications

Product Highlights

Questions & Answers

Ask a Question

Can 400G VR4 be interconnected with 800G Twin-Port 2xVR4?

Yes, 800G Twin-Port 2xVR4 with two OM4 MPO-12/APC patch cables can be connected to two 400G VR4 optical modules.

Can QSFP-DD ports use modules in OSFP form factor, such as OSFP-400G-VR4?

OSFP and QSFP-DD are two completely different form factors, so OSFP optical modules cannot be used in OSFP-DD ports.

What is the main connectivity solution for the OSFP-400G-VR4?

The OSFP-400G-VR4 is mainly used for OSFP port ConnectX-7 adapters, with the opposite end connecting to OSFP-800G-2xVR4 optical modules on 800G OSFP switches.

Resources

OSFP-400G-VR4 Datasheet
