N9500-64OC, 64x800G OSFP Ethernet L3 4U Managed Switch, 51.2Tbps, Broadcom Tomahawk 5, Support RoCEv2, For AI/ML/Cloud Data Center/HPC

#102322
Model: N9500-64OC
Sold: 0
In Stock: Available
$ 39399.00

Item Spotlights

  • 64-port 800G (OSFP)
  • Switching capacity 102.4T, packet forwarding rate 21000Mpps
  • Support RoCE configuration one-click deployment
  • Level 2 networking can support up to 8K 400G ports, and level 3 networking can support up to 32K 400G ports
  • Support dual-port access networking, GR perfect restart, BFD fast forwarding detection and other mechanisms
  • AI ECN automatic parameter adjustment, RoCE network key indicators real-time telemetry
  • Support IPv4/IPv6 dual-stack protocols: static routing, equal-cost routing, policy routing, RIPng, OSPFv3, BGP4+, etc.
  • Support SNMPv1/v2c/v3, support general network management platform
N9500-64OC, 64x800G OSFP, Broadcom TH 5, 51.2Tbps, Managed AI Data Center Switch
N9500-64OC, 64x800G OSFP Ethernet L3 4U Managed Switch, 51.2Tbps, Broadcom Tomahawk 5, Support RoCEv2, For AI/ML/Cloud Data Center/HPC
Specifications
Product Highlights
Questions & Answers
Resources
Specifications
Product Highlights
Questions & Answers
Resources
Description

N9500-64OC, 64-Port Ethernet L3 4U Data Center Switch, 64x 800Gb OSFP, Support RoCEv2

The N9500-64OC switch is a new generation of high-performance, high-density box switches launched for the development trends of applications such as AI, big data, high-performance computing, and distributed storage. Based on network flow control technologies such as PFC/ECN and MMU tuning technology, it can build an end-to-end, lossless, low-latency forwarding RDMA (Remote Direct Memory Access) basic bearer network to meet the network deployment requirements of application scenarios such as AI/machine learning, high-performance computing, and distributed storage big data.

Specifications
Ports
64x800G OSFP
Switch Chip
Tomahawk 5 / BCM78900 Series
Switching capacity
102.4T
Packet forwarding rate
21000Mpps
Power consumption
Maximum: 3156W
RoCE
Supported
Management port
1xMGMT,1xConsole,1xUSB
CPU
2.0 GHz quad-core
Memory
16 GB, DDR4 (compatible with 32 GB)
Swap Cache
165.2MB
Airflow
power-to-connector
Flash memory
NOR flash: 64 MB (for Boot ROM)
SSD
240 GB
Power Redundancy
2+2
Fan Redundancy
7 + 1
Dimensions (W × D × H)
442mm × 760mm × 175mm(4RU)
Operating temperature
0℃~40℃
Weight
33.5KG
Humidity
Operating humidly: 10% RH to 90% RH (noncondensing)
Storage humidity: 5% RH to 95% RH (non-condensing)
Product Highlights

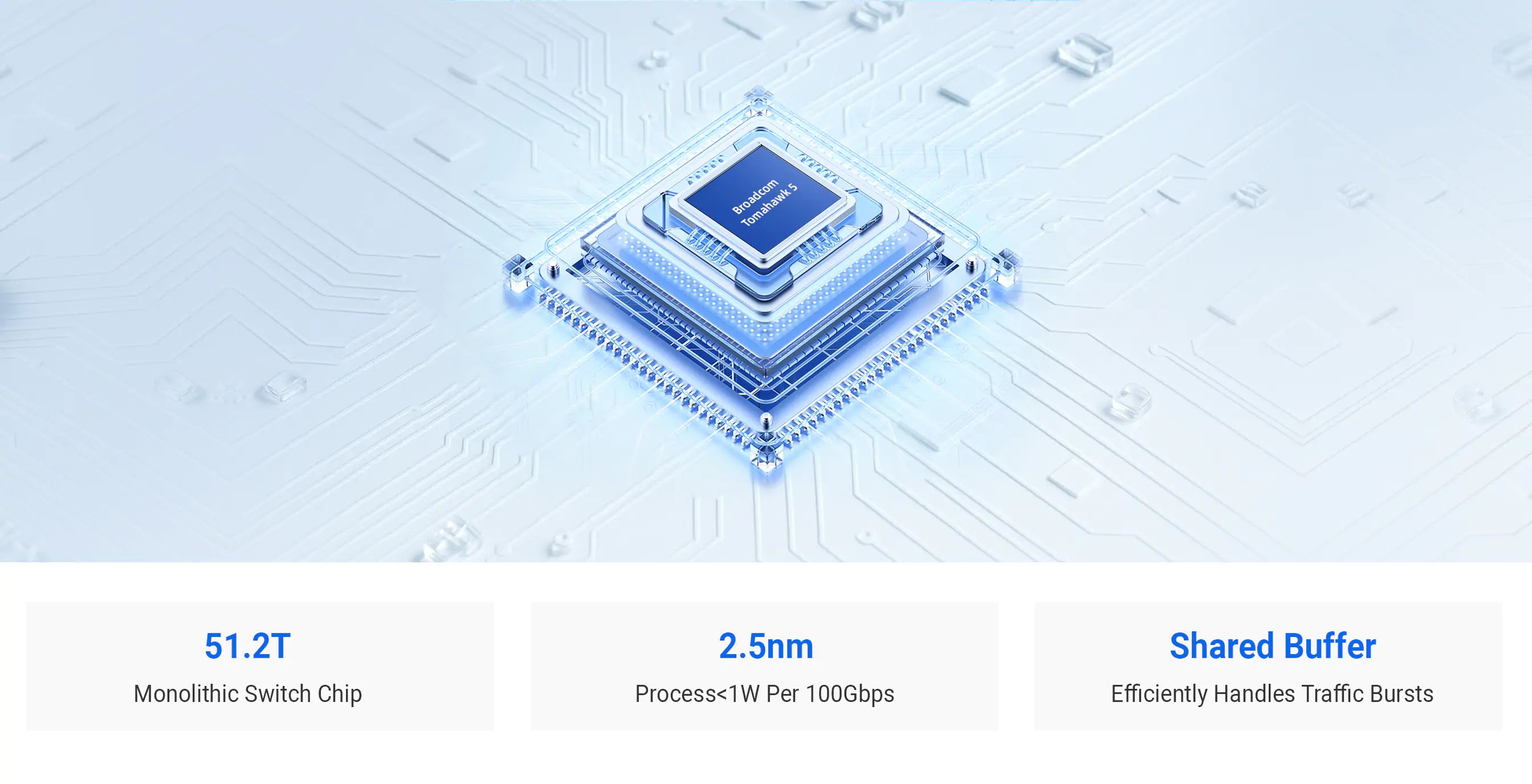

Broadcom Tomahawk 5 Chip Unleashes Exceptional Efficiency for Data Center

NADDOD 800G/400G switches are integrated with Broadcom Tomahawk 5 chip, supporting RoCEv2 lossless networking protocols and providing full L2 and L3 forwarding. They deliver ultra-high performance, low-latency, and high-reliability solutions, especially for data centers, AI/ML clusters, high-performance computing, and distributed storage applications.

High-Performance AIGC Network

Supports large GPU clusters with 200/400/800G bandwidth and 97% utilization. Load balancing and copper interconnects reduce failure risks and costs, enabling efficient, energy-saving data centers.

RoCE Lossless Technology for AI Networks

RDMA (Remote Direct Memory Access) technology based on Ethernet protocol enables low-latency, lossless communication, ensuring efficient data transfer and optimized AI workload performance.

RALB Ensures High Bandwidth Utilization

Maximize bandwidth efficiency with RALB technology, optimizing load distribution and ensuring consistent, high-performance data transfer.

AILB Technology for Dynamic Path Switching

Automatically reroutes paths in response to congestion and conflicts, ensuring optimal data flow and network efficiency.

Questions & Answers
Ask a Question
Q:
What is the throughput of the N9500-64OC switch?
A:
The N9500-64OC switch provides up to 102.4 Tbps of bi-directional throughput with 21,000 Mpps of forwarding capacity.
Q:
How large scale of networking can N9500-64OC switch support?
A:
Layer 2 networking can support up to 8,000-card GPU cluster, and Layer 3 networking can support up to 32,000-card GPU cluster.
Q:
What is the port density and speed of the N9500-64OC switch?
A:
The N9500-64OC supports up to 64*800GbE, 128*400GbE, or 256*200GbE ports.
