1m (3ft) 200G QSFP56 to 2X100G QSFP56 Passive Direct Attach Copper Breakout Cable for Mellanox 30AWG - NADDOD

NVIDIA/Mellanox MCP7H50-V001R30 Compatible 1m (3ft) Ethernet 200GbE QSFP56 to 2X100GbE QSFP56 Passive Copper Hybrid Cable

#32632
#32632
Model: Q2Q56-200G-CU1
  Sold:  277
In Stock 520
request-free-sample
Request Sample

Item Spotlights

  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP56 MSA Standard.
  • Compliant with RoHS Environmental Standard (Lead-free).
  • Supports 200G to 2x 100G Ethernet Interoperability.
  • 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
1m (3ft) 200G QSFP56 to 2X100G QSFP56 Passive Direct Attach Copper Breakout Cable for Mellanox 30AWG
NVIDIA/Mellanox MCP7H50-V001R30 Compatible 1m (3ft) Ethernet 200GbE QSFP56 to 2X100GbE QSFP56 Passive Copper Hybrid Cable
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Description

NVIDIA/Mellanox® MCP7H50-V001R30 Direct Attach Copper Splitter Cable Ethernet 200GbE to 2x100GbE QSFP56 to 2xQSFP56 Colored 1m 30AWG

NVIDIA/Mellanox® MCP7H50 compatible passive, copper, splitter cable is a high speed, cost-effective, 200GbE to 2x100GbE Ethernet connectivity solution designed for the growing need for higher bandwidth in data centers. The 200GbE end is configured as 4 channels x 50G PAM4 in a QSFP56 shell. The 100GbE side splits off 2 channels x 50G PAM4 into two separate QSFP56 ends operating at 100Gb/s. Each QSFP56 cage comprises an EEPROM providing product information which can be read by the host system.

Specifications
Form Factor
QSFP56 to 2xQSFP56
Cable Length
0.5m~3m
Wire AWG
26~30AWG
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Jacket Material
PVC
Power Consumption
<0.1W
Minimum Bend Radius
37mm~47mm
Application
200G/100G Ethernet Compliant

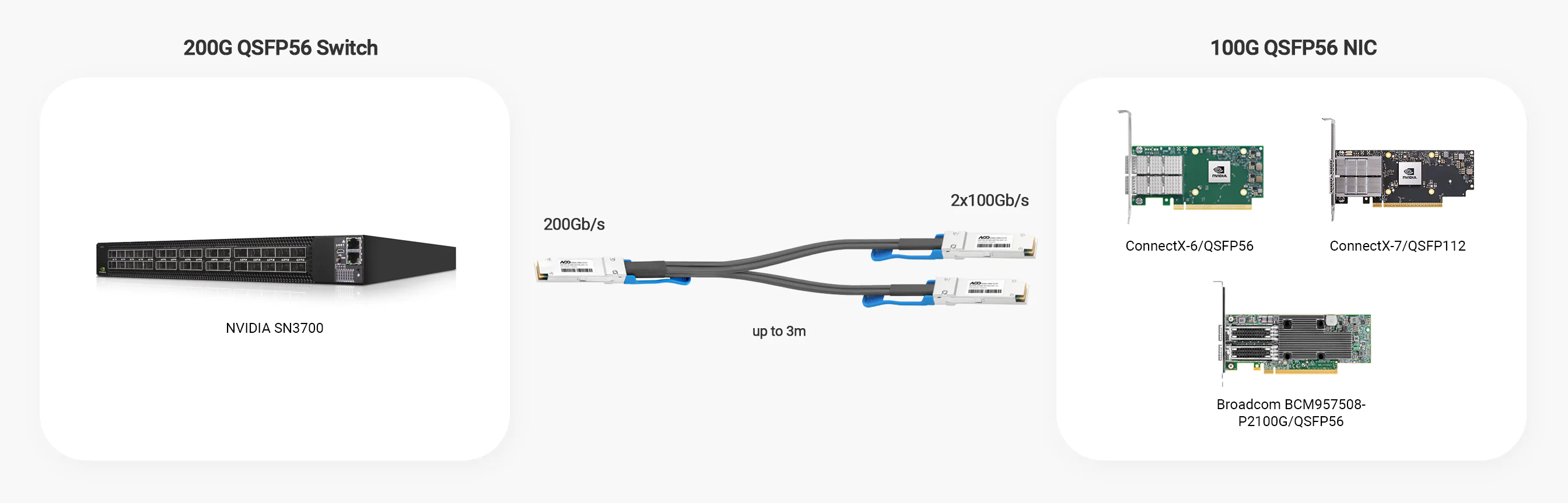

Connectivity Solutions
Spine-Leaf Architecture

The high-speed Ethernet solution based on 200G AOC/DAC offers superior connectivity performance, meeting the demands for higher data transfer rates. It enhances system throughput and response speed while effectively reducing operational costs in data centers.

Applications
Product Highlights
Unique advantages of NADDOD 200G Q2Q56 breakout DAC

NADDOD 200G Q2Q56 breakout DAC contains a 200G QSFP56 optical transceiver and two 100G QSFP28 optical transceivers, and the transmission distance is within 3 meters. It is mainly used for 200G to 2x100G network interconnection on the same rack in the data center.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Questions & Answers
Ask a Question
Q:
What is the main application scenario for the 200Gb/s QSFP56 DAC cable?
A:
It is primarily used for short-distance interconnects, within a range of up to 3 meters, between 100G server network cards and 200G switches in data centers.
Q:
Can the ends of the 200Gb/s QSFP56 DAC cable be compatible with different brands of equipment?
A:
Yes, compatibility can be achieved by matching the specific devices with their corresponding compatible counterparts.
Q:
Can the 200G split DAC cable be used to connect 100G QSFP28 network cards?
A:
No, the 100G QSFP28 network card uses 4x25G NRZ modulation, while the 100G end of the split cable is QSFP56, which utilizes 2x50G PAM4 modulation. Therefore, it is not compatible, and a network card with a 100G QSFP56 port would be required.
Customer Reviews
