1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km SMF Module for Generic

Click to open expanded view

1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km SMF Module for Generic
1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km SMF Module for Generic
1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km SMF Module for Generic
1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km SMF Module for Generic
1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km SMF Module for Generic
1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km SMF Module for Generic
1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km SMF Module for Generic
Global Local Service
Lifetime Technical Support

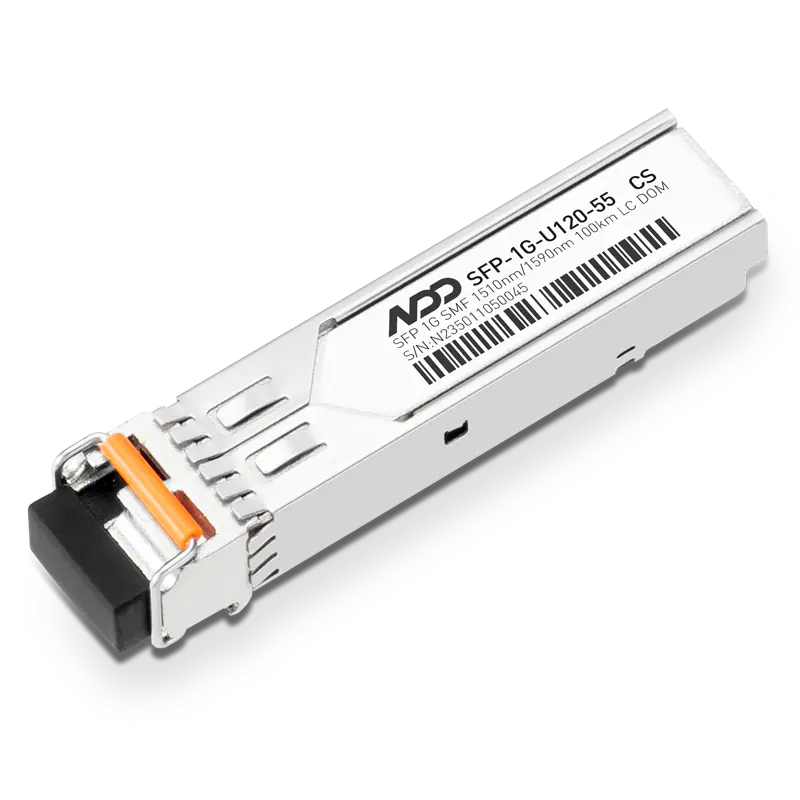

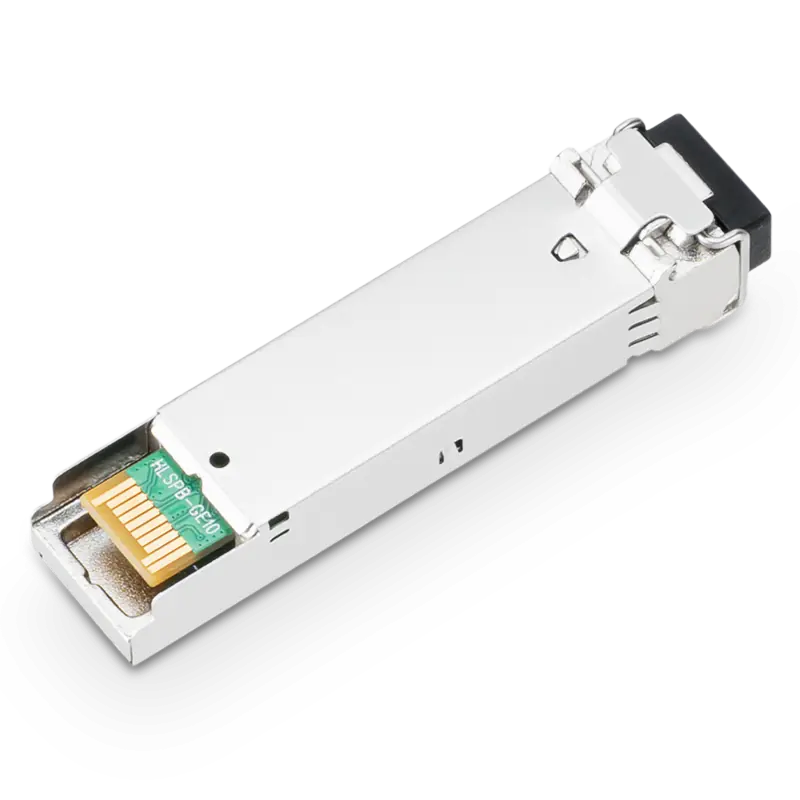

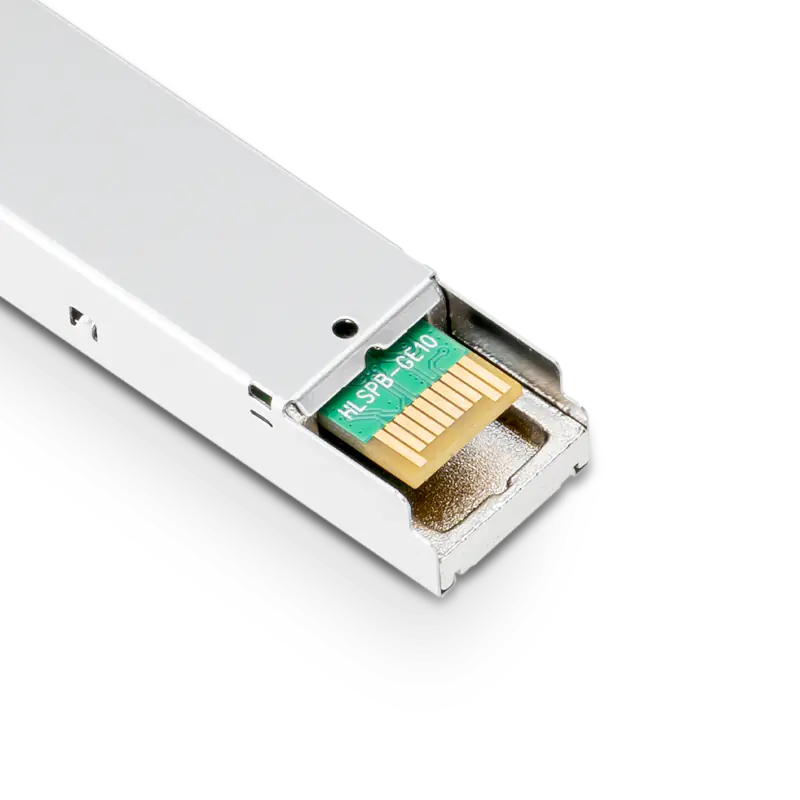

Generic GLC-BX-120U Compatible 1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km DOM Simplex LC Transceiver Module for SMF

#26631
#26631
Model: SFP-1G-U120-55
$ 66.00
Brand:
Generic
Generic
request-free-sample
Request Sample

Item Spotlights

  • Max Power Consumption ≤1W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable SFP MSA, IEEE802.3z Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Save Fiber Resources by Using Only One Fiber for Transmit and Receive.
  • 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km SMF Module for Generic
Generic GLC-BX-120U Compatible 1000BASE-U120-55 SFP TX-1510nm/RX-1590nm 120km DOM Simplex LC Transceiver Module for SMF
NADDOD
NADDOD
Free Worldwide Shipping on Orders over $ 99

$ 66.00

Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Specifications
Product Type
SFP-1G-U120-55
Vendor Name
NADDOD
Form Factor
SFP
Max Data Rate
1.25Gbps
Wavelength
TX-1510nm/RX-1590nm
Transmission Distance
120km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
APD
TX Power
-1~4dBm
Receiver Sensitivity
< -31dBm
Typical Power Consumption
≤1W
Commercial Temperature Range
0~70°C
DDM
Supported
EMC ( Electro Magnetic Compatibility)
Supported
Protocols
IEEE 802.3z, SFF-8472, SFP MSA, CPRI, eCPRI
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic
Applications
no data
Product Highlights
Unique advantages of NADDOD 1G BIDI SFP transceiver

1G/100M optical transceiver is featured with low power consumption. NADDOD SFP transceiver can help customers save more than 60% of the cost while ensuring first-class product quality depending on our top-class channel supply and R&D and production capacity.

Unique advantages of NADDOD 1G BIDI SFP transceiver
Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.
