Mellanox MFA7A50-C003 3m (10ft) 100G QSFP28 to 4X25G SFP28 Ethernet Active Optical Breakout Cable - NADDOD

Mellanox MFA7A50-C003 Compatible 3m (10ft) 100G QSFP28 to 4X25G SFP28 Breakout Active Optical Cable

#13877
#13877
Model: Q4SFP-100G-A3
  Sold:  398
In Stock 390
request-free-sample
Request Sample

Item Spotlights

  • Minimum Bend Radius 30mm.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP28/SFP28 MSA Standard.
  • Compliant with RoHS Environmental Standard (Lead-free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Supports 100G to 4x 25G Ethernet Interoperability.
  • 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

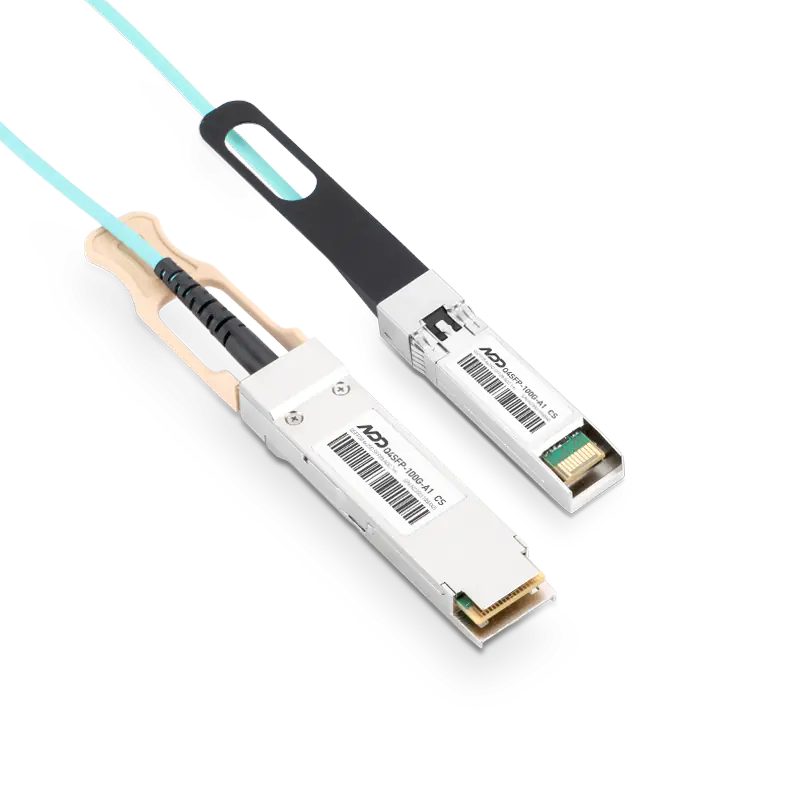

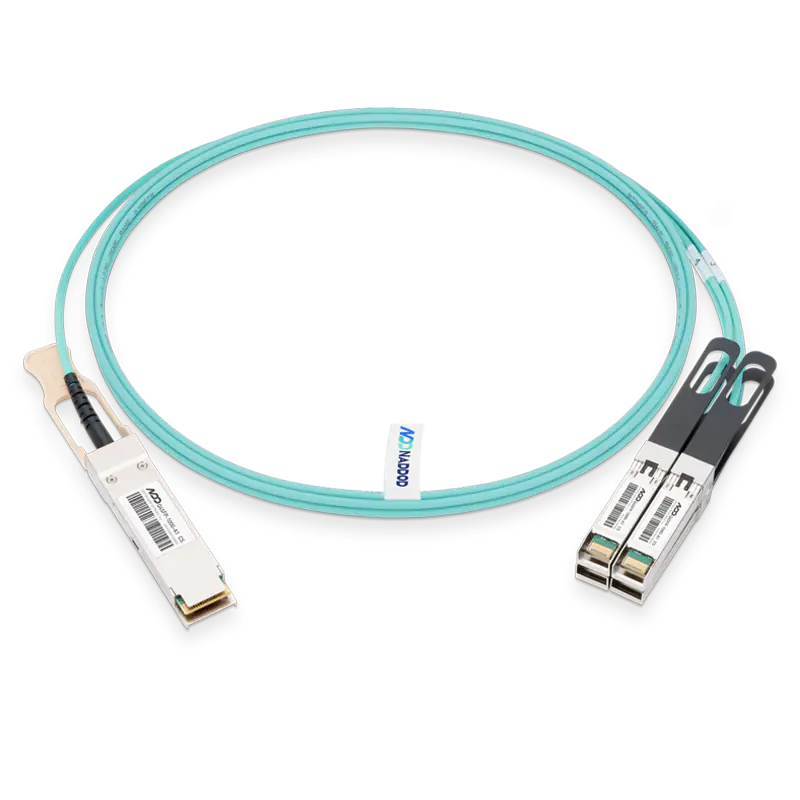

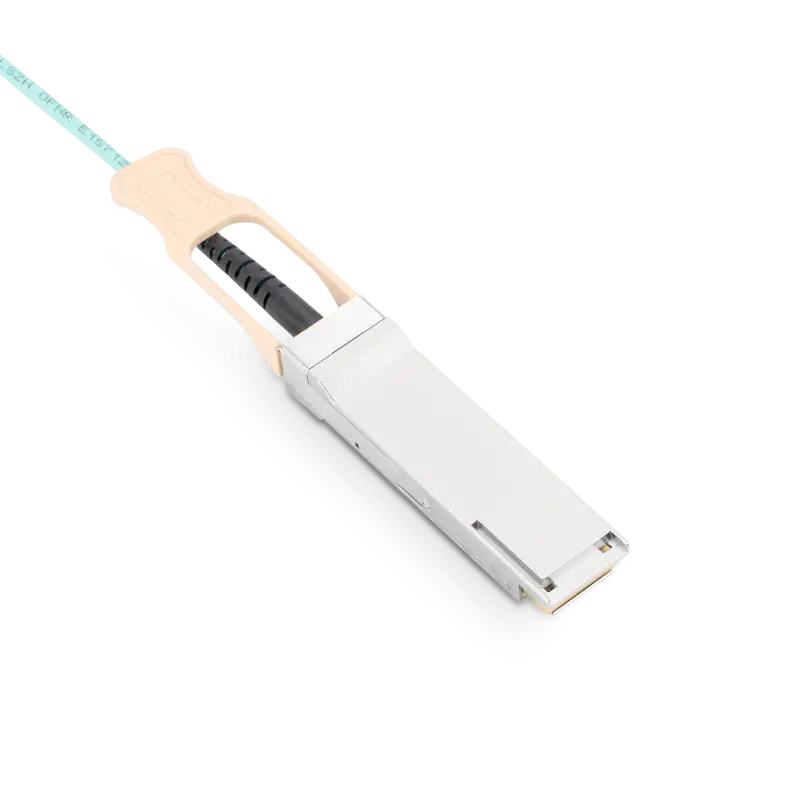

3m (10ft) 100G QSFP28 to 4X25G SFP28 Breakout Active Optical Cable
Mellanox MFA7A50-C003 Compatible 3m (10ft) 100G QSFP28 to 4X25G SFP28 Breakout Active Optical Cable
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Specifications
Form Factor
QSFP28 to 4xSFP28
Cable Length
1m~50m
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Wavelength
850nm
Jacket Material
LSZH
Power Consumption
≤2.5W(QSFP28) ≤1W(SFP28)
Minimum Bend Radius
30mm
Application
100G/25G Ethernet Compliant
Connectivity Solutions
Spine-leaf Architecture

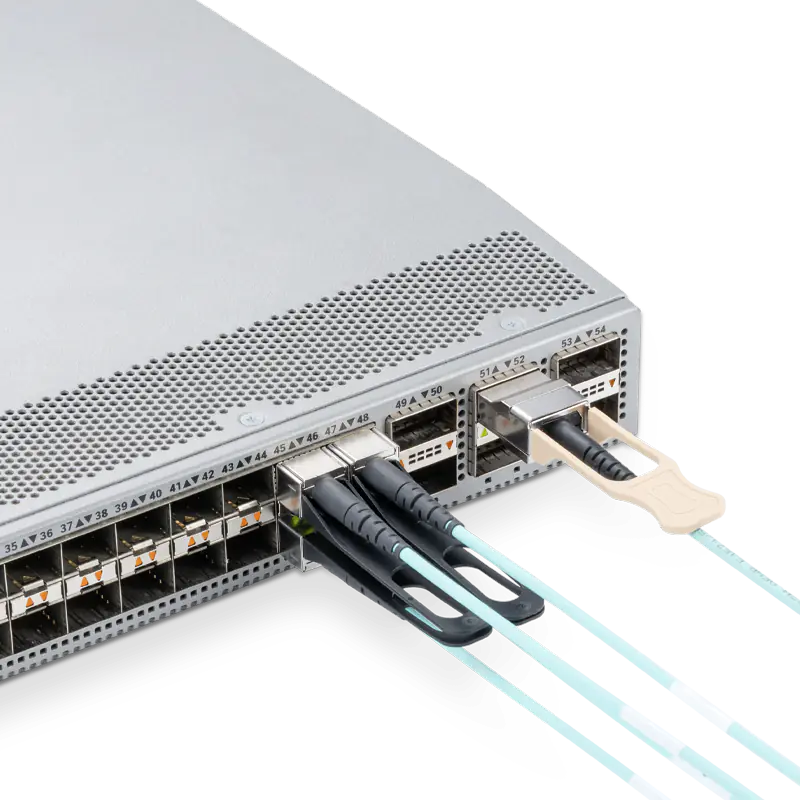

This architecture consists of Spine and Leaf switches with full 100G ports. The Leaf switches are connected to 25G network cards using one-to-four cable connections, enabling connectivity to multiple devices and high-performance data transmission. It is suitable for large-scale data centers and high-traffic application scenarios.

Applications
View More
Product Highlights
Unique advantages of NADDOD 100G Q4SFP breakout AOC

With multimode fiber, NADDOD 100G Q4SFP breakout AOC can achieve a transmission distances up to 70m (OM3) or 100m (OM4) , which provides a cost-effective solution for interconnection between data center equipment with 100G QSFP28 ports and 25G SFP28 ports.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Questions & Answers
Ask a Question
Q:
Can a 100G QSFP28 AOC be used on a QSFP56 port switch?
A:
Yes, a 100G QSFP28 AOC can be used on a QSFP56 port switch. QSFP56 ports are backward compatible with QSFP28.
Q:
What is the maximum length that QSFP-100G-AOC can provide?
A:
QSFP-100G-AOC can provide a maximum length of 50 meters.
Q:
Can AOC have different compatibilities at both ends?
A:
Yes, it is possible. You can specify the desired compatible brands and provide the equipment models.
