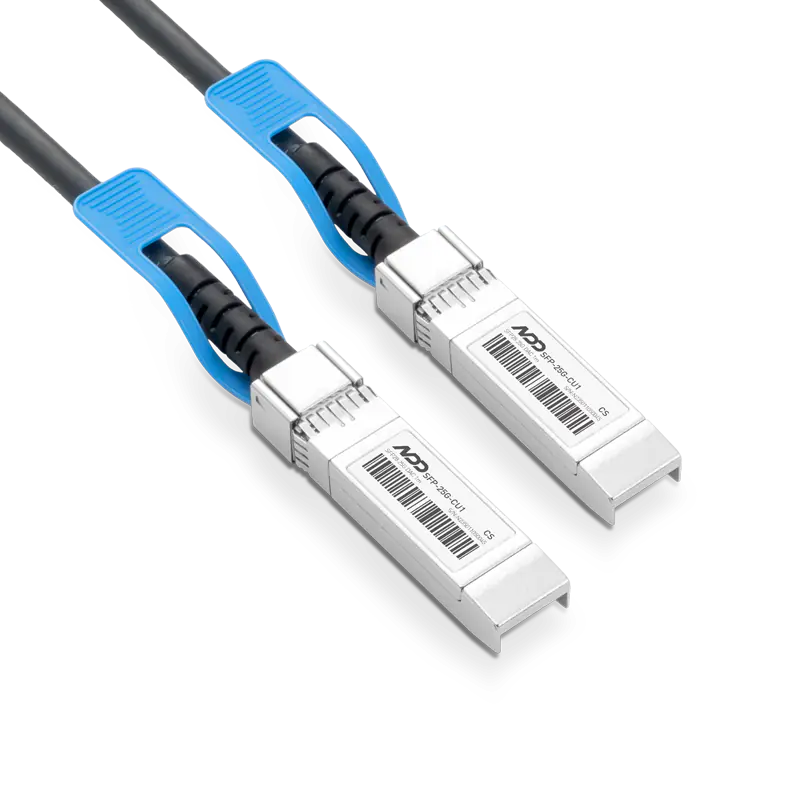

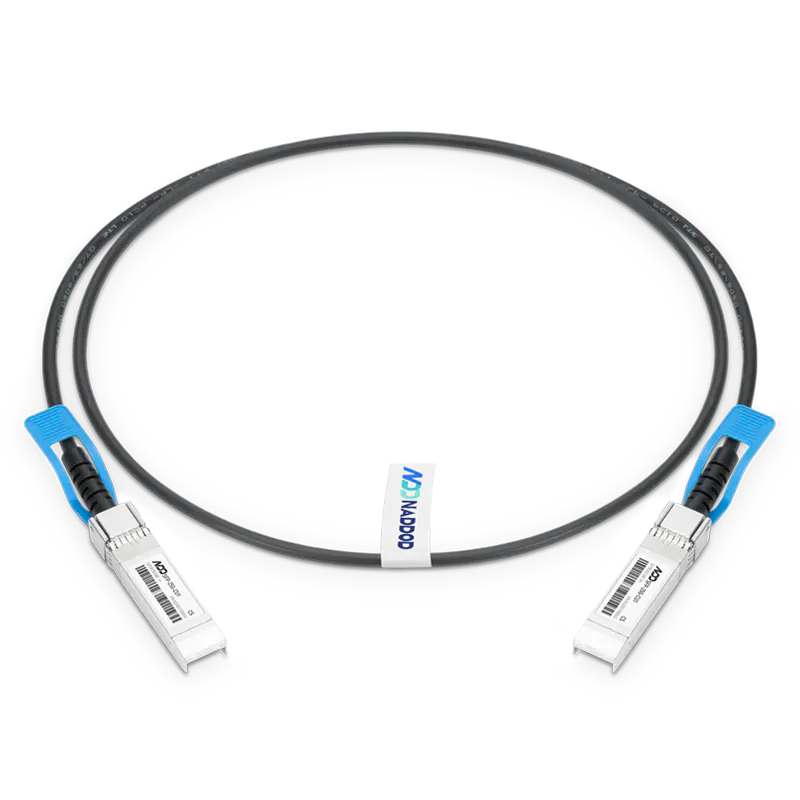

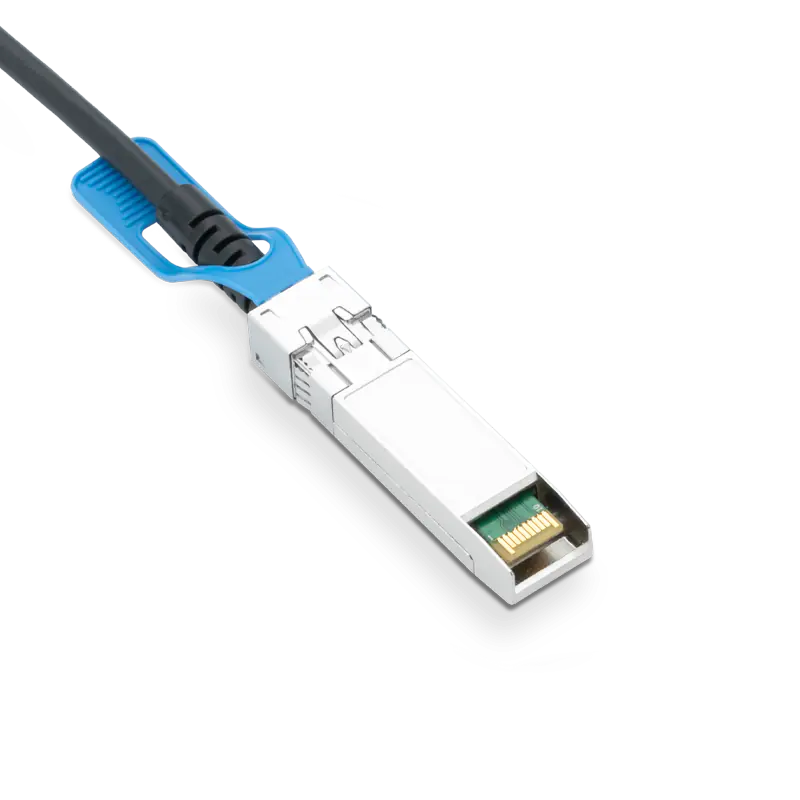

Mellanox MCP2M00-A00AE30N Compatible DAC 0.5m (1.6ft) Ethernet 25GbE SFP28 Passive Direct Attach Copper Twinax Cable 30AWG

#13853
#13853
Model: SFP-25G-CU0-5
  Sold:  208
 In Stock 803
  Shipping Today
$ 21.00
request-free-sample
Request Free Sample

Item Spotlights

  • Minimum Bend Radius 25mm.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable SFP28 MSA Standard.
  • Compliant with RoHS Environmental Standard (Lead-free).
  • 30-Day Free Return, 3-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
0.5m (1.6ft) 25G SFP28 Passive Direct Attach Copper Twinax Cable for Mellanox 30AWG
Mellanox MCP2M00-A00AE30N Compatible DAC 0.5m (1.6ft) Ethernet 25GbE SFP28 Passive Direct Attach Copper Twinax Cable 30AWG

$ 21.00

Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Description

NVIDIA/Mellanox® MCP2M00-A00AE30N Compatible DAC 1m (3ft) Ethernet 25GbE Passive Direct Attach Copper Twinax Cable (25Gb/s, SFP28, CA-N, 30AWG)

Mellanox MCP2M00-A00AE30N compatible SFP28 25GbE passive copper cable is a high speed, cost-effective 25Gbp/s Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers. The 25G SFP28 direct attach copper cable contains a single high-speed copper pair, operating at data rates of up to 25Gb/s. The cables are compliant with IEEE 802.3 by Ethernet standard and SFF-8402 SFP28 standard. Each SFP28 connector co mprises an EEPROM providing product information which can be read by the host system.

Product Highlights
Unique advantages of NADDOD direct attach copper

DAC is suitable for short links, with the advantages of low cost, low power consumption, interchangeability, etc. It is an ideal solution for short distance transmission between data center racks, and can effectively save costs compared to the combination form of modules plus patch cords. NADDOD high-speed cables are widely used in SATA storage devices, RADI system scenarios, core routers, 10G or 40G Ethernet and other data center interconnection scenarios, and the high-speed cables will pass several professional tests before leaving the factory and gradually become the preferred supplier for users with high quality service.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

What We Supply
Specifications
Product Type
SFP-25G-CU0-5
Vendor Name
NADDOD
Connector Type
SFP28 to SFP28
Max Data Rate
25.78Gbps
Bit Error Rate (BER)
Better than 1E-15
Hot Pluggable
Supported
RoHS 6 compliant
Supported
Minimum Bend Radius
25mm
Wire AWG
30AWG
Cable Length
0.5m
Jacket Material
PVC(OFNR)
Cable Type
Passive Twinax
Commercial Temperature Range
0~70°C
Typical Power Consumption
<0.1W
Protocols
SFP28 MSA,SFF-8402,SFF-8432,25G Ethernet
Compatible
NVIDIA/Mellanox®
