Juniper QDD-400G-ZR-M-HP Compatible 100-400GbE High-Power (Bright) DCO QSFP-DD DWDM Tunable Coherent >120km DDM/DOM Duplex LC SMF Optical Transceiver Module

#102258
Model: QDD-400G-ZRP+
Sold: 0
In Stock: 2
$ 7699.00

Item Spotlights

  • Line Modulation format DP-QPSK/DP-8QAM/DP-16QAM
  • Ideal for Edge DCI(Data Center Interconnect).
  • Typical power consumption 22W(400G).
  • C-band tunable to 100/75/50GHz grids.
  • TX VOA inside, output power -10~1dBm tunable
  • Compliant with Hot Pluggable QSFP-DD MSA,Open ZR+ MSA 2.0,OIF-400ZR-02.0,OIF-CMIS-05.2,IEEE Std 802.3 Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
400GBASE-ZRP+ DCO QSFP-DD DWDM Tunable Coherent 1528.77~1567.13nm >120km SMF Module for Juniper
Juniper QDD-400G-ZR-M-HP Compatible 100-400GbE High-Power (Bright) DCO QSFP-DD DWDM Tunable Coherent >120km DDM/DOM Duplex LC SMF Optical Transceiver Module
Specifications
Questions & Answers
Resources
Specifications
Questions & Answers
Resources
Description

Juniper QDD-400G-ZR-M-HP Compatible 100-400GbE High-Power (Bright) DCO QSFP-DD DWDM Tunable Coherent >120km DDM/DOM Duplex LC SMF Optical Transceiver Module (SMF, Coherent, LC, DOM, Open ZR+ Pro)

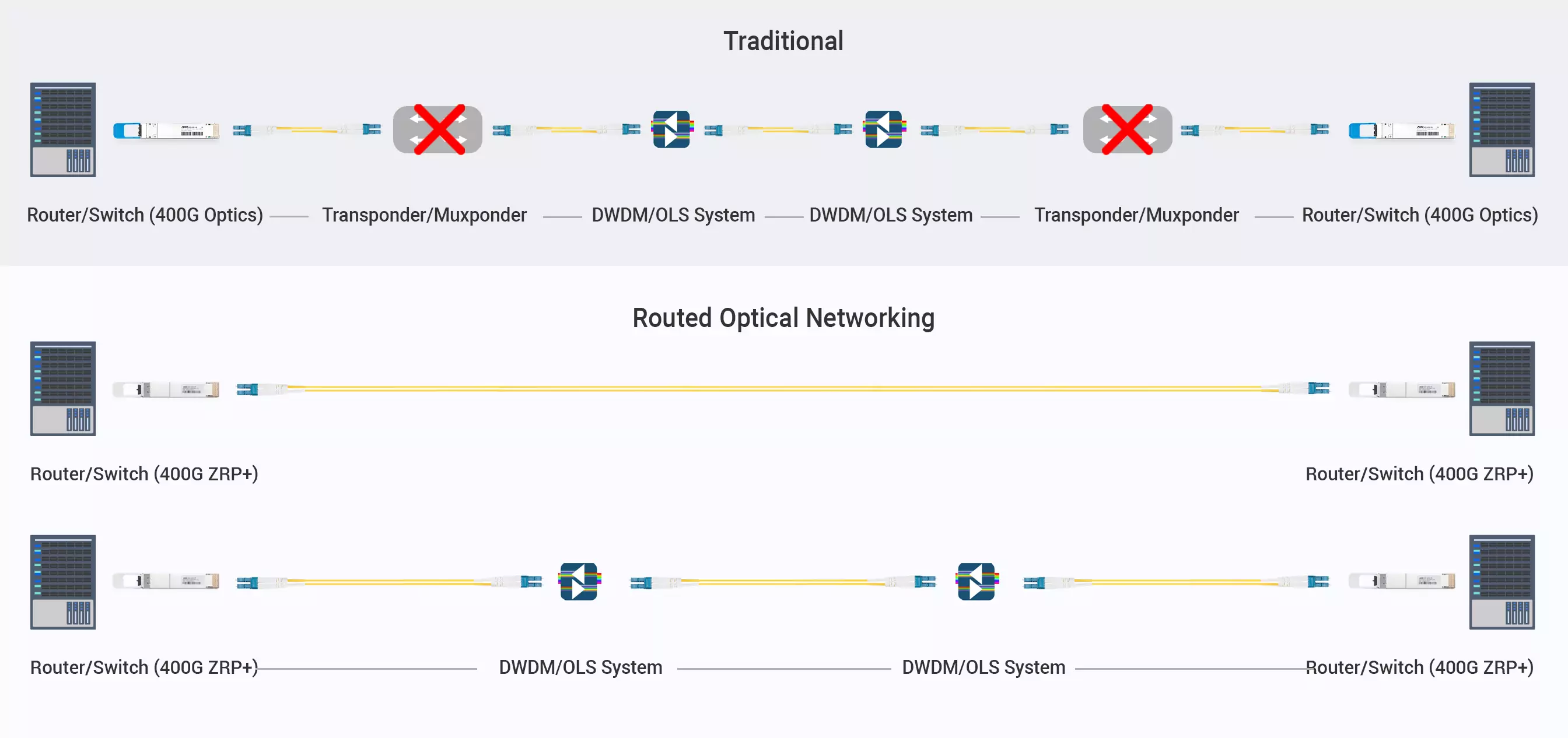

NADDOD QDD-400G-ZR+ Pro is a C-Band optical frequency tunable coherent optical module, combines 7nm coherent DSP ASIC functionality with best in class ultra-narrow line-width tunable lasers, high speed modulators and high responsively coherent receivers to deliver high performance at 100G DP-QPSK / 200G DP-QPSK / 300G DP-8QAM / 400G DP-16QAM modulation format. With EDFA and VOA inside the TX optical path the output optical power is -10~1dBm tunable, at the 400G Gray Light mode (193.7THz) the output power is 4dBm. The 400G QSFP-DD ZR+ Pro is designed to 100G/200G long haul and 300G/400G Metro IP over DWDM applications without inline chromatic dispersion compensation.

Specifications
Form Factor
QSFP-DD
Distance

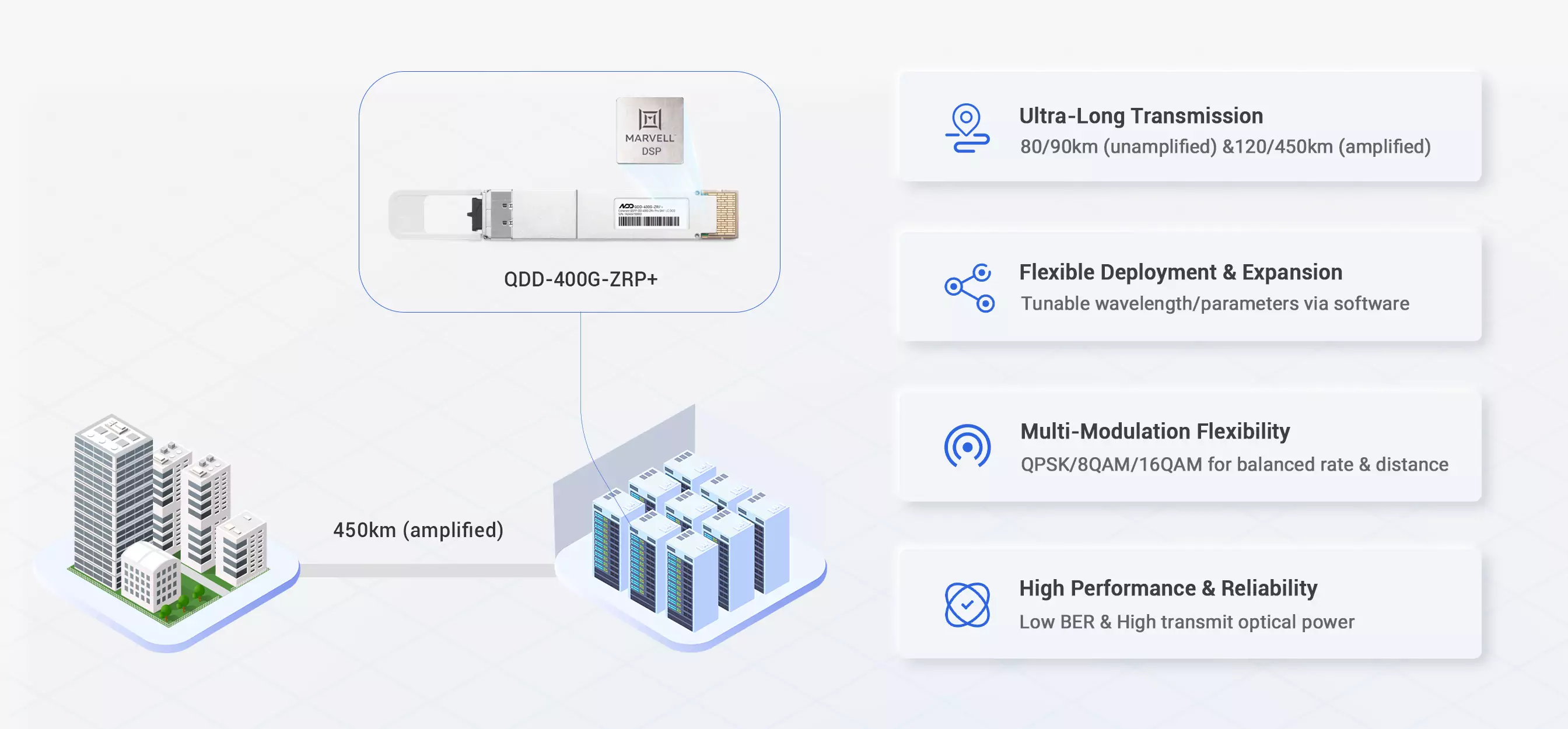

400G ZR:≤120km; 400G ZR+:≤450km; 400G ZR Gray:≤80km(unamplified); 400G ZR+ Gray:≤90km(unamplified); 300G ZR+:≤600km; 200G ZR+:≤1000km; 100G ZR+:≤2000km
Wavelength
1528.77~1567.13nm
Connector
Duplex LC
Power Consumption
≤22W (400ZR+)
Modulation format
DP-QPSK/DP-8QAM/DP-16QAM
FEC
OFEC, CFEC
Media
SMF
Channel Range (Tunable)
191.3 to 196.1 THz
Channel Grid
100GHz & 75GHz & 50Gz
Case Temperature(℃)
0 to 75°C (32 to 167°F)
Protocol
Open ZR+ MSA 2.0, OIF-400ZR-02.0, OIF-CMIS-05.2, OIF-C-CMIS-01.2, QSFP-DD-Hardware-Rev6.3, IEEE Std 802.3-2018
Questions & Answers
Ask a Question
Q:
What are the features of Coherent Optical Module?
A:
The coherent optical module adopts coherent detection technology, which can accurately measure the phase and amplitude of the received optical signals, thus improving the reception sensitivity and reducing the BER, and has the characteristics of high sensitivity, high bandwidth, long-distance transmission, etc. It is suitable for large-capacity data transmission.
Q:
What rate types are supported by the QSFP-DD 400G ZRP+ Optical Module?
A:

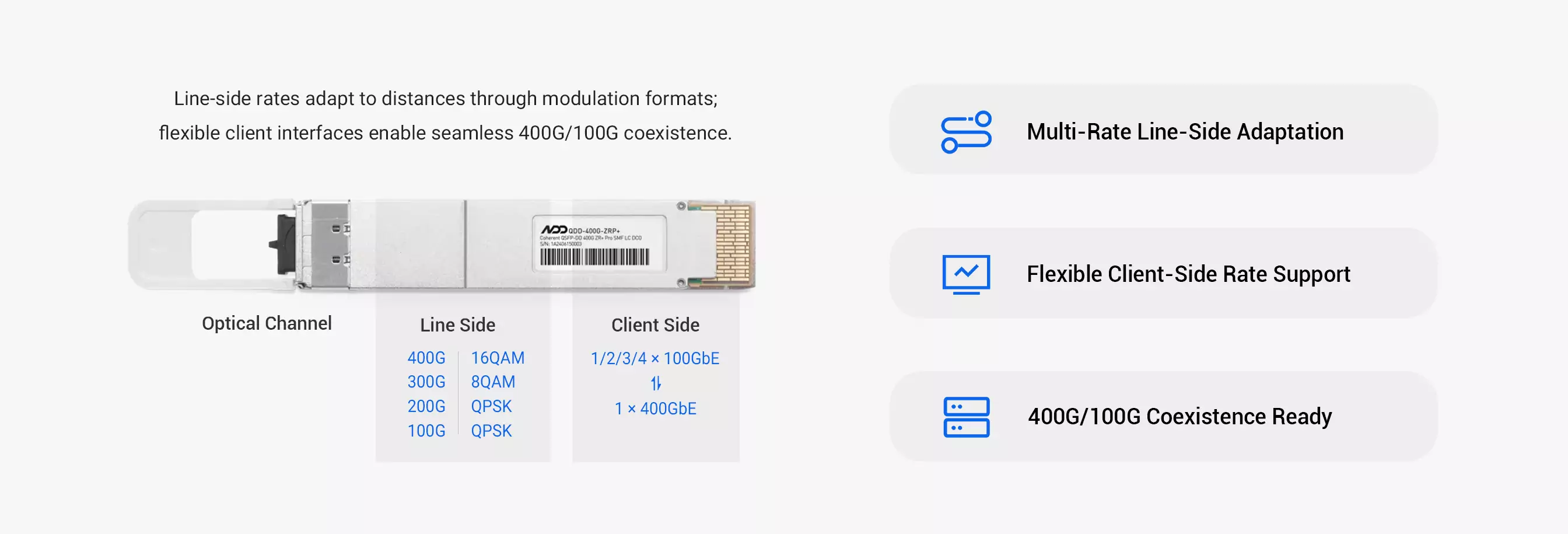

The module supports 100G/200G/300G/400G for line side rate and 1/2/3/4x100GbE or 1x400GbE for customer side rate.
Q:
What is the power consumption of the QSFP-DD 400G ZRP+ optical module?
A:
In 400GbE mode, the typical power consumption is 22W and the maximum power consumption is 22.5W.
