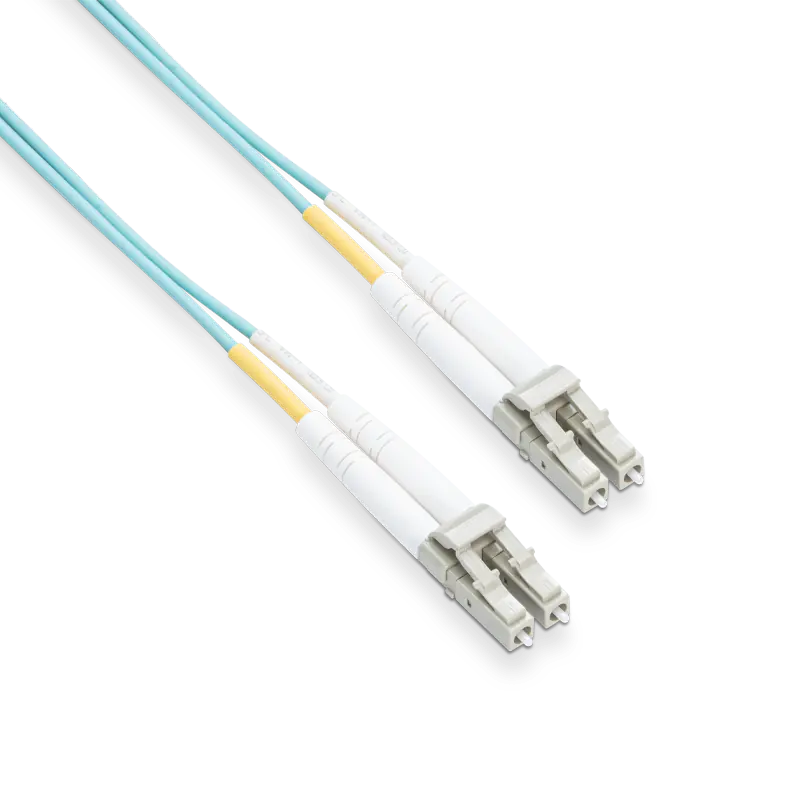

1m (3ft)LC UPC to LC UPC Duplex OM3 Multimode OFNP 2.0mm Fiber Optic Patch Cable

#34819
#34819
Model: M3LCUDOP
  Sold:  0
Available

  3-5 Business Days

Item Spotlights

  • PVC (Riser) Flame-retardant Jacket
  • Grade A Precision Zirconia Ferrule Connectors Ensure Low Loss
  • Easy Polarity Management with Duplex Clips
  • 7.5mm Min. Bend Radius
  • Optical Testing Ensures Network Performance
  • Meet TIA-604 (FOCIS) Standard
  • 30-Day Return, 1-Year Warranty, Lifetime After-sales Technical Support
1m (3ft) OM3 LC UPC to LC UPC Duplex  OFNP 2.0mm Fiber Optic Patch Cable
1m (3ft)LC UPC to LC UPC Duplex OM3 Multimode OFNP 2.0mm Fiber Optic Patch Cable
Description
Highlights
Resources

$ 4.9

Description
Highlights
Resources
Specifications
Connector Type
LC UPC to LC UPC
Fiber Grade
Bend Insensitive
Fiber Count
Duplex
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
10G Ethernet Distance
300m at 850nm
Insertion Loss
≤0.3dB
Return Loss
≥30dB
Min. Bend Radius(Fiber Core)
7.5mm
Min. Bend Radius(Fiber Cable)
20/10D (Dynamic/Static)
Attenuation at 850 nm
3.0dB/km
Attenuation at 1300 nm
1.0dB/km
Cable Jacket
OFNP
Cable Diameter
2.0mm
Polarity
A (Tx) to B (Rx)
Operating Temperature
-20 to 70°C (-4 to 158℉)
Storage Temperature
-40 to 80℃ (-40 to 176℉)
Application
Ceiling,Floor,In-cabinet
Compliance
TIA-604 (FOCIS)

Product Highlights

What We Supply
