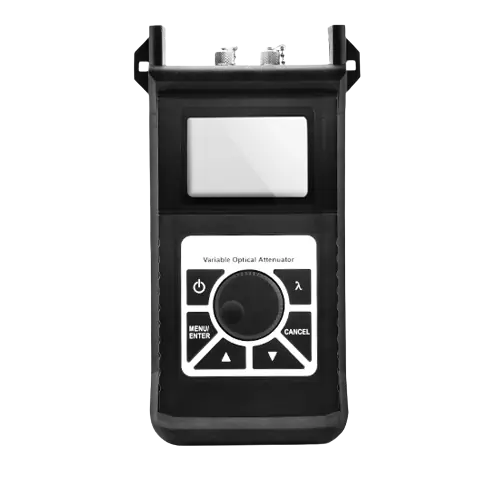

Singlemode Handheld Optical Variable Attenuator, 0.05dB

#34220
#34220
Model: HOVA-U
  Sold:  56
 In Stock 68
  Shipping Today
$ 702.10
request-free-sample
Request Free Sample

Item Spotlights

  • Low insertion loss & Low PDL
  • Wide attenuation range 2.5dB to 60dB
  • High stability & high reliability
Singlemode Handheld Optical Variable Attenuator, 0.05dB
Singlemode Handheld Optical Variable Attenuator, 0.05dB

$ 702.10

Features
Specifications
Applications
Questions & Answers
Customer Reviews
Features
Specifications
Applications
Questions & Answers
Customer Reviews
Product Highlights
Improve the stability of optical transmission link

Fiber optic attenuators can reduce the power level of an optical signal. It can control the intensity of the optical signal received by the optical receiving device within a certain range, effectively avoid the distortion of the optical receiver and equipment loss due to the super strong input optical power, and ensure the normal transmission of optical networks.

Guarantee long-range and high-quality transmission with accurate attenuation

The attenuators can ensure stable and long-distance transmission, which are built with metal-ion doped optical fiber and provide stable attenuation levels to prevent optical overload at the receiver.

What We Supply
Specifications
Attenuating wavelength Range
1260~1650nm
Fiber Model
9/125um SM
Optical Connector
2.5mm FC/SC/ST Connector
Resolution
0.05dB
Calibrated wavelengths
1310/1490/1550/1625nm
Measurement Range
2.5~60dB
Minimum Insertion Loss
<2.5dB
Linearity
±0.5dB
Repeating
±0.2dB
Attenuating Accuracy
±0.8dB
Back Reflection
>35dB(typical value40dB)
Max input
<20dBm
Rechargeable batteries
7.4V
Power supply adaptor
7~8.5V
Operation temperature
0 to 40°C (0 to 104°F)
Storage Temperature Range
-10 to 60°C (14 to 140°F)
Humidity
0~85% (non-condensation)
Weight
450g
