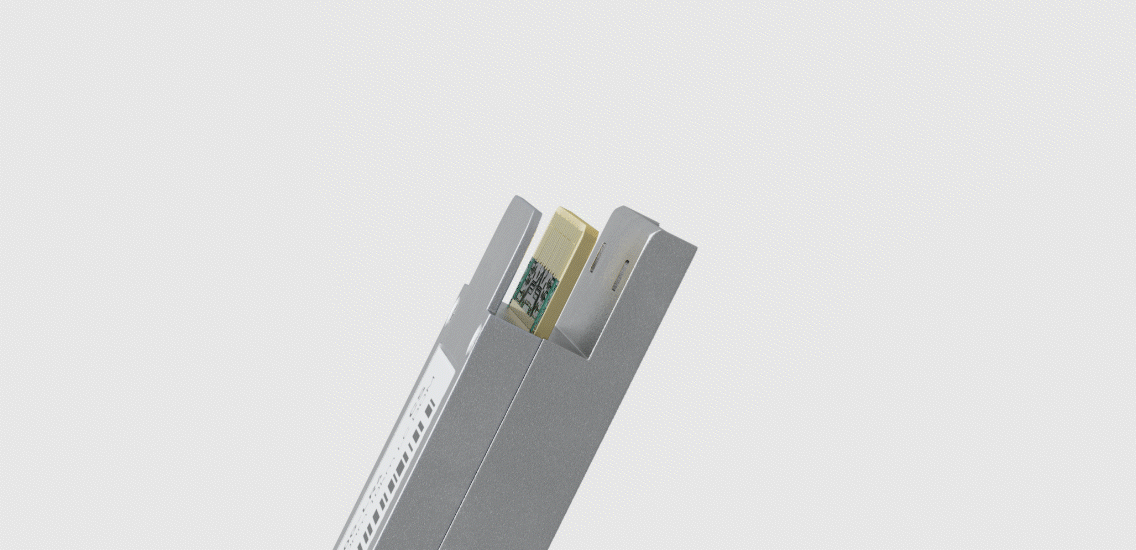

Generic Compatible 200GBASE-LR4 QSFP-DD PAM4 1310nm 10km DOM Duplex LC Transceiver Module for SMF

#32684
#32684
Model: QDD-200G-LR4
  Sold:  191
 In Stock 72
  Shipping Today
$ 4518.00
request-free-sample
Request Free Sample

Item Spotlights

  • Max Power Consumption ≤10.8W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3bs Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 3-Year Free Exchange, 3-Year Warranty, Lifetime After-sales Technical Support.
200GBASE-LR4 QSFP-DD PAM4 1310nm 10km SMF Module For Generic
Generic Compatible 200GBASE-LR4 QSFP-DD PAM4 1310nm 10km DOM Duplex LC Transceiver Module for SMF

$ 4518.00

Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Product Highlights
Lower Thermal Resistance and Better Material

NADDOD optimizes PCB routing to reduce EMI and supply voltage of functional circuits. The 200G QSFP-DD is made of high-quality materials, the package size is longer, the internal space is larger enough to dissipate heat.

More Advantages of NRZ Modulation

The 200G QSFP-DD transceviers adopt NRZ modulation cheme with total rate of transmission up to 212.5Gb/s, which can be downward-compatible with most QSFP transceviers. NRZ modulation cheme has lower power consumption than "PAM4" of QSFP56, can optimize OPEX and cooling efficiency of data centers, realizing low latency and BER of 1E-15 with FEC off.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Standardized Service
Quality Certification
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
What We Supply
Specifications
Product Type
QDD-200G-LR4
Vendor Name
NADDOD
Form Factor
QSFP-DD
Max Data Rate
212.5Gbps
Wavelength
1310nm
Transmission Distance
10km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-3.4~5.3dBm
Receiver Sensitivity
< -7.2dBm
Typical Power Consumption
≤10.8W
Commercial Temperature Range
0~70°C
DDM
Supported
EMC ( Electro Magnetic Compatibility)
Supported
Modulation Mode
PAM4
CDR
TX & RX Built-in CDR
Protocols
IEEE 802.3bs、SFF-8661、SFF-8636、QSFP-DD MSA、 CPRI, eCPRI
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic
