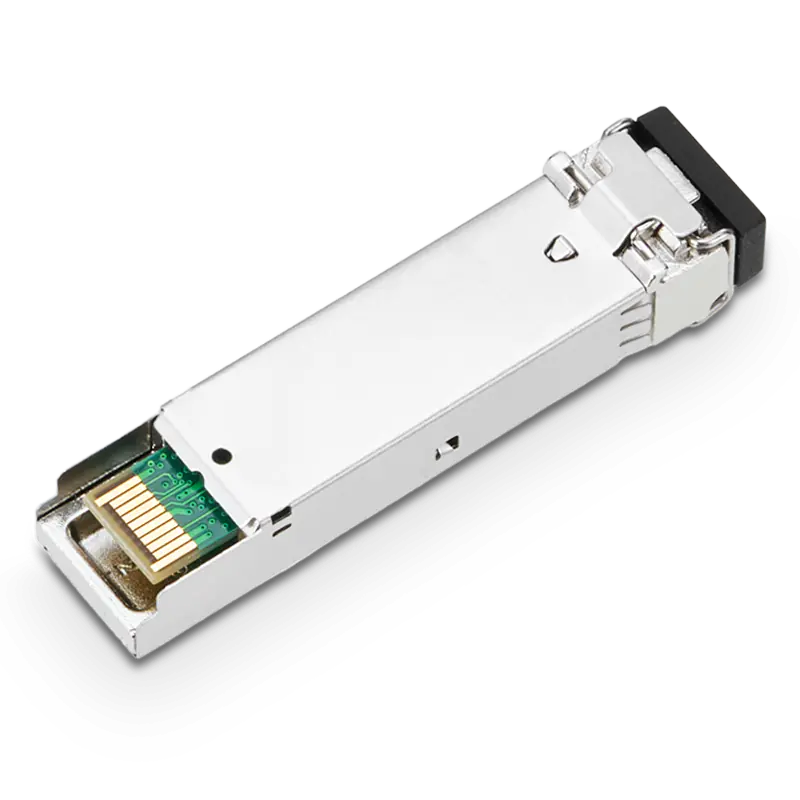

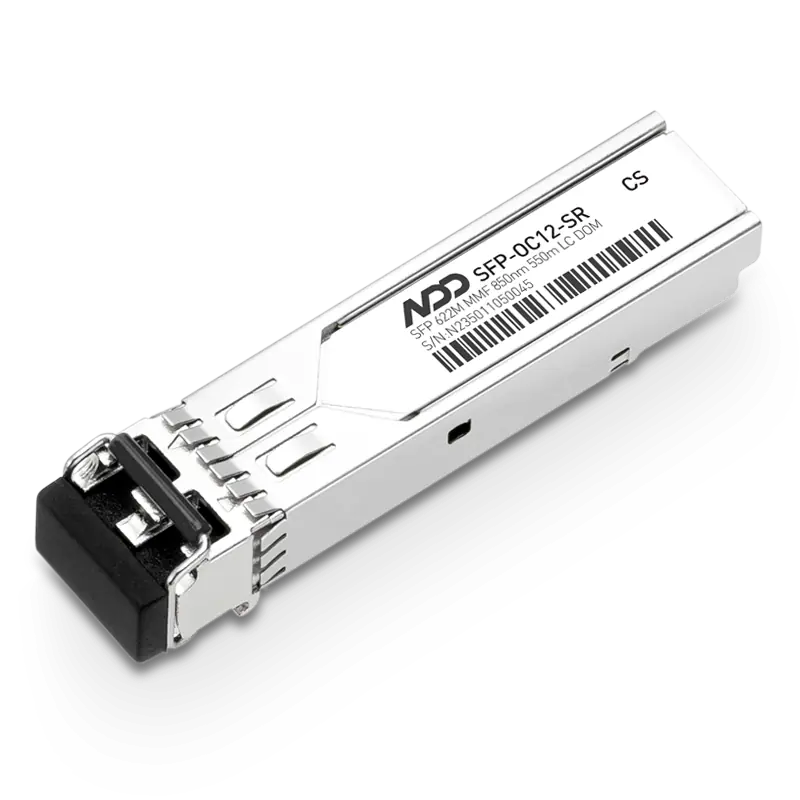

OC-12/STM-4 SFP 622BASE-SR 850nm 550m Duplex LC Transceiver Module for MMF

#32607
#32607
Model: SFP-OC12-SR
  Sold:  13
 In Stock 14
  Shipping Today
$ 24.00
request-free-sample
Request Free Sample

Item Spotlights

  • Max Power Consumption ≤0.83W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable SFP MSA Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 3-Year Free Exchange, 3-Year Warranty, Lifetime After-sales Technical Support.
622BASE-SR SFP 850nm 550m MMF Module
OC-12/STM-4 SFP 622BASE-SR 850nm 550m Duplex LC Transceiver Module for MMF

$ 24.00

Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Product Highlights
Unique advantages of NADDOD 155M transceiver

155M optical transceiver is featured with low power consumption. NADDOD SFP transceiver can help customers save more than 60% of the cost while ensuring first-class product quality depending on our top-class channel supply and R&D and production capacity.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Quality Certification
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
What We Supply
Specifications
Product Type
SFP-OC12-SR
Vendor Name
NADDOD
Form Factor
SFP
Max Data Rate
622Mbps
Wavelength
850nm
Transmission Distance
550m
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-9~-3dBm
Receiver Sensitivity
< -20dBm
Typical Power Consumption
≤0.83W
Commercial Temperature Range
0~70°C
DDM
Supported
EMC (Electro Magnetic Compatibility)
Supported
Protocols
SFF-8472, SFP MSA, CPRI, eCPRI
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic
no data
