100GBASE-U20-23 QSFP28 1280nm-TX/1310nm-RX 20km SMF Module for Cisco

Click to open expanded view

100GBASE-U20-23 QSFP28 1280nm-TX/1310nm-RX 20km SMF Module for Cisco
Global Local Service
Lifetime Technical Support

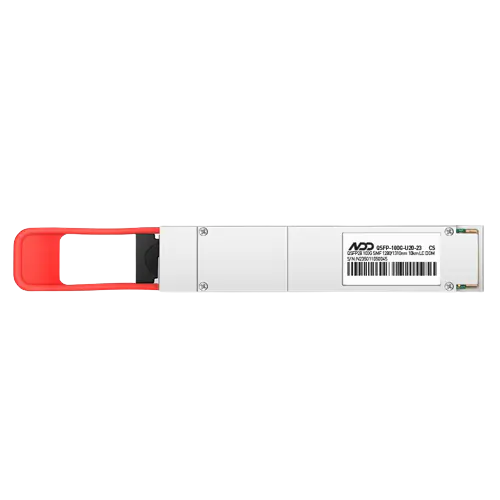

Cisco QSFP28-100G-BX20 Compatible 100GBASE-U20-23 QSFP28 1280nm-TX/1310nm-RX 20km DOM Simplex LC Transceiver Module for SMF

#32481
#32481
Model: QSFP-100G-U20-23
  Sold:  152
 In Stock :  210
  Shipping Today
$ 2069.00
Transceiver Types:
QSFP-100G-LR4
QSFP-100G-LR4-S
QSFP-100G-DR
QSFP-100G-CWDM4
QSFP-100G-ER4
QSFP-100G-SR4
QSFP-100G-PSM4
QSFP-100G-ZR4
QSFP-100G-FR
QSFP-100G-LR
QSFP-100G-SRBD
QSFP-100G-D20-32
QSFP-100G-U20-23
QSFP-100GE-ER4
QSFP-100GI-LR4
QSFP-100G-LR4
QSFP-100G-LR4-S
QSFP-100G-DR
QSFP-100G-CWDM4
QSFP-100G-ER4
QSFP-100G-SR4
QSFP-100G-PSM4
QSFP-100G-ZR4
QSFP-100G-FR
QSFP-100G-LR
QSFP-100G-SRBD
QSFP-100G-D20-32
QSFP-100G-U20-23
QSFP-100GE-ER4
QSFP-100GI-LR4
Brand:
Cisco
Arista
Juniper
HW
Generic
Cisco
Arista
Juniper
HW
Generic
request-free-sample
Request Free Sample

Item Spotlights

  • Max Power Consumption ≤5W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP28 MSA, IEEE 802.3bm Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 3-Year Free Exchange, 3-Year Warranty, Lifetime After-sales Technical Support.
100GBASE-U20-23 QSFP28 1280nm-TX/1310nm-RX 20km SMF Module for Cisco
Cisco QSFP28-100G-BX20 Compatible 100GBASE-U20-23 QSFP28 1280nm-TX/1310nm-RX 20km DOM Simplex LC Transceiver Module for SMF
NADDOD
NADDOD
Free Worldwide Shipping on Orders over $ 99

$ 2069.00

Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Connectivity Solutions
ID Part Number Description Unit Price
32481 QSFP-100G-U20-23 Cisco QSFP28-100G-BX20 Compatible 100GBASE-U20-23 QSFP28 1280nm-TX/1310nm-RX 20km DOM Simplex LC Transceiver Module for SMF $ 2069
35071 S2LCUD 1m (3ft) LC UPC to LC UPC Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable $ 4.10
Product Highlights
Application of NADDOD QSFP-100G-U20-23 transceiver

Applicable to 100G data center interconnection, campus network, telecommunications field, and cloud computing, etc.

Application of NADDOD QSFP-100G-U20-23 transceiver
Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Six professional transceiver performance tests
Standardized Service
Standardized Service
Top OEMs
NADDOD
NADDOD
NADDOD
NADDOD
NADDOD
NADDOD optical transceivers/DAC/AOC are compatible with over 140+ well-known brands of networking equipment on the market, such as Cisco, Juniper, Arista, and H3C.
NADDOD has set up a series of testing procedures to ensure the compatibility of optical transceivers, including TX/RX signal quality testing, reliability and stability testing, transmission rate and protocol testing, and spectral evaluation testing. Apart from this, we have a professional laboratory testing center to ensure that all optical transceivers are tested on real machines.
Quality Certification
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
What We Supply
research-and-development
testing
quality
production
Specifications
Product Type
QSFP-100G-U20-23
Vendor Name
NADDOD
Form Factor
QSFP28
Max Data Rate
103.125Gbps
Wavelength
1280nm-TX/1310-RX
Transmission Distance
20km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-4.3~4.5dBm
Receiver Sensitivity
<-14.5dBm
Typical Power Consumption
≤5W
Commercial Temperature Range
0~70°C
DDM
Supported
EMC ( Magnetic Compatibility)
Supported
Protocols
IEEE 802.3bm, SFF-8636, QSFP28 MSA
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic
no data
Questions & Answers
Ask a Question
no data
Customer Reviews
Resources
QSFP-100G-U20-23 Datasheet
