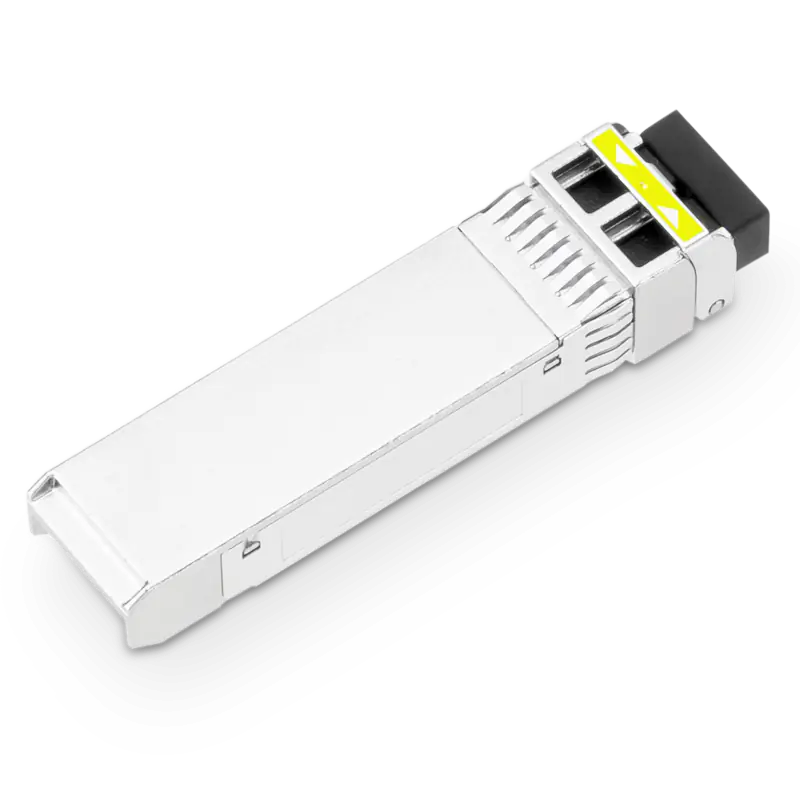

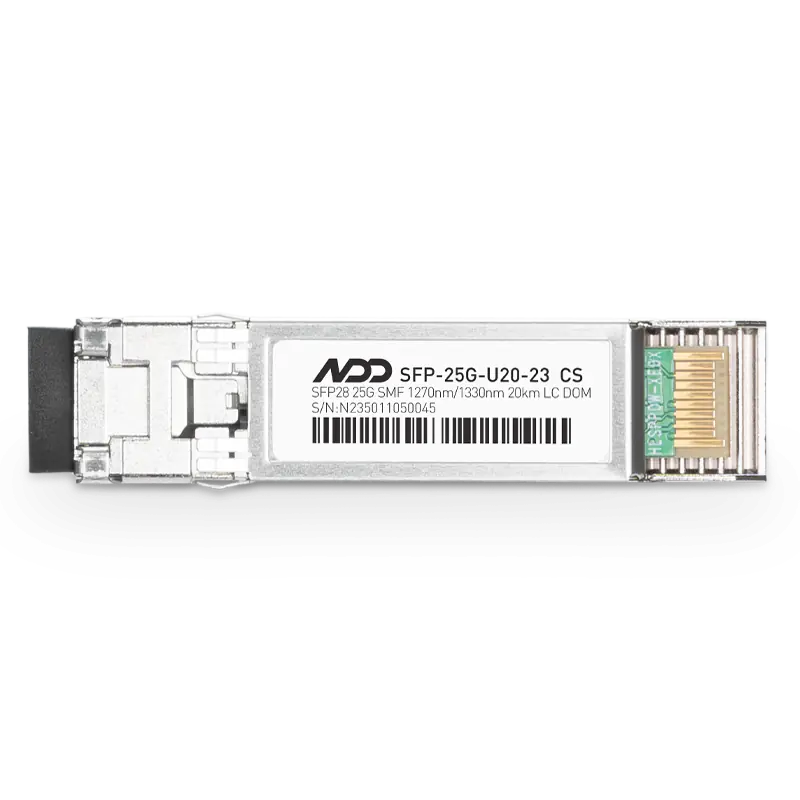

Cisco SFP-25GBX-U-20 Compatible 25GBASE-U20-23 SFP28 TX-1270nm/RX-1330nm 20km DOM Simplex LC Transceiver Module for SMF

#31256
#31256
Model: SFP-25G-U20-23
  Sold:  40
 In Stock 92
  Shipping Today
$ 97.00
request-free-sample
Request Free Sample

Item Spotlights

  • Max Power Consumption ≤1.75W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable SFP28 MSA Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Save Fiber Resources by Using Only One Fiber for Transmit and Receive.
  • 30-Day Free Return, 3-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
25GBASE-U20-23 SFP28 TX-1270nm/RX-1330nm 20km SMF Module for Cisco
Cisco SFP-25GBX-U-20 Compatible 25GBASE-U20-23 SFP28 TX-1270nm/RX-1330nm 20km DOM Simplex LC Transceiver Module for SMF

$ 97.00

Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Product Highlights
Unique advantages of NADDOD 25G transceiver

25G SFP28 optical module offers optimal input/output (I/O) performance and 2.5 times the fiber capacity of 10G Ethernet performance. The biggest advantage that NADDOD 25G Ethernet technology brings to the data center is the ability to maximize bandwidth and port density, saving operational costs by reducing the number of ToR switches and cables to provide the most energy efficient way to meet the growing demands of next-generation data center networks.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Compare Items
SFP-25G-U20-23

SFP-25G-U20-23

SFP-25G-U10-23

SFP-25G-U10-23

SFP-25G-D10-32

SFP-25G-D10-32

SFP-25G-D20-32

SFP-25G-D20-32

SFP-25G-U40-23

SFP-25G-U40-23

SFP-25G-D40-32

SFP-25G-D40-32

Wavelength
TX-1270nm/RX-1330nm
TX-1270nm/RX-1330nm
TX-1330nm/RX-1270nm
TX-1330nm/RX-1270nm
TX-1270nm/RX-1330nm
TX-1330nm/RX-1270nm
Transmission Distance
20km
10km
10km
20km
40km
40km
Media
SMF
SMF
SMF
SMF
SMF
SMF
TX Power
-7~2dBm
-7~2dBm
-7~2dBm
-7~2dBm
-3~6dBm
-3~6dBm
Typical Power Consumption
≤1.75W
≤1.75W
≤1.75W
≤1.75W
≤1.75W
≤1.75W
Commercial Temperature Range
0~70°C
0~70°C
0~70°C
0~70°C
0~70°C
0~70°C
Quality Certification
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
What We Supply
Specifications
Product Type
SFP-25G-U20-23
Vendor Name
NADDOD
Form Factor
SFP28
Max Data Rate
25.78Gbps
Wavelength
TX-1270nm/RX-1330nm
Transmission Distance
20km
Connector
Simplex LC
Media
SMF
Transmitter Type
1270nm DFB
Receiver Type
PIN
TX Power
-7~2dBm
Receiver Sensitivity
< -11.5dBm
Typical Power Consumption
≤1.75W
Commercial Temperature Range
0~70°C
DDM
Supported
EMC ( Electro Magnetic Compatibility)
Supported
Modulation Mode
NRZ
CDR
TX & RX Built-in CDR
Protocols
SFF-8472, SFF-8431, SFF-8432, SFP28 MSA, CPRI, eCPRI
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic
