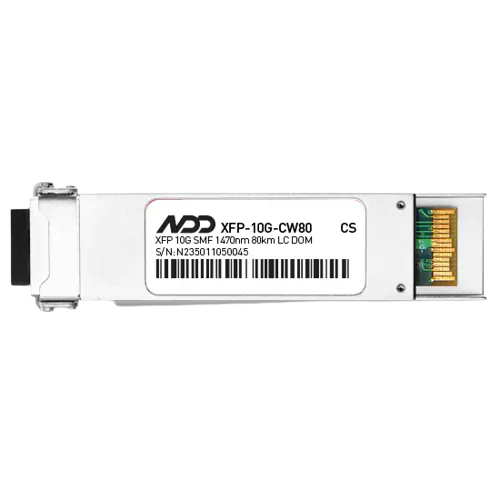

Cisco CWDM-XFP-1470-80 Compatible 10GBASE-CW80 XFP 1470nm 80km Duplex LC Transceiver Module for SMF

#31152
#31152
Model: XFP-10G-CW80
  Sold:  0
Available

  3-5 Business Days
$ 356.00
request-free-sample
Request Free Sample

Item Spotlights

  • Max Power Consumption ≤1.5W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable XFP MSA, IEEE802.3ae Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Significantly Improve the Flexibility, Economy and Reliability of Networking.
  • 30-Day Free Return, 3-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
10GBASE-CW80 XFP 1470~1610nm 80km SMF Module for Cisco
Cisco CWDM-XFP-1470-80 Compatible 10GBASE-CW80 XFP 1470nm 80km Duplex LC Transceiver Module for SMF

$ 356.00

Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Product Highlights
Unique advantages of NADDOD 10G transceiver

10G optical transceiver is featured with high-density and mature technology which is widely used in data center interconnection solutions . NADDOD SFP+ transceiver can help customers save more than 60% of the cost while ensuring first-class product quality depending on our top-class channel supply and R&D and production capacity.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Quality Certification
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
What We Supply
Specifications
Product Type
XFP-10G-CW80
Vendor Name
NADDOD
Form Factor
XFP
Max Data Rate
10.3125Gbps
Wavelength
1470nm
Transmission Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
0~4dBm
Receiver Sensitivity
< -23dBm
Typical Power Consumption
≤1.5W
Commercial Temperature Range
0~70°C
DDM
Supported
EMC (Electro Magnetic Compatibility)
Supported
Protocols
IEEE 802.3ae, SFF-8472, SFF-8431、XFP MSA, CPRI, eCPRI
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic
