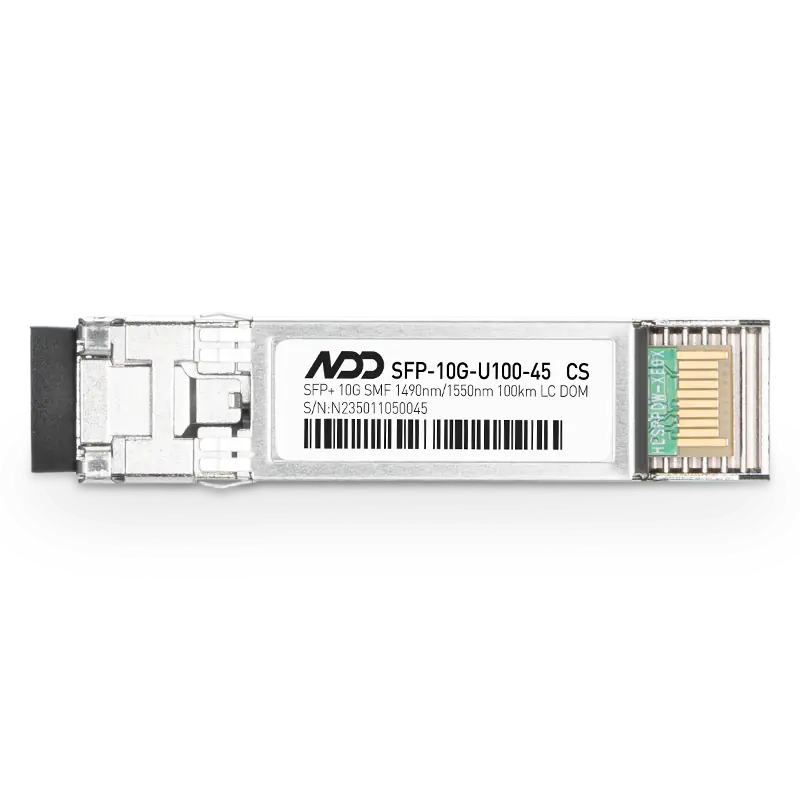

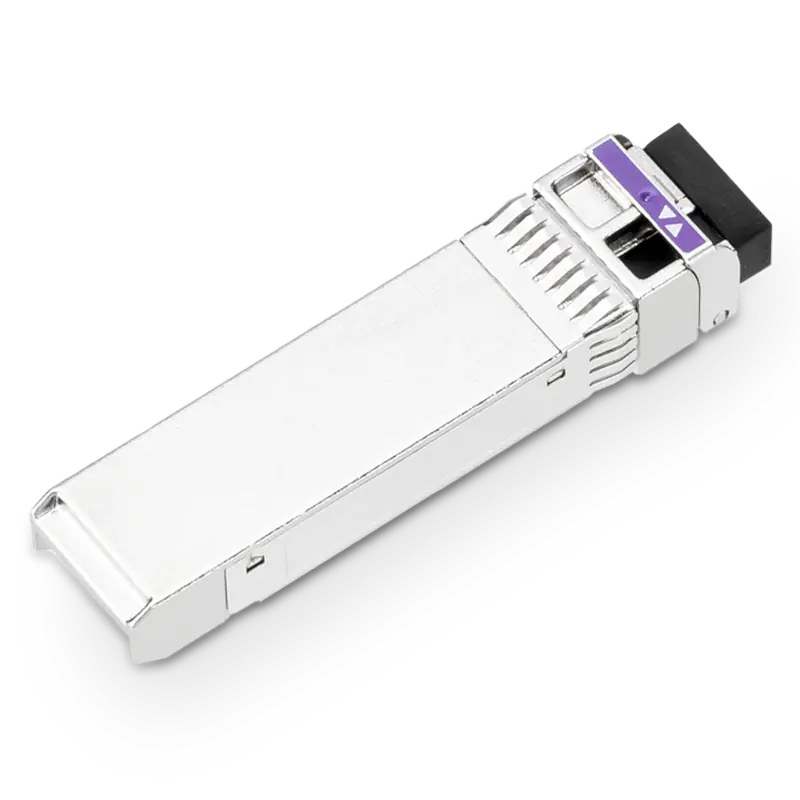

Cisco SFP-10G-BX100U Compatible 10GBASE-U100-45 SFP+ TX-1490nm/RX-1550nm 100km DOM Simplex LC Transceiver Module for SMF

#28412
#28412
Model: SFP-10G-U100-45
  Sold:  457
 In Stock 415
  Shipping Today

Item Spotlights

  • Max Power Consumption ≤1.8W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable SFP + MSA, IEEE802.3z Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Save Fiber Resources by Using Only One Fiber for Transmit and Receive.
  • 30-Day Free Return, 3-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
10GBASE-U100-45 SFP+ TX-1490nm/RX-1550nm 100km SMF Module for Cisco
Cisco SFP-10G-BX100U Compatible 10GBASE-U100-45 SFP+ TX-1490nm/RX-1550nm 100km DOM Simplex LC Transceiver Module for SMF
Description
Highlights
Resources

$ 1439

Description
Highlights
Resources
Specifications
Product Type
SFP-10G-U100-45
Vendor Name
NADDOD
Form Factor
SFP+
Max Data Rate
10.3125Gbps
Wavelength
TX-1490nm/RX-1550nm
Transmission Distance
100km
Connector
Simplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
1~6dBm
Receiver Sensitivity
< -25dBm
Typical Power Consumption
≤1.8W
Commercial Temperature Range
0~70°C
DDM
Supported
EMC ( Electro Magnetic Compatibility)
Supported
Protocols
IEEE 802.3z, SFF-8472, SFP+ MSA, CPRI, eCPRI
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic
Compare Items
SFP-10G-U100-45

SFP-10G-U100-45

SFP-10G-U10-23

SFP-10G-U10-23

SFP-10G-U40-23

SFP-10G-U40-23

SFP-10G-U60-23

SFP-10G-U60-23

SFP-10G-U80-45

SFP-10G-U80-45

Wavelength
TX-1490nm/RX-1550nm
TX-1270nm/RX-1330nm
TX-1270nm/RX-1330nm
TX-1270nm/RX-1330nm
TX-1490nm/RX-1550nm
Transmission Distance
100km
10km
40km
60km
80km
Media
SMF
SMF
SMF
SMF
SMF
TX Power
1~6dBm
-6~-1dBm
0~5dBm
0~5dBm
0~5dBm
Typical Power Consumption
≤1.8W
≤1.5W
≤1.5W
≤1.5W
≤1.8W
Commercial Temperature Range
0~70°C
0~70°C
0~70°C
0~70°C
0~70°C

Product Highlights

Unique advantages of NADDOD 10G BIDI transceiver

10G optical transceiver is featured with high-density and mature technology which is widely used in data center interconnection solutions . NADDOD SFP+ transceiver can help customers save more than 60% of the cost while ensuring first-class product quality depending on our top-class channel supply and R&D and production capacity.

Unique advantages of NADDOD 10G BIDI transceiver
Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Quality Certification
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
