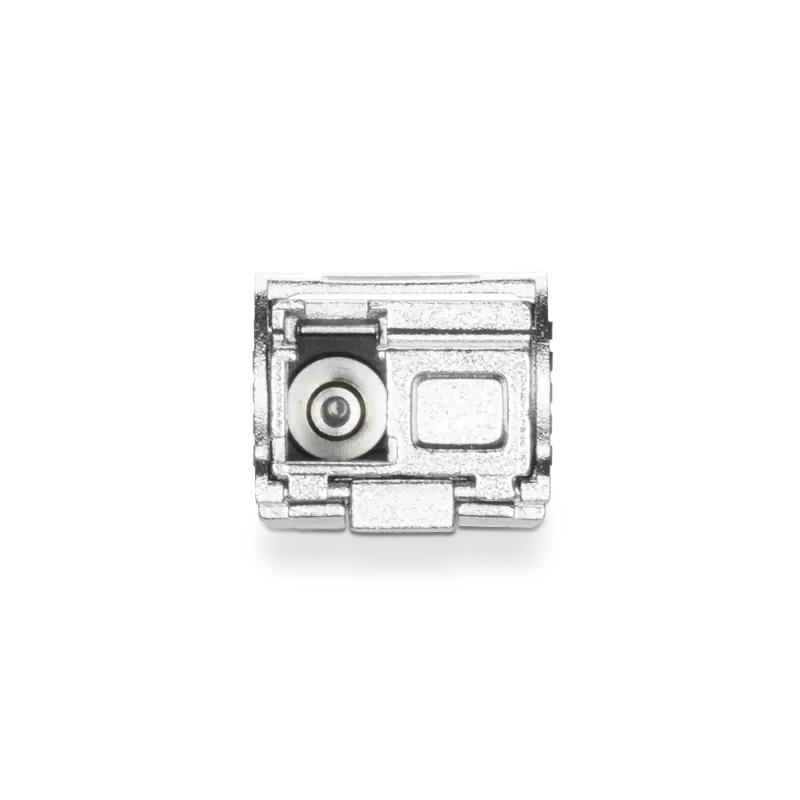

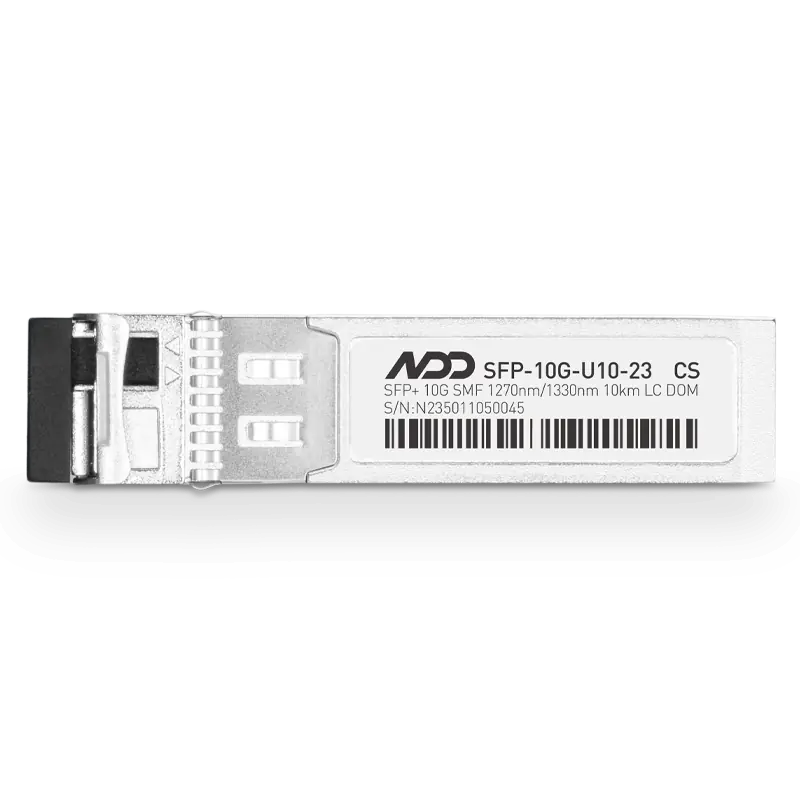

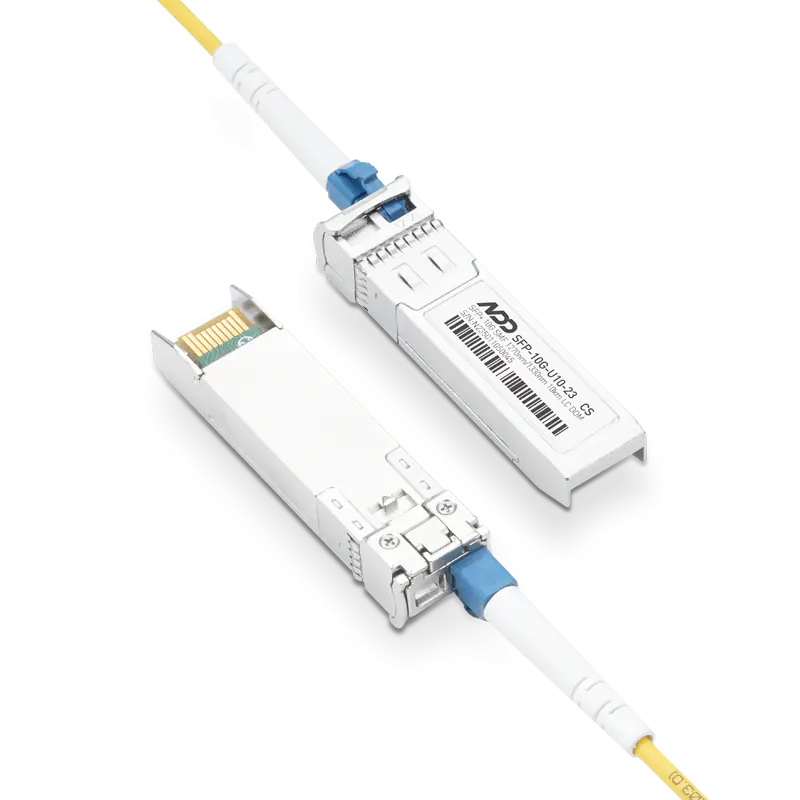

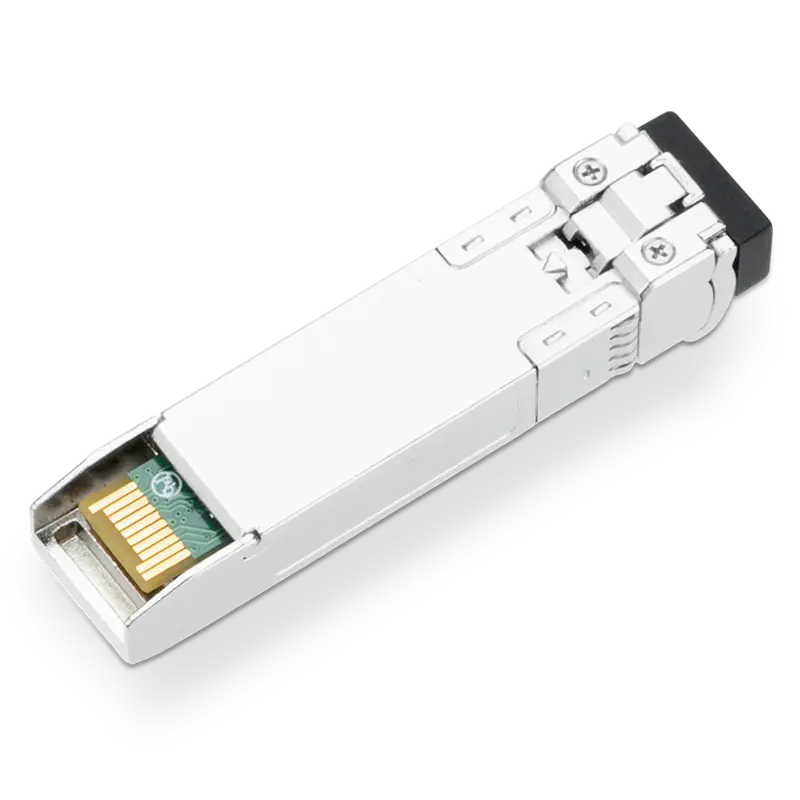

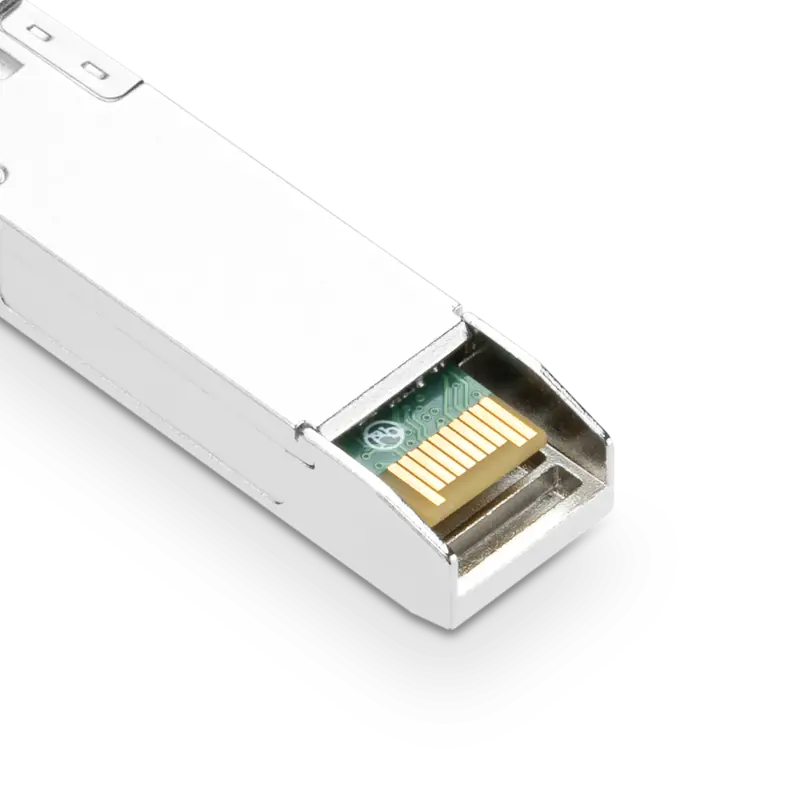

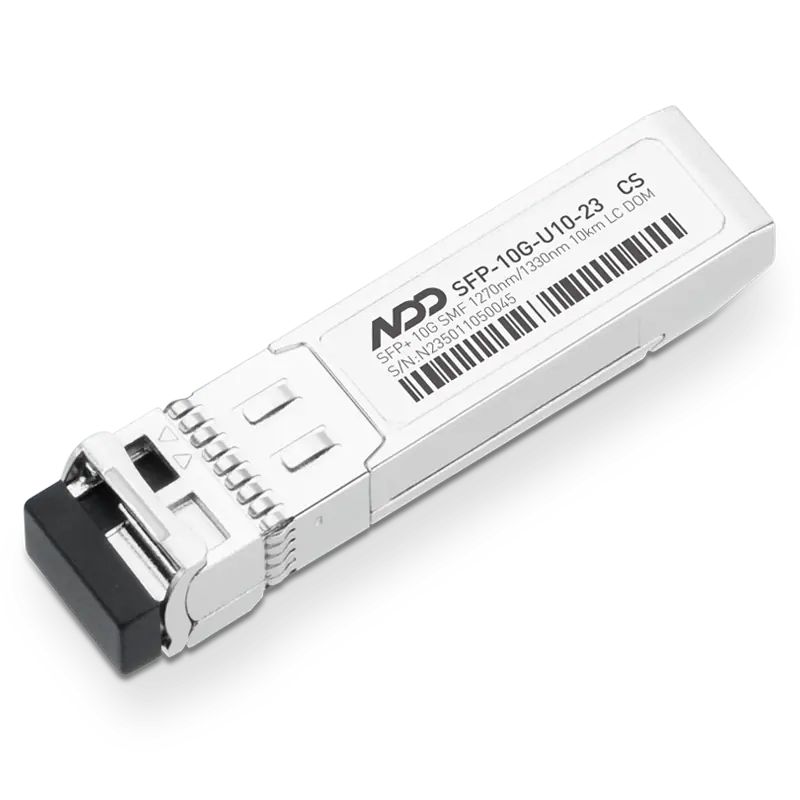

Cisco SFP-10G-BXU Compatible 10GBASE-U10-23 SFP+ TX-1270nm/RX-1330nm 10km DOM Simplex LC Transceiver Module for SMF

#28345
#28345
Model: SFP-10G-U10-23
  Sold:  234
 In Stock 435
  Shipping Today
$ 33.00
request-free-sample
Request Free Sample

Item Spotlights

  • Max Power Consumption ≤1.5W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable SFP + MSA, IEEE802.3z Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Save Fiber Resources by Using Only One Fiber for Transmit and Receive.
  • 30-Day Free Return, 3-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
10GBASE-U10-23 SFP+ TX-1270nm/RX-1330nm 10km SMF Module for Cisco
Cisco SFP-10G-BXU Compatible 10GBASE-U10-23 SFP+ TX-1270nm/RX-1330nm 10km DOM Simplex LC Transceiver Module for SMF

$ 33.00

Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Features
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Product Highlights
Unique advantages of NADDOD 10G BIDI transceiver

10G optical transceiver is featured with high-density and mature technology which is widely used in data center interconnection solutions . NADDOD SFP+ transceiver can help customers save more than 60% of the cost while ensuring first-class product quality depending on our top-class channel supply and R&D and production capacity.

Six professional transceiver performance tests

NADDOD has a full range of professional testing equipments for testing various parameters of products to ensure high performance and quality of optical transmission stability.

Compare Items
SFP-10G-U10-23

SFP-10G-U10-23

SFP-10G-U40-23

SFP-10G-U40-23

SFP-10G-U60-23

SFP-10G-U60-23

SFP-10G-U80-45

SFP-10G-U80-45

SFP-10G-U100-45

SFP-10G-U100-45

Wavelength
TX-1270nm/RX-1330nm
TX-1270nm/RX-1330nm
TX-1270nm/RX-1330nm
TX-1490nm/RX-1550nm
TX-1490nm/RX-1550nm
Transmission Distance
10km
40km
60km
80km
100km
Media
SMF
SMF
SMF
SMF
SMF
TX Power
-6~-1dBm
0~5dBm
0~5dBm
0~5dBm
1~6dBm
Typical Power Consumption
≤1.5W
≤1.5W
≤1.5W
≤1.8W
≤1.8W
Commercial Temperature Range
0~70°C
0~70°C
0~70°C
0~70°C
0~70°C
Quality Certification
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
What We Supply
Specifications
Product Type
SFP-10G-U10-23
Vendor Name
NADDOD
Form Factor
SFP+
Max Data Rate
10.3125Gbps
Wavelength
TX-1270nm/RX-1330nm
Transmission Distance
10km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-6~1dBm
Receiver Sensitivity
< -14.4dBm
Typical Power Consumption
≤1.5W
Commercial Temperature Range
0~70°C
DDM
Supported
EMC ( Electro Magnetic Compatibility)
Supported
Protocols
IEEE 802.3z, SFF-8472, SFP+ MSA, CPRI, eCPRI
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic
